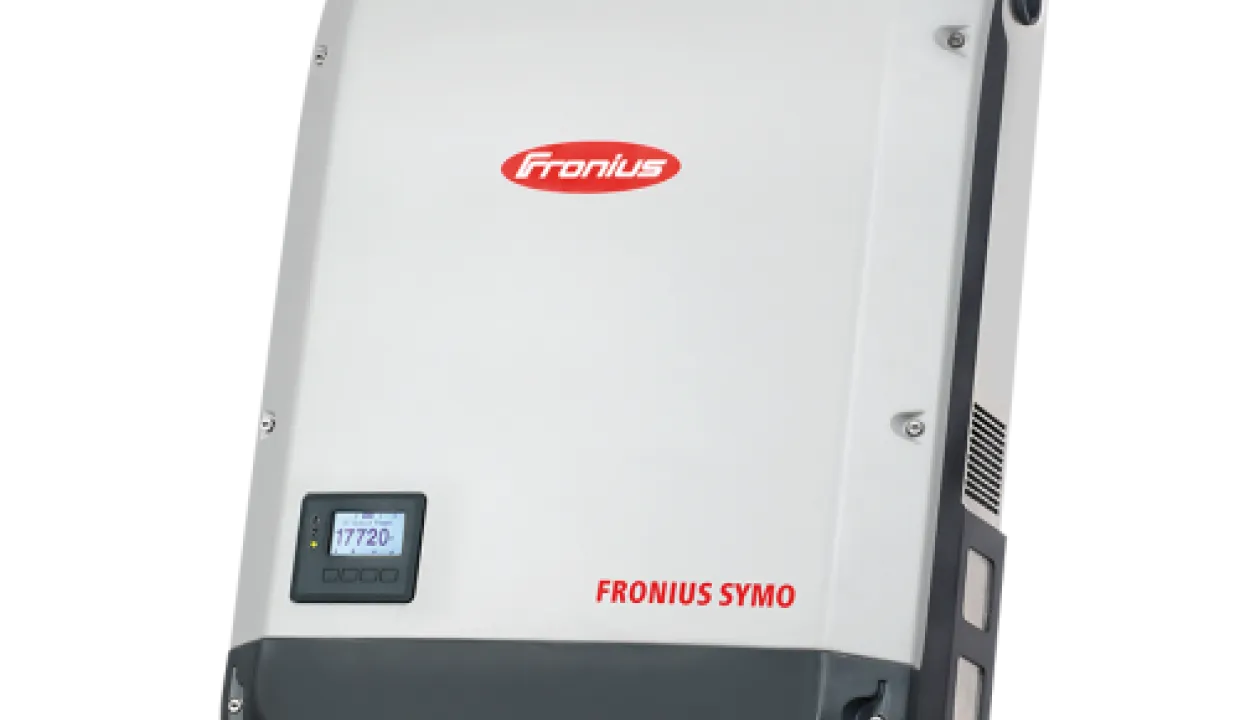

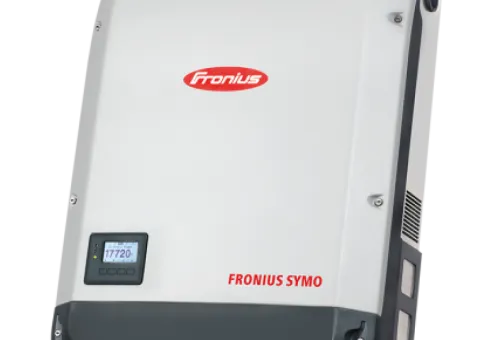

Fronius Symo 10.0-3-M grid inverter
129,966 ₴
Published 4 days ago by Solar-Tech
129,966 ₴
In Generators category
вул. Стеценка, 14/44, Київ, Україна
Get directions →
35 item views
The Fronius Symo 10.0-3-M grid inverter is a three-phase transformerless inverter for systems of any size. High system voltage, a wide input voltage range and two MPPT trackers provide maximum flexibility in system design. A standard internet connection interface via WLAN or Ethernet and ease of integrating third-party components make the Fronius Symo one of the most communicative inverters on the market.
Technical specifications:
DC input characteristics
Max. input current, (A)
27.0 / 16.5
Max. short-circuit current, (A)
43.5
Min. input voltage, (V)
200
Min. voltage for inverter start-up, (V)
200
Nominal voltage, (V)
600
Max. voltage, (V)
1000
Maximum power point tracking range, (V)
270 - 800
No. of MPPT trackers / No. of inputs
2 / 3+3
AC output characteristics
Rated output power, (W)
10000
Max. output power, (VA)
10000
Max. AC output current, (A)
14.4
AC output voltage, (V)
380/220 (+20 % / -30 %)
AC output frequency, (Hz)
50 / 60 ±5
THDi
< 1.8 %
cos φ
0.85 - 1
Other characteristics
Dimensions W×H×D, (mm)
725×510×225
Weight, (kg)
34.8
Operating temperature range, (ºC)
-25 ... +60
Protection class IP
IP65
Own consumption, night, (W)
< 1
Features:
-
Suitable for all module technologies because it has galvanic isolation;
-
Has 2 MPPT trackers, which allows placing solar panel arrays on two different planes while maintaining their maximum efficient operation;
-
Simple hanging system for quick and easy installation;
-
Low weight and compact dimensions;
-
Possibility of indoor and outdoor installation (Protection class IP 65);
-
Integrated data logging function;
-
Easy internet connection via WLAN and Ethernet;
-
High device efficiency.
Published on 2026/10/11
Description
The Fronius Symo 10.0-3-M grid inverter is a three-phase transformerless inverter for systems of any size. High system voltage, a wide input voltage range and two MPPT trackers provide maximum flexibility in system design. A standard internet connection interface via WLAN or Ethernet and ease of integrating third-party components make the Fronius Symo one of the most communicative inverters on the market.
Technical specifications:
DC input characteristics
Max. input current, (A)
27.0 / 16.5
Max. short-circuit current, (A)
43.5
Min. input voltage, (V)
200
Min. voltage for inverter start-up, (V)
200
Nominal voltage, (V)
600
Max. voltage, (V)
1000
Maximum power point tracking range, (V)
270 - 800
No. of MPPT trackers / No. of inputs
2 / 3+3
AC output characteristics
Rated output power, (W)
10000
Max. output power, (VA)
10000
Max. AC output current, (A)
14.4
AC output voltage, (V)
380/220 (+20 % / -30 %)
AC output frequency, (Hz)
50 / 60 ±5
THDi
< 1.8 %
cos φ
0.85 - 1
Other characteristics
Dimensions W×H×D, (mm)
725×510×225
Weight, (kg)
34.8
Operating temperature range, (ºC)
-25 ... +60
Protection class IP
IP65
Own consumption, night, (W)
< 1
Features:
-
Suitable for all module technologies because it has galvanic isolation;
-
Has 2 MPPT trackers, which allows placing solar panel arrays on two different planes while maintaining their maximum efficient operation;
-
Simple hanging system for quick and easy installation;
-
Low weight and compact dimensions;
-
Possibility of indoor and outdoor installation (Protection class IP 65);
-
Integrated data logging function;
-
Easy internet connection via WLAN and Ethernet;
-
High device efficiency.
