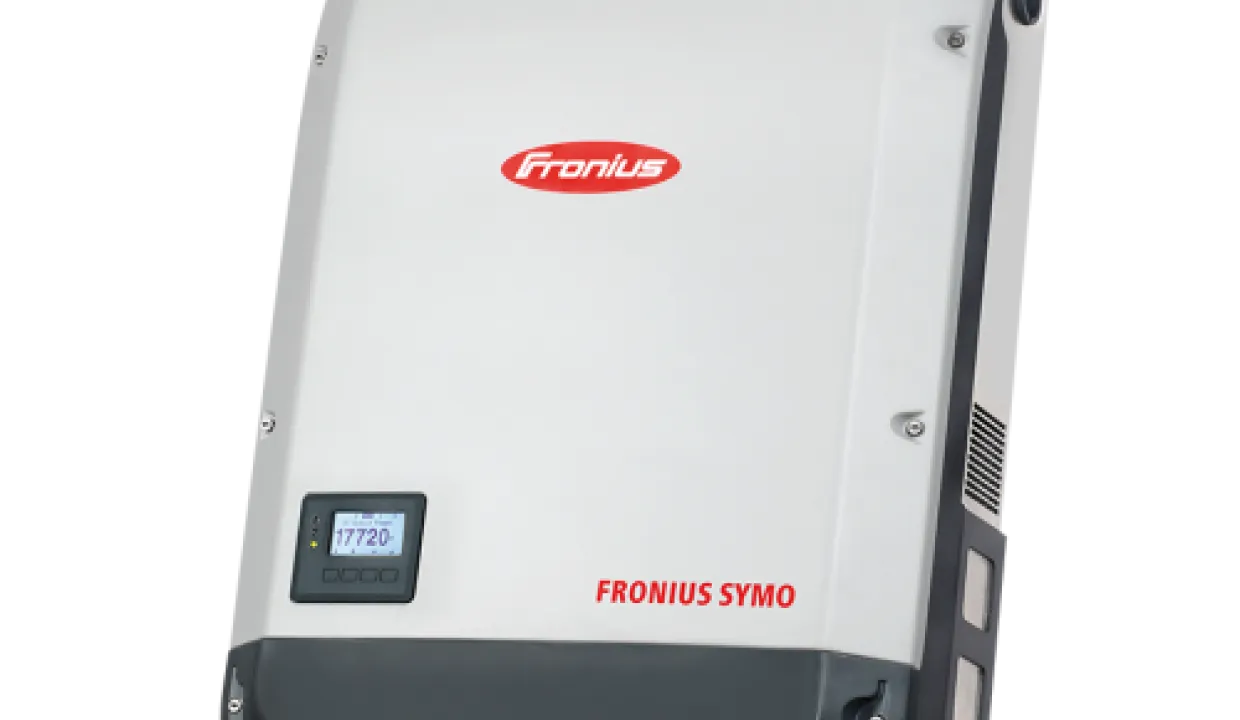

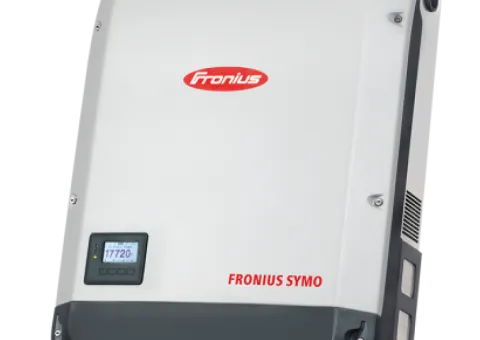

Fronius Symo 20.0-3-M grid inverter
161,585 ₴
Published 4 days ago by Solar-Tech
161,585 ₴
In Generators category
вул. Стеценка, 14/44, Київ, Україна
Get directions →
26 item views
The Fronius Symo 20.0-3-M grid inverter is a three-phase transformer-less inverter for systems of any size. High system voltage, a wide input voltage range and two MPPT trackers provide maximum flexibility in system design. Standard Internet connectivity via WLAN or Ethernet and easy integration of third-party components make the Fronius Symo one of the most communicative inverters on the market.
Technical specifications:
DC input characteristics
Max. input current (A)
33.0 / 27.0
Max. short-circuit current (A)
51.0
Min. input voltage (V)
200
Min. voltage for inverter start-up (V)
200
Nominal voltage (V)
600
Max. voltage (V)
1000
MPPT operating voltage range (V)
420 - 800
Number of MPPT trackers / Number of inputs
2 / 3+3
AC output characteristics
Nominal output power (W)
20000
Max. output power (VA)
20000
Max. AC output current (A)
28.9
AC output voltage (V)
380/220 (+20 % / -30 %)
AC output frequency (Hz)
50 / 60 ±5
THDi
< 1.3 %
cos phi
0.85 - 1
Other specifications
Dimensions W×H×D (mm)
725×510×225
Weight (kg)
43.4
Operating temperature range (ºC)
-25 ... +60
Protection class IP
IP65
Self-consumption, night (W)
< 1
Features:
-
Suitable for all module technologies as it has galvanic isolation;
-
Has 2 MPPT trackers, which allows placing arrays of solar panels on two different planes while maintaining their maximum efficiency;
-
Simple hanging system for quick and easy installation;
-
Low weight and compact size;
-
Possibility for indoor and outdoor installation (Protection class IP 65);
-
Integrated data logging function;
-
Easy Internet connection via WLAN and Ethernet;
-
High device efficiency.
