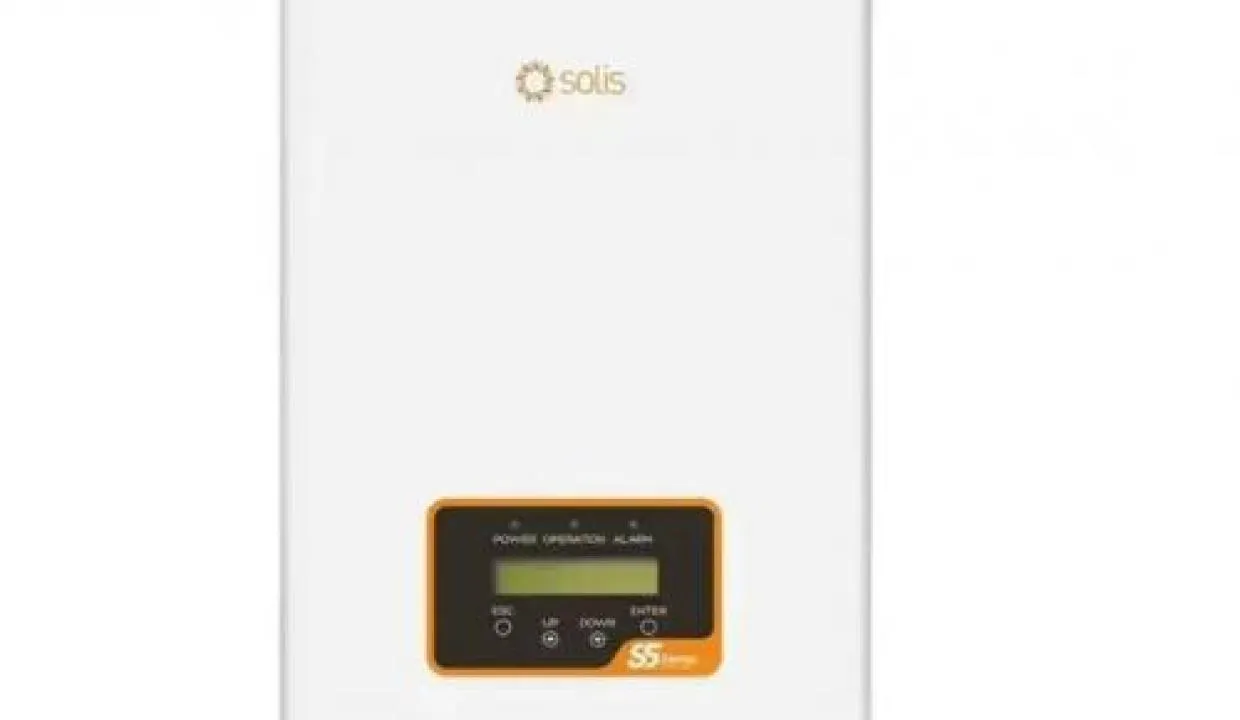

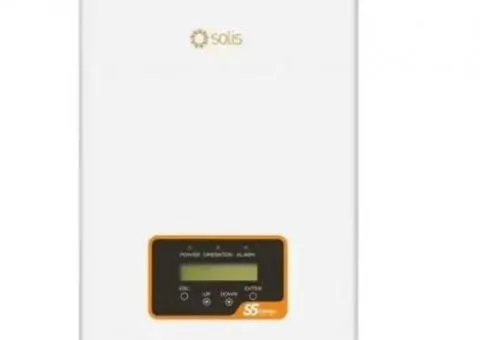

Grid three-phase inverter Solis S5-GR3P10K
51,370 ₴
Published 4 days ago by Solar-Tech
51,370 ₴
In Generators category
вул. Стеценка, 14/44, Київ, Україна
Get directions →
18 item views
Solis S5-GR3P10K is a high-efficiency three-phase grid inverter with a power of 10 kW, designed for commercial and private solar power plants. Thanks to 2 independent MPPT trackers, a wide input voltage range and modern protection systems, it provides stable operation, high performance and maximum energy generation even in variable climatic conditions.
Main advantages:
-
Power 10,000 W — optimal for small commercial and private sites
-
2 MPPT trackers — flexible connection of two panel arrays, efficient generation under different illumination
-
High efficiency up to 98.7% — minimal conversion losses
-
Wide MPPT voltage range — from 200 to 1000 V, nominal voltage 600 V
-
Built-in protections: from overvoltage (AC/DC, type II), short circuit, arc faults (AFCI), anti-PID (optional)
-
Compatibility with monitoring — RS485, optional Wi-Fi/GPRS, convenient management via the SolisCloud platform
-
Fanless design — natural convection, low noise level, long service life
-
Protection class IP65 — reliable operation both indoors and outdoors
Applications:
-
Small and medium commercial buildings
-
Private solar power plants
-
Feed-in tariff systems
-
Compact solar projects
Technical specifications:
Model
Solis S5-GR3P10K
Max. input power, (kW)
12
Max. input voltage, (V)
1100
Rated voltage, (V)
600
Starting voltage, (V)
180
Operating MPPT range, (V)
200-1000
Max. input current, (A)
16+16
Number of MPPTs / number of inputs
2/2
Output (AC)
Rated active output power, (kW)
10
Max. rated power, (kVA)
11
Rated grid voltage, (V)
3/N/PE, 220/380V, 230/400V
Rated output frequency, (Hz)
50/60
Type of grid connection
Three-phase
Rated output current, (A)
15.2
Max. output current, (A)
18.2
Rated power factor and adjustment range, (cosФ)
>0.99 (from -0.8 to +0.8)
Total harmonic distortion of current (THDi)
Read morePublished on 2026/10/11
Description
Solis S5-GR3P10K is a high-efficiency three-phase grid inverter with a power of 10 kW, designed for commercial and private solar power plants. Thanks to 2 independent MPPT trackers, a wide input voltage range and modern protection systems, it provides stable operation, high performance and maximum energy generation even in variable climatic conditions.
Main advantages:
-
Power 10,000 W — optimal for small commercial and private sites
-
2 MPPT trackers — flexible connection of two panel arrays, efficient generation under different illumination
-
High efficiency up to 98.7% — minimal conversion losses
-
Wide MPPT voltage range — from 200 to 1000 V, nominal voltage 600 V
-
Built-in protections: from overvoltage (AC/DC, type II), short circuit, arc faults (AFCI), anti-PID (optional)
-
Compatibility with monitoring — RS485, optional Wi-Fi/GPRS, convenient management via the SolisCloud platform
-
Fanless design — natural convection, low noise level, long service life
-
Protection class IP65 — reliable operation both indoors and outdoors
Applications:
-
Small and medium commercial buildings
-
Private solar power plants
-
Feed-in tariff systems
-
Compact solar projects
Technical specifications:
Model
Solis S5-GR3P10K
Max. input power, (kW)
12
Max. input voltage, (V)
1100
Rated voltage, (V)
600
Starting voltage, (V)
180
Operating MPPT range, (V)
200-1000
Max. input current, (A)
16+16
Number of MPPTs / number of inputs
2/2
Output (AC)
Rated active output power, (kW)
10
Max. rated power, (kVA)
11
Rated grid voltage, (V)
3/N/PE, 220/380V, 230/400V
Rated output frequency, (Hz)
50/60
Type of grid connection
Three-phase
Rated output current, (A)
15.2
Max. output current, (A)
18.2
Rated power factor and adjustment range, (cosФ)
>0.99 (from -0.8 to +0.8)
Total harmonic distortion of current (THDi)
Attributes
