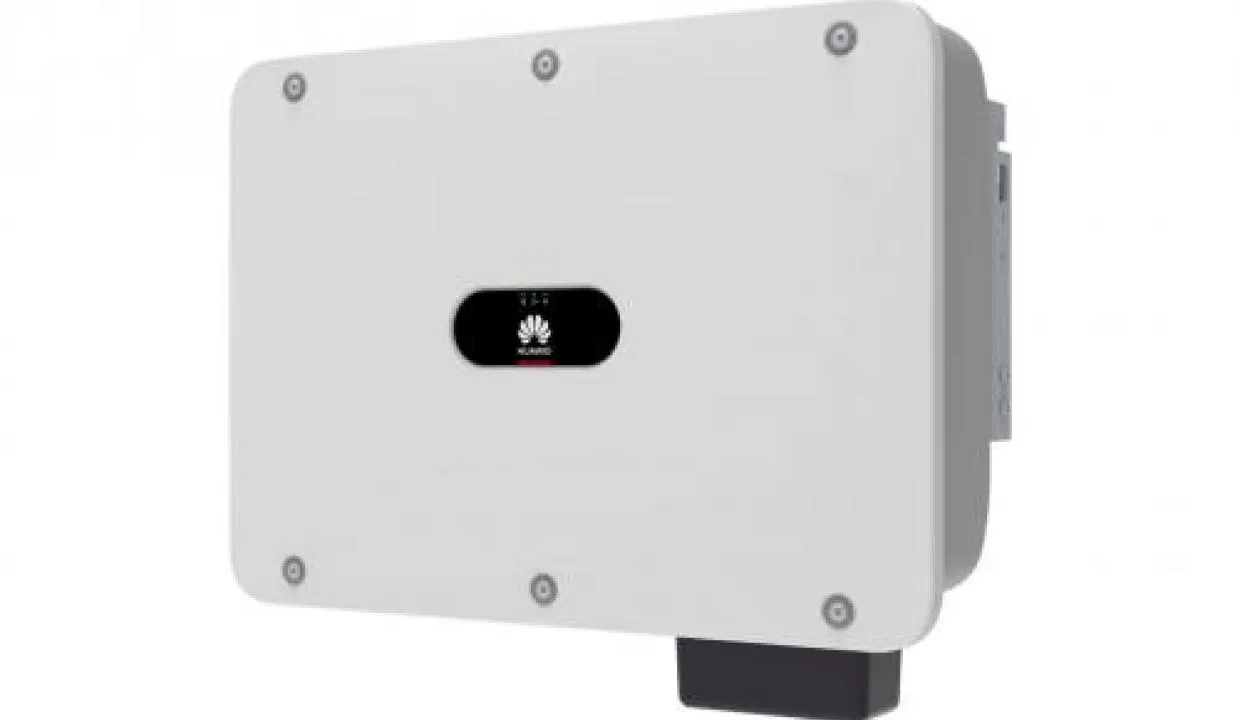

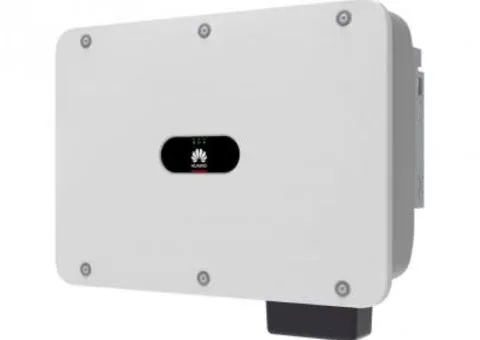

Huawei SUN2000-50KTL-M3 string inverter
171,098 ₴
Published 4 days ago by Solar-Tech
171,098 ₴
In Generators category
вул. Стеценка, 14/44, Київ, Україна
Get directions →
19 item views
Huawei SUN2000-50KTL-M3 — this is a new generation of three-phase inverters from Huawei. The updated inverter is designed for modern solar modules whose power can be 500 W and above and with a high current rating. Use of lower-power modules is also possible; in that case there is an opportunity to increase their number per string.
Safety at a new level.
The new generation of inverters uses an active intelligent arc-fault protection system. At startup the disconnection time for an arc is only 0.5 seconds, and after learning the hazardous sections will be disconnected even before an arc appears.
New practical design.
The inverter design is maximally simple; it has no parts that wear out quickly, no displays, no buttons. Passive cooling is improved thanks to a new heatsink profile, which also led to weight reduction.
Huawei inverters have proven themselves on the market as a product with the best price-to-quality ratio; they are undemanding to Ukrainian grids, and all these advantages put them among the sales leaders.
Advantages of the Huawei 50KTL-M3 string inverter:
-
4 MPPT trackers allow operation of the converter under conditions of uneven illumination of the solar panels.
-
The energy efficiency of the solar inverter corresponds to the highest class A+/A+. Device efficiency – 98.7%.
-
There is protection against DC and AC overvoltage, and leakage current monitoring.
-
Operating voltage is extended to the range 200–1000 V.
-
Compact dimensions and low weight reduce installation costs. The device is easy to install and configure.
Technical specifications:
DC input characteristics
Max. input voltage, V
1100
Maximum current per MPPT, A
30
Min. short-circuit current per MPPT, A
40
Starting voltage, V
200
MPPT operating voltage range, V
200 - 1000
Rated DC voltage, V
600
Max. number of inputs
8
Number of MPPT trackers
4
AC output characteristics
Rated active AC power, W
50000
Max. apparent power, VA
55000
Rated output voltage, V
230/400, 3W/N+PE
Rated frequency, Hz
50 / 60
Rated output current, A
57.8
Power factor range
0.8 LG ...0.8 LD
Max. total harmonic distortion, %
Read morePublished on 2026/10/11
Description
Huawei SUN2000-50KTL-M3 — this is a new generation of three-phase inverters from Huawei. The updated inverter is designed for modern solar modules whose power can be 500 W and above and with a high current rating. Use of lower-power modules is also possible; in that case there is an opportunity to increase their number per string.
Safety at a new level.
The new generation of inverters uses an active intelligent arc-fault protection system. At startup the disconnection time for an arc is only 0.5 seconds, and after learning the hazardous sections will be disconnected even before an arc appears.
New practical design.
The inverter design is maximally simple; it has no parts that wear out quickly, no displays, no buttons. Passive cooling is improved thanks to a new heatsink profile, which also led to weight reduction.
Huawei inverters have proven themselves on the market as a product with the best price-to-quality ratio; they are undemanding to Ukrainian grids, and all these advantages put them among the sales leaders.
Advantages of the Huawei 50KTL-M3 string inverter:
-
4 MPPT trackers allow operation of the converter under conditions of uneven illumination of the solar panels.
-
The energy efficiency of the solar inverter corresponds to the highest class A+/A+. Device efficiency – 98.7%.
-
There is protection against DC and AC overvoltage, and leakage current monitoring.
-
Operating voltage is extended to the range 200–1000 V.
-
Compact dimensions and low weight reduce installation costs. The device is easy to install and configure.
Technical specifications:
DC input characteristics
Max. input voltage, V
1100
Maximum current per MPPT, A
30
Min. short-circuit current per MPPT, A
40
Starting voltage, V
200
MPPT operating voltage range, V
200 - 1000
Rated DC voltage, V
600
Max. number of inputs
8
Number of MPPT trackers
4
AC output characteristics
Rated active AC power, W
50000
Max. apparent power, VA
55000
Rated output voltage, V
230/400, 3W/N+PE
Rated frequency, Hz
50 / 60
Rated output current, A
57.8
Power factor range
0.8 LG ...0.8 LD
Max. total harmonic distortion, %
