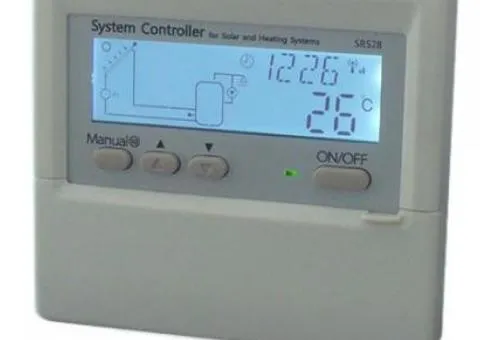

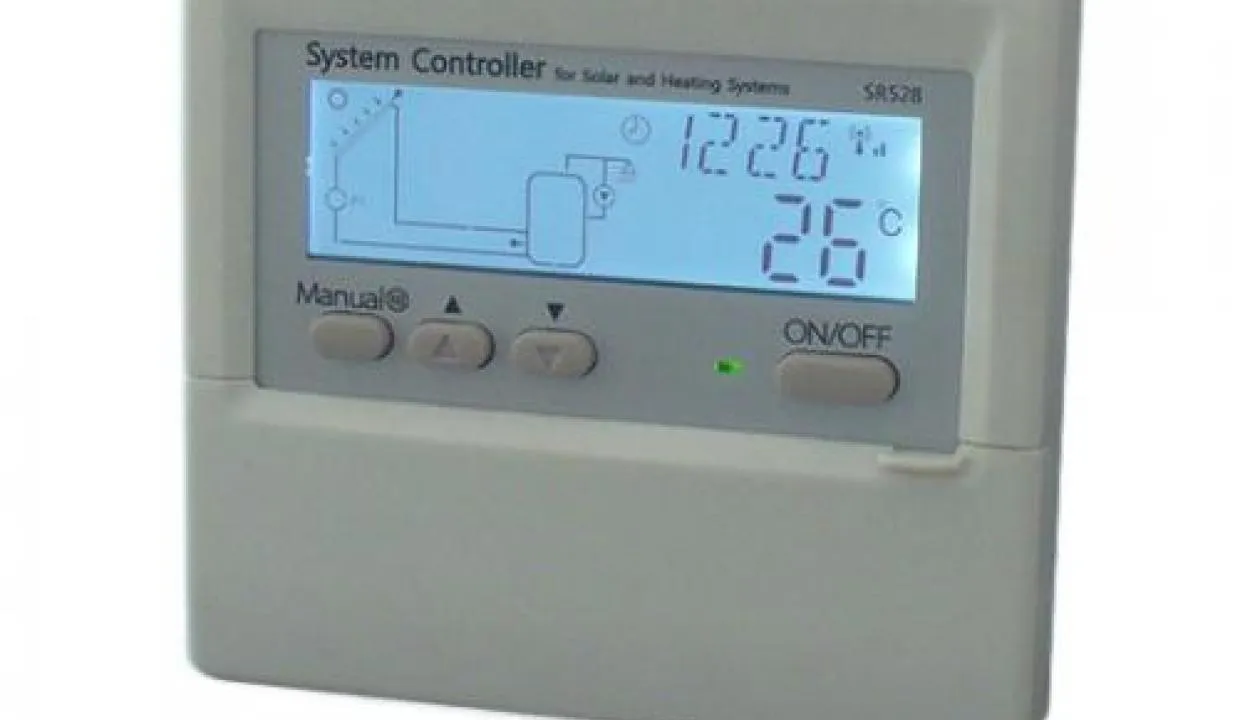

Controller for solar systems SK528

10,192 ₴

Other

Sunday 11:55

Україна

Київ Get directions →

вул. Стеценка, 14/44

15 views

Published 4 days ago by Solar-Tech

10,192 ₴

In Other category

вул. Стеценка, 14/44, Київ, Україна

Get directions →

15 item views

Solar thermal controller – a mandatory control element for heliosystems with forced circulation of the heat carrier. It controls the process of heating the heat carrier from the sun and monitors the state of the heating system as a whole. Control of the solar system operates as follows – the controller receives data from temperature sensors that are installed at the outlet of the solar collector and in the storage tank, analyzes them, and controls the circulation pump, which allows optimal use of electricity.

Technical specifications:

Dimensions, (mm)

130x130x25 (display)

200x140x43 (controller)

Power supply, (V)

AC110 / AC220

Consumption, (W)

1.8

Temperature measurement accuracy, (°C)

-/+2

Collector temperature measurement range, (°C)

-10…220

Tank temperature measurement range, (°C)

0…+110

Maximum pump power, (W)

3 pcs < 300

Inputs

1 pc pt1000, 3 pcs ntc10k

Outputs (relays for pump, valve, heating element)

10 A

Operating temperatures, (°C)

-10 +50

Ingress protection class

IP40

Functions of the SK series controllers:

-
Manual control

-
Password setting

-
Return to factory settings

-
"Output" function

-
Manual heating function

-
Temperature indication

-
Memory protection

-
Water protection (auto shutdown)

-
Protection against incorrect connection

-
Error indication

Detailed list of controller functions:

Controller

CK528

Remote control capability (Internet)

Number of schemes (software algorithms)

Setting the temperature difference for turning the solar circulation pump on and off

Additional heating control function

Recirculation by time

Stagnation temperature setting

Maximum collector temperature setting

Collector low temperature protection

Collector freeze protection

Tank cooling function

Set max. tank temperature 1

Set max. tank temperature 2

Set max. tank temperature 3

Maximum turn-off temperature (solid fuel boiler, "return" heating control, heat transfer between tanks)

Minimum turn-on temperature (solid fuel boiler, "return" heating control, heat transfer between tanks)

Maximum temperature during heat transfer

Minimum temperature during heat transfer

Turn-on temperature for heat transfer from tank 1 to 2

Turn-off temperature for heat transfer from tank 1 to 2

Turn-on temperature for heat transfer from tank 2 to 1

Turn-off temperature for heat transfer from tank 2 to 1

Setting units of temperature measurement (Celsius-Fahrenheit)

"Anti-legionella" function (Prevents bacterial growth in the storage tank by briefly heating the entire volume of water)

Control of the recirculation turn-on temperature

Control function for heating from a solid fuel boiler

Control of circulation pump speed

Standard temperature difference (for circulation pump speed control)

Increase of circulation pump speed

Control of the second circulation pump speed

Standard temperature difference for the second pump

Increase of the second circulation pump speed

Measurement of collected thermal energy

Changing the flow rate value

Selection of heat carrier type

Changing heat carrier concentration

Setting priority logic between tanks

Heating duration

Heating time interval

Bypass (high temperature)

Cooling of the storage tank (analog BYPA)

Delay function for activation of the circulation pump

Pump operation interval function (if a temperature sensor is not installed in the collector)

Activation time of the INTV function

Deactivation time of the INTV function

Interval time between circulation pump operations

Circulation pump operating time between checks

Circulation circuit temperature difference

Selection of the connected flowmeter type

Data recording to miniCD flash drive

Recording interval to the card

Setting units of temperature measurement (analog C-F)

Thermostat function
