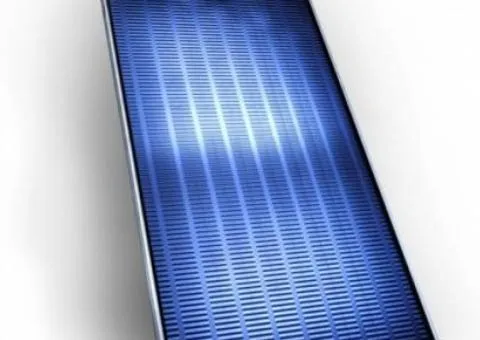

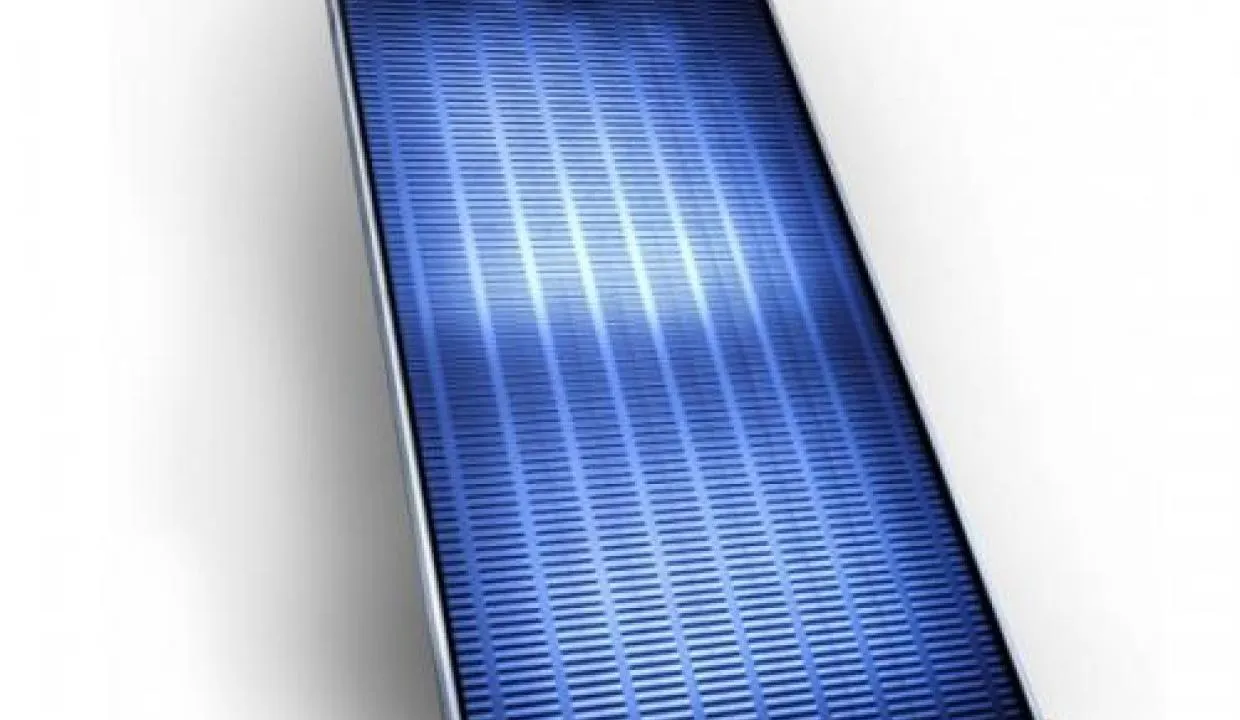

Flat solar collector Dimas ENERGY +20
16,740 ₴
Published 4 days ago by Solar-Tech
16,740 ₴
In Other category
вул. Стеценка, 14/44, Київ, Україна
Get directions →
12 item views
Dimas ENERGY +20 - a flat solar collector whose main characteristics are high aesthetics and functionality. These innovative collectors are intended for a Mediterranean climate. Absorber and heat exchanger manufactured on an automatic welding line. Thanks to laser welding technology, a reliable contact between the heat exchanger and the absorber is ensured and a larger heat transfer area.
ENERGY + EVO:
-
Aluminum absorber surface with blue selective PVD coating technology.
-
ø8mm tube.
ENERGY + ECO:
-
Aluminum absorber surface with black selective coating.
-
ø8mm tube.
Advantages:
-
Lightweight for easy transportation and installation.
-
Anti-corrosion materials for final sealing against moisture and airborne microparticles.
-
Safety glass with high transmittance.
-
Insulation made of glass and wool.
-
Laser welding technology
-
HARP-type absorber
-
Possibility of installation vertically or horizontally
Technical characteristics of the Dimas ENERGY +20 solar collector:
Collector area (m²)
2.02
Absorber area (m²)
1.83
Optical (efficiency)
-
Size: WidthXHeightXDepth, (mm)
2006х1007х85
Mass without fluid, (kg)
27
Fluid/heat carrier volume, (l)
1.6
Allowable working pressure (bar)
10
Max. stagnation temperature, (°C)
-
Connection, (Ømm)
22
Number of connections
4 or 2
Frame material
Anodized aluminum frame
Absorber material
Aluminum
Absorber connection
-
Cover material
Tempered, low-iron
Country of manufacture
Greece
Read morePublished on 2026/10/11
Description
Dimas ENERGY +20 - a flat solar collector whose main characteristics are high aesthetics and functionality. These innovative collectors are intended for a Mediterranean climate. Absorber and heat exchanger manufactured on an automatic welding line. Thanks to laser welding technology, a reliable contact between the heat exchanger and the absorber is ensured and a larger heat transfer area.
ENERGY + EVO:
-
Aluminum absorber surface with blue selective PVD coating technology.
-
ø8mm tube.
ENERGY + ECO:
-
Aluminum absorber surface with black selective coating.
-
ø8mm tube.
Advantages:
-
Lightweight for easy transportation and installation.
-
Anti-corrosion materials for final sealing against moisture and airborne microparticles.
-
Safety glass with high transmittance.
-
Insulation made of glass and wool.
-
Laser welding technology
-
HARP-type absorber
-
Possibility of installation vertically or horizontally
Technical characteristics of the Dimas ENERGY +20 solar collector:
Collector area (m²)
2.02
Absorber area (m²)
1.83
Optical (efficiency)
-
Size: WidthXHeightXDepth, (mm)
2006х1007х85
Mass without fluid, (kg)
27
Fluid/heat carrier volume, (l)
1.6
Allowable working pressure (bar)
10
Max. stagnation temperature, (°C)
-
Connection, (Ømm)
22
Number of connections
4 or 2
Frame material
Anodized aluminum frame
Absorber material
Aluminum
Absorber connection
-
Cover material
Tempered, low-iron
Country of manufacture
Greece
