Flat solar collector Dimas NAVI +20
23,220 ₴
Published 4 days ago by Solar-Tech
23,220 ₴
In Other category
вул. Стеценка, 14/44, Київ, Україна
Get directions →
11 item views

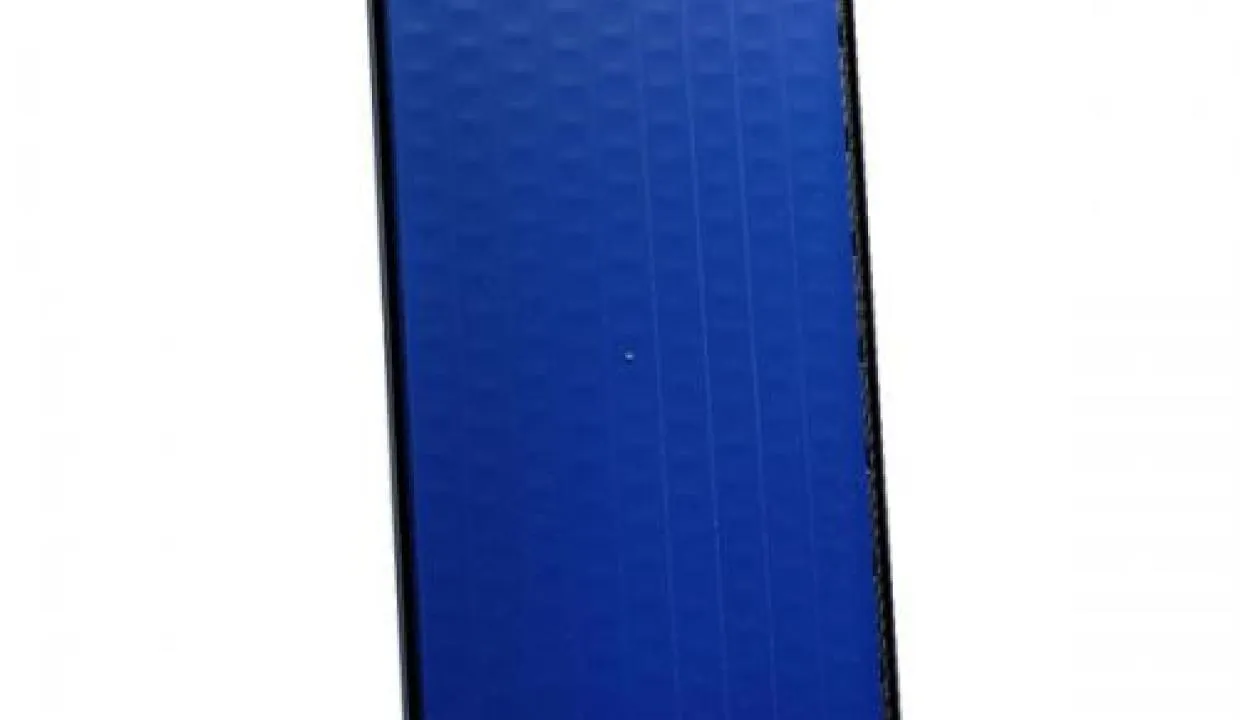

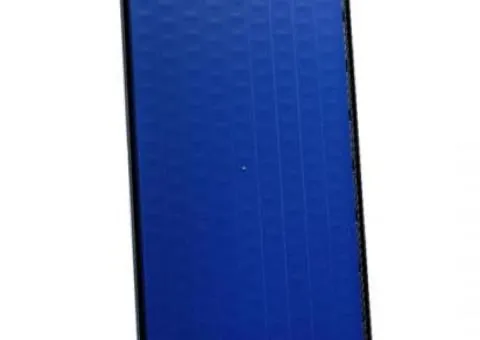

Dimas NAVI +20 - flat solar collector with high performance, reliability and attractive design. The NAVI + series of solar collectors stands out for its extreme mechanical and thermal strength, providing absolute waterproofing and eliminating any heat loss through a homogeneous construction, bringing the product to No.1 in the world ranking.
NAVI + 20:
-
Absorber aluminum surface with blue PVD selective coating technology.
-
Laser welding technology
Advantages:
-
Installation system with internal, stable thread.
-
Easy to transport and install.
-
Single-layer tray, stainless sealing technology for maximum protection against moisture and airborne microparticles, attractive design.
-
Safety glass with high transmittance.
-
Wall insulation.
-
HARP type absorber.
-
Possibility of installation vertically or horizontally.
Technical specifications of the Dimas NAVI +20 solar collector:
Collector area (m²)
2.05
Absorber area, (m²)
1.83
Optical (efficiency)
-
Dimensions: WidthXHeightXDepth, (mm)
2031х1011х95
Mass without fluid, (kg)
34
Fluid/heat transfer fluid volume, (l)
1.6
Permissible operating pressure (bar)
10
Max. stagnation temperature, (°C)
-
Connection, (Ømm)
22
Number of connections
4 or 2
Frame material
Anodized aluminum frame
Absorber material
Aluminum
Absorber connection
-
Cover material
Tempered, low-iron
Country of origin
Greece
Read morePublished on 2026/10/11
Description
Dimas NAVI +20 - flat solar collector with high performance, reliability and attractive design. The NAVI + series of solar collectors stands out for its extreme mechanical and thermal strength, providing absolute waterproofing and eliminating any heat loss through a homogeneous construction, bringing the product to No.1 in the world ranking.
NAVI + 20:
-
Absorber aluminum surface with blue PVD selective coating technology.
-
Laser welding technology
Advantages:
-
Installation system with internal, stable thread.
-
Easy to transport and install.
-
Single-layer tray, stainless sealing technology for maximum protection against moisture and airborne microparticles, attractive design.
-
Safety glass with high transmittance.
-
Wall insulation.
-
HARP type absorber.
-
Possibility of installation vertically or horizontally.
Technical specifications of the Dimas NAVI +20 solar collector:
Collector area (m²)
2.05
Absorber area, (m²)
1.83
Optical (efficiency)
-
Dimensions: WidthXHeightXDepth, (mm)
2031х1011х95
Mass without fluid, (kg)
34
Fluid/heat transfer fluid volume, (l)
1.6
Permissible operating pressure (bar)
10
Max. stagnation temperature, (°C)
-
Connection, (Ømm)
22
Number of connections
4 or 2
Frame material
Anodized aluminum frame
Absorber material
Aluminum
Absorber connection
-
Cover material
Tempered, low-iron
Country of origin
Greece
