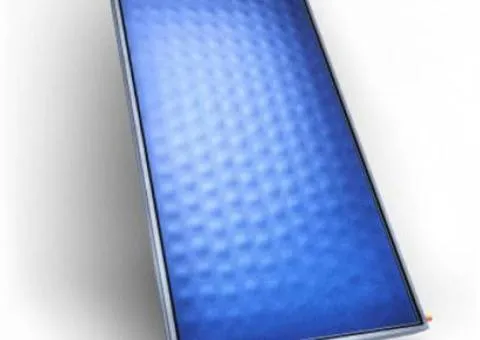

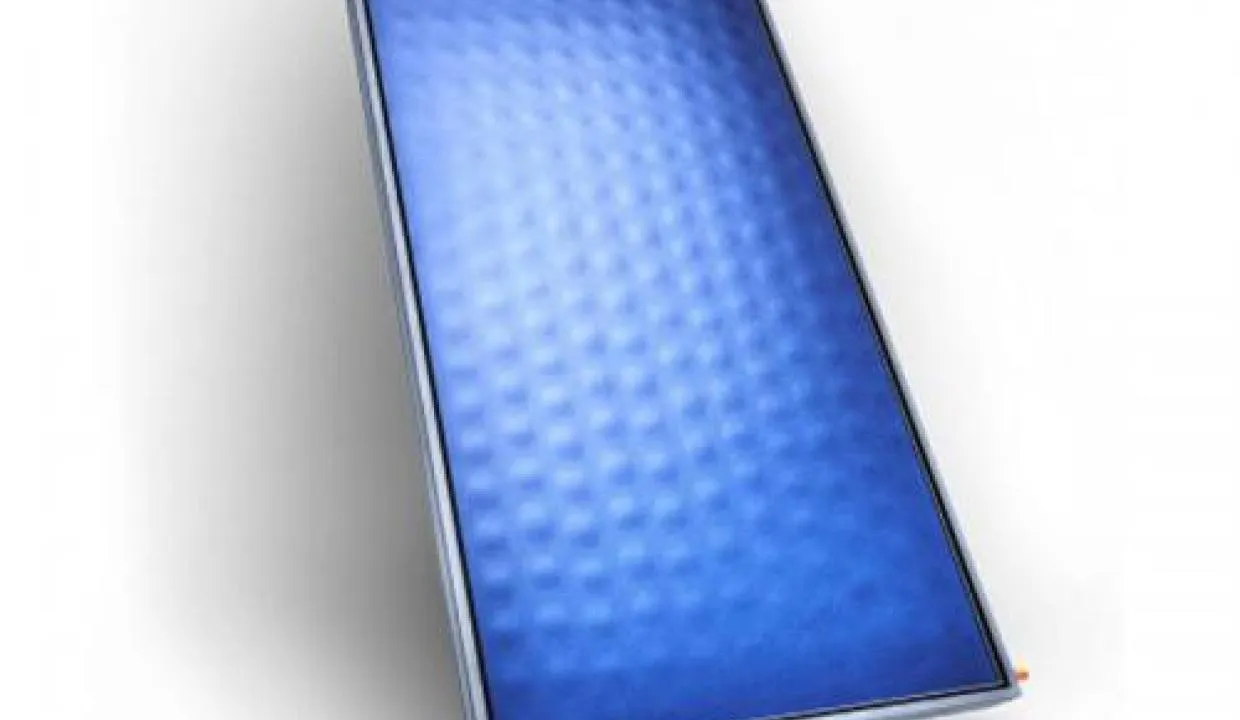

Flat solar collector Dimas SOL +20
19,980 ₴
Published 4 days ago by Solar-Tech
19,980 ₴
In Other category
вул. Стеценка, 14/44, Київ, Україна
Get directions →
13 item views
Dimas SOL +20 - flat solar collector with high operational qualities. A series of collectors designed for operation in cold continental climate conditions and conditions of reduced solar radiation, capable of meeting its energy needs in the most extreme weather conditions.
ENERGY + SOL:
-
Aluminum absorber surface with blue selective PVD coating technology.
-
ø8mm tube.
Advantages:
-
Lightweight for easy transportation and installation.
-
Anti-corrosion materials for final sealing against moisture and airborne microparticles.
-
Safety glass with high transmittance.
-
Glass wool insulation.
-
Laser welding technology
-
HARP-type absorber
-
Ability to install vertically or horizontally
Technical specifications of the Dimas SOL +20 solar collector:
Collector area (m²)
2.02
Absorber area (m²)
1.83
Optical (efficiency)
-
Dimensions: Width×Height×Depth, (mm)
2006×1007×85
Mass without fluid, (kg)
31
Fluid/heat transfer fluid volume, (l)
1.6
Permissible working pressure (bar)
10
Max. stagnation temperature, (°C)
-
Connection, (Ømm)
22
Number of connections
4 or 2
Frame material
Anodized aluminum frame
Absorber material
Aluminum
Absorber joint
-
Cover material
Tempered, low-iron
Country of manufacture
Greece
Read morePublished on 2026/10/11
Description
Dimas SOL +20 - flat solar collector with high operational qualities. A series of collectors designed for operation in cold continental climate conditions and conditions of reduced solar radiation, capable of meeting its energy needs in the most extreme weather conditions.
ENERGY + SOL:
-
Aluminum absorber surface with blue selective PVD coating technology.
-
ø8mm tube.
Advantages:
-
Lightweight for easy transportation and installation.
-
Anti-corrosion materials for final sealing against moisture and airborne microparticles.
-
Safety glass with high transmittance.
-
Glass wool insulation.
-
Laser welding technology
-
HARP-type absorber
-
Ability to install vertically or horizontally
Technical specifications of the Dimas SOL +20 solar collector:
Collector area (m²)
2.02
Absorber area (m²)
1.83
Optical (efficiency)
-
Dimensions: Width×Height×Depth, (mm)
2006×1007×85
Mass without fluid, (kg)
31
Fluid/heat transfer fluid volume, (l)
1.6
Permissible working pressure (bar)
10
Max. stagnation temperature, (°C)
-
Connection, (Ømm)
22
Number of connections
4 or 2
Frame material
Anodized aluminum frame
Absorber material
Aluminum
Absorber joint
-
Cover material
Tempered, low-iron
Country of manufacture
Greece
