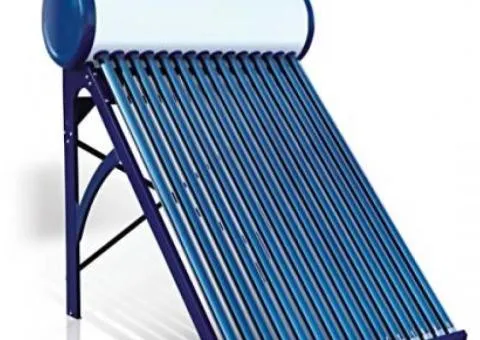

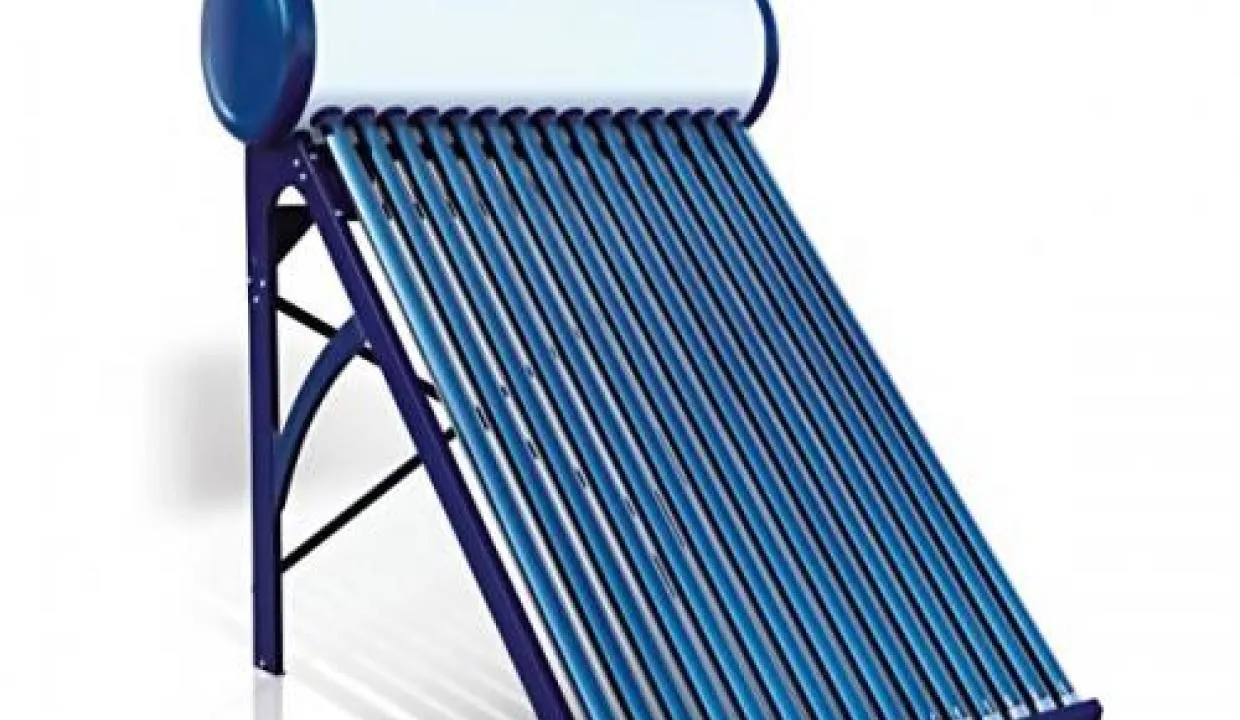

Heliosystem AXIOMA AX-20T
30,260 ₴
Published 4 days ago by Solar-Tech
30,260 ₴
In Other category
вул. Стеценка, 14/44, Київ, Україна
Get directions →
6 item views
Non-pressurized thermosiphon solar collector with a pressurized heat exchanger AXIOMA AX-20T is used in seasonal water heating systems. This solar collector is used to provide hot water for a private house, summer cottage, or recreation base. The vacuum tubes are coated with a three-layer high-selectivity coating ALN-AIN-SS/Cu.
Technical specifications:
Model
AX-20T
AX-30T
Vacuum tubes
Number of tubes, (pcs)
20
30
High-selectivity coating
three-layer, ALN-AIN-SS/Cu
Vacuum tube dimensions, (mm)
58x1800
Aperture area, (m2)
1.86
2.79
Storage tank
Tank capacity, (l)
200
300
External tank parameters
painted steel, 0.4 mm
Internal tank parameters
stainless food-grade steel, 0.6 mm
Thermal insulation
polyurethane foam, 50 mm
Heat exchanger
copper, ф12 mm, wall thickness 0.8 mm
Heat exchanger length, (mm)
3100
3900
Electric heater (TEN)
optional
Connections
1/2"
Make-up tank capacity, (l)
5
Tank dimensions, (mm)
1980x560x560
2830x560x560
Frame
Material
painted steel with galvanic coating
Inclination angle, (°)
45
Empty collector weight, (kg)
78
108
Solar collector tank diagram:
1 - air vent tube
2 – cold water supply to the tank
3 - make-up tank
4 – electric heater (TEN) (not included in the basic package)
5 – input for controller sensor (controller not included in the basic package)
6 – drain water from the tank
7 – supply of cold water under pressure to the heat exchanger
8 – draw hot water from the heat exchanger
Additional options
Price, ($)
Controller TK-7
45
TEN, 1.5 kW
17
Magnesium anode
8
Additional options
Price, ($)
Controller TK-7
45
TEN, 1.5 kW
17
Magnesium anode
8
Read morePublished on 2026/10/11
Description
Non-pressurized thermosiphon solar collector with a pressurized heat exchanger AXIOMA AX-20T is used in seasonal water heating systems. This solar collector is used to provide hot water for a private house, summer cottage, or recreation base. The vacuum tubes are coated with a three-layer high-selectivity coating ALN-AIN-SS/Cu.
Technical specifications:
Model
AX-20T
AX-30T
Vacuum tubes
Number of tubes, (pcs)
20
30
High-selectivity coating
three-layer, ALN-AIN-SS/Cu
Vacuum tube dimensions, (mm)
58x1800
Aperture area, (m2)
1.86
2.79
Storage tank
Tank capacity, (l)
200
300
External tank parameters
painted steel, 0.4 mm
Internal tank parameters
stainless food-grade steel, 0.6 mm
Thermal insulation
polyurethane foam, 50 mm
Heat exchanger
copper, ф12 mm, wall thickness 0.8 mm
Heat exchanger length, (mm)
3100
3900
Electric heater (TEN)
optional
Connections
1/2"
Make-up tank capacity, (l)
5
Tank dimensions, (mm)
1980x560x560
2830x560x560
Frame
Material
painted steel with galvanic coating
Inclination angle, (°)
45
Empty collector weight, (kg)
78
108
Solar collector tank diagram:
1 - air vent tube
2 – cold water supply to the tank
3 - make-up tank
4 – electric heater (TEN) (not included in the basic package)
5 – input for controller sensor (controller not included in the basic package)
6 – drain water from the tank
7 – supply of cold water under pressure to the heat exchanger
8 – draw hot water from the heat exchanger
Additional options
Price, ($)
Controller TK-7
45
TEN, 1.5 kW
17
Magnesium anode
8
Additional options
Price, ($)
Controller TK-7
45
TEN, 1.5 kW
17
Magnesium anode
8
