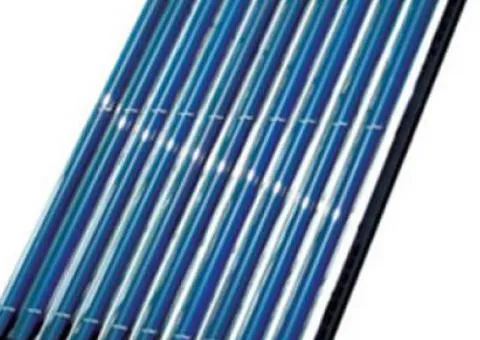

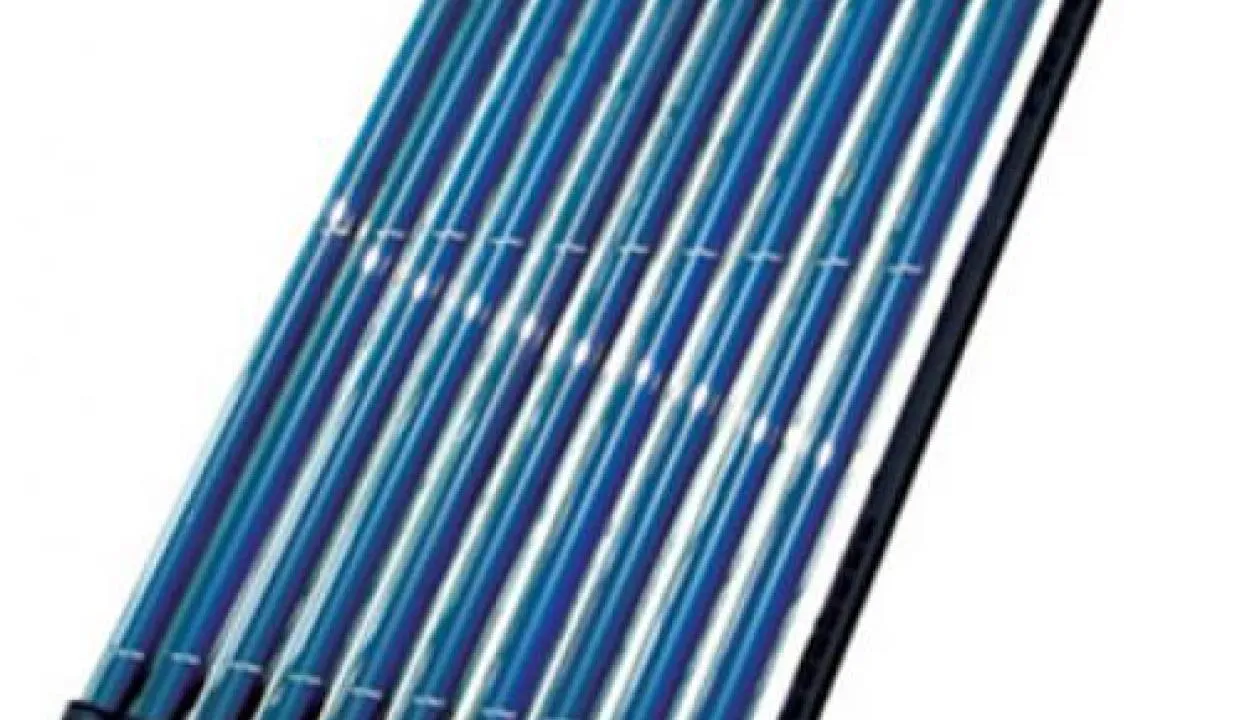

Vacuum Solar Collector Altek SC-LH2-10

22,197 ₴

Other

Sunday 11:55

Україна

Київ Get directions →

вул. Стеценка, 14/44

9 views

Published 4 days ago by Solar-Tech

22,197 ₴

In Other category

вул. Стеценка, 14/44, Київ, Україна

Get directions →

9 item views

The Altek SC-LH2 vacuum collector, which can be purchased in our online store, is used in closed-type solar systems with a pump station. The efficiency of the solar collector reaches 87-92%. Due to the design features calculated for our climatic conditions, the SC-LH2 has maximum performance. It has high performance in conditions of low solar insolation, providing solar energy collection regardless of weather conditions, absorbing up to 92% of the sun’s energy. The SC-LH2 frame is made of high-quality aluminum with a thick profile.

Advantages of installing the solar collector:

-
provides hot water for household needs;

-
provides heating savings up to 90% in spring-autumn, and up to 45% in winter.

-
significantly reduces the consumption of energy resources;

-
lifespan - at least 15-25 years.

Technical specifications of the Altek SC-LH2-10 vacuum collector:

Tube type

Heat pipe (AlN/AlN-SS/Cu)

Number of tubes

Collector area, (m2)

1.28

Vacuum tube size, (mm)

58х1800

Condenser diameter, (mm)

Condenser length, (mm)

Absorber area, (m)

Aperture area, m²

Maximum heating temperature, (°C)

250

Rated operating temperature, (°C)

-20+90

Maximum operating temperature, (°C)

100

Efficiency, n

0.753

Frame and collector

aluminum alloy

Heat exchanger material

copper

Insulation material

mineral wool, 55х65

Thermometer sleeve, mm

8х100

Maximum working pressure, (bar)

Recommended flow, l/min*m2

1.21

Vacuum tube holders

Latch with additional fixation

Installation type

Flat, inclined, vertical surfaces

Metal thickness

2 mm

Dimensions HxWxD, (mm)

2025х802х189

Weight, (kg)

Service life

not less than 15 years

The package includes mounting elements for a flat surface, an aluminum frame and a stand.

Tube type

Heat pipe (AlN/AlN-SS/Cu)

Number of tubes

Collector area, (m2)

1.7

Vacuum tube size, (mm)

58х1800

Condenser diameter, (mm)

Condenser length, (mm)

Absorber area, (m)

0.94

Aperture area, m²

0.81

Maximum heating temperature, (°C)

270

Rated operating temperature, (°C)

-20+90

Maximum operating temperature, (°C)

100

Efficiency, n

0.734

Frame and collector

aluminum alloy

Heat exchanger material

copper

Insulation material

polyurethane, mineral wool

Thermometer sleeve, mm

ф8*100

Maximum working pressure, (bar)

Recommended flow, l/min*m2

3.5-8.0

Vacuum tube holders

Latch with additional fixation

Installation type

Flat, inclined, vertical surfaces

Metal thickness

2 mm

Dimensions HxWxD, (mm)

2025х802х189

Weight, (kg)

Service life

more than 25 years

Published on 2026/10/11

Description

Advantages of installing the solar collector:

-
provides hot water for household needs;

-
provides heating savings up to 90% in spring-autumn, and up to 45% in winter.

-
significantly reduces the consumption of energy resources;

-
lifespan - at least 15-25 years.

Technical specifications of the Altek SC-LH2-10 vacuum collector:

Tube type

Heat pipe (AlN/AlN-SS/Cu)

Number of tubes

Collector area, (m2)

1.28

Vacuum tube size, (mm)

58х1800

Condenser diameter, (mm)

Condenser length, (mm)

Absorber area, (m)

Aperture area, m²

Maximum heating temperature, (°C)

250

Rated operating temperature, (°C)

-20+90

Maximum operating temperature, (°C)

100

Efficiency, n

0.753

Frame and collector

aluminum alloy

Heat exchanger material

copper

Insulation material

mineral wool, 55х65

Thermometer sleeve, mm

8х100

Maximum working pressure, (bar)

Recommended flow, l/min*m2

1.21

Vacuum tube holders

Latch with additional fixation

Installation type

Flat, inclined, vertical surfaces

Metal thickness

2 mm

Dimensions HxWxD, (mm)

2025х802х189

Weight, (kg)

Service life

not less than 15 years

The package includes mounting elements for a flat surface, an aluminum frame and a stand.

Tube type

Heat pipe (AlN/AlN-SS/Cu)

Number of tubes

Collector area, (m2)

1.7

Vacuum tube size, (mm)

58х1800

Condenser diameter, (mm)

Condenser length, (mm)

Absorber area, (m)

0.94

Aperture area, m²

0.81

Maximum heating temperature, (°C)

270

Rated operating temperature, (°C)

-20+90

Maximum operating temperature, (°C)

100

Efficiency, n

0.734

Frame and collector

aluminum alloy

Heat exchanger material

copper

Insulation material

polyurethane, mineral wool

Thermometer sleeve, mm

ф8*100

Maximum working pressure, (bar)

Recommended flow, l/min*m2

3.5-8.0

Vacuum tube holders

Latch with additional fixation

Installation type

Flat, inclined, vertical surfaces

Metal thickness

2 mm

Dimensions HxWxD, (mm)

2025х802х189

Weight, (kg)

Service life

more than 25 years
