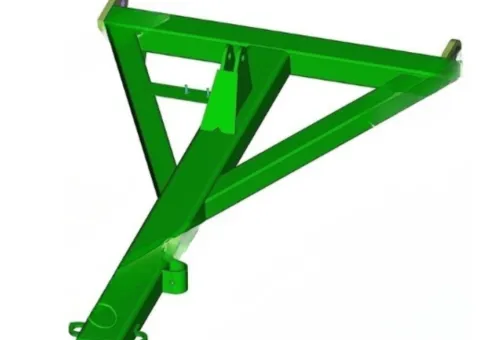

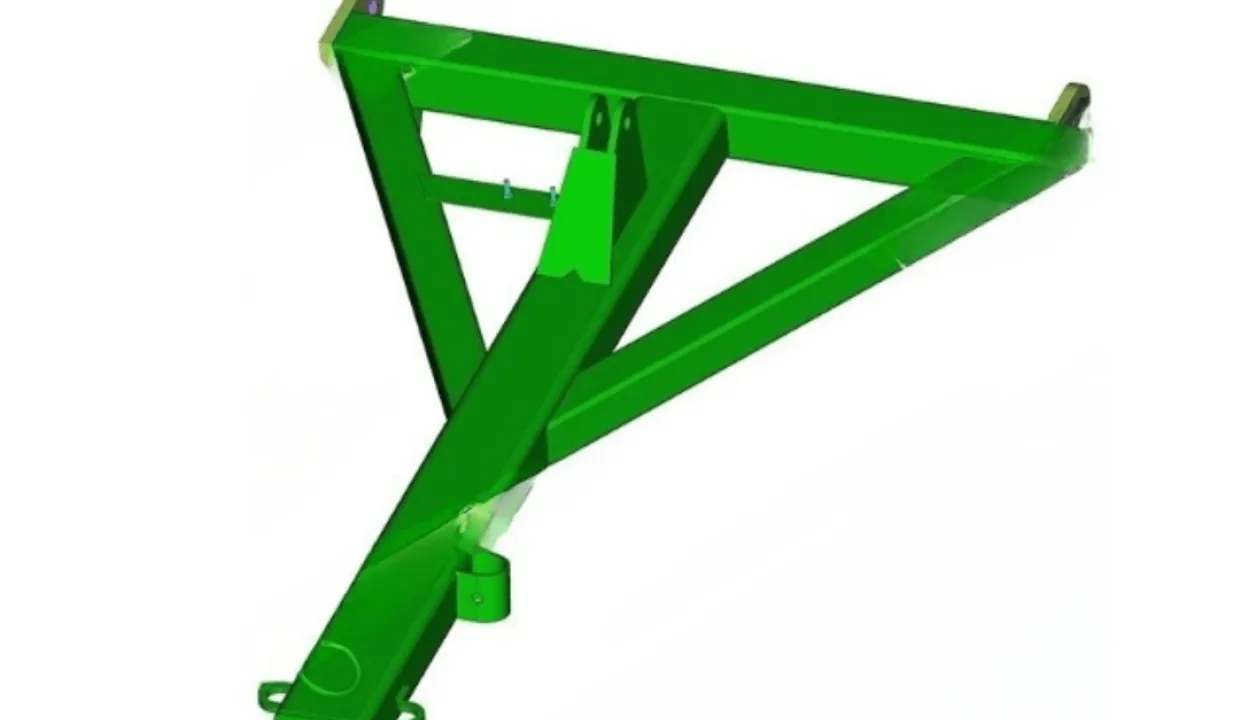

Snitsa (drawbar) of heavy disc harrow UDA-5.2 UD 1.2.00-7:

Purpose: the assembly serves to enable hitching the implement to tractors. The tractor's towing device is attached to the hitch loop of the drawbar of the heavy harrow UDA-5.2.

Characteristics of the towed drawbar of harrow UDA-5.2:

welded structure of class I, consisting of a cross tube and two brace tubes, with brackets, bushings, and plates welded to them. The cross tube is made from a tube with a cross-section of 100×100 mm, wall thickness 8 mm, from steel V20 GOST 13663-86; the ends of the tube are closed with caps. The brace tubes are made from a tube with a cross-section of 100×100 mm, wall thickness 8 mm, from steel V20 GOST 13663-86; the tube edges are cut. Length of the drawbar 1000 mm, width 1189 mm. A safety chain is welded to the drawbar.

Published on 2026/10/11

Description

Snitsa (drawbar) of heavy disc harrow UDA-5.2 UD 1.2.00-7:

Purpose: the assembly serves to enable hitching the implement to tractors. The tractor's towing device is attached to the hitch loop of the drawbar of the heavy harrow UDA-5.2.

Characteristics of the towed drawbar of harrow UDA-5.2:
