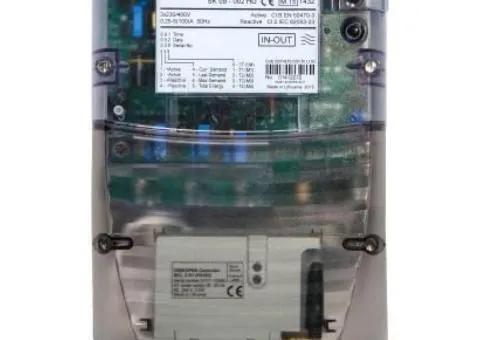

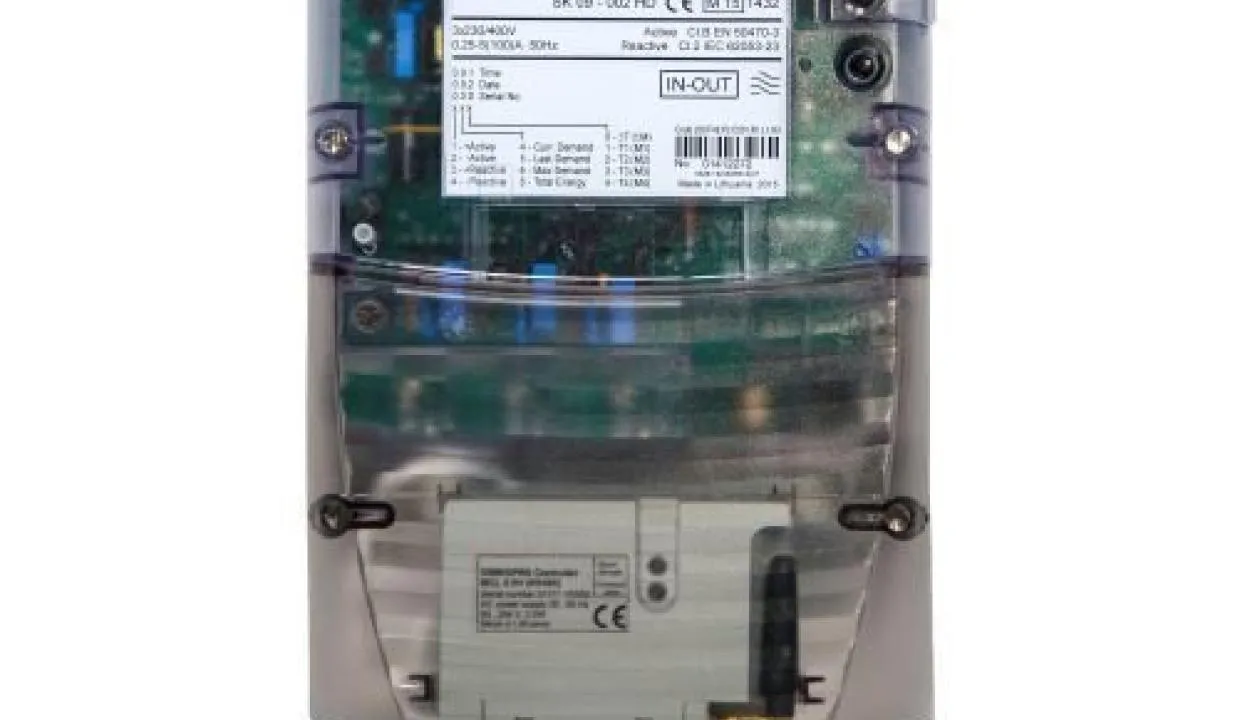

GAMA 300 G3B 144.230.F17.B2.P4.C311.A3.L1 meter for green tariff

5,326 ₴

Generators

Sunday 11:54

Україна

Київ Get directions →

вул. Стеценка, 14/44

26 views

Published 4 days ago by Solar-Tech

5,326 ₴

In Generators category

вул. Стеценка, 14/44, Київ, Україна

Get directions →

26 item views

GAMA 300 G3B 144.230.F17.B2.P4.C311.A3.L1 — multi-tariff meter, used in three-phase three-wire and four-wire alternating current networks. The meter measures active and reactive energy by absolute value, power maxima, profiles (|A|, M, P), 2 independent RS 485 interfaces. When used in the “green” tariff a modem must be purchased.

Depending on the modification the meter measures:

-
active energy |A| (absolute value, regardless of current direction);

-
active energy in both directions A+, A-;

-
active energy |A| or A+, A- and reactive energy in both directions R+, R-

-
active energy in both directions A+, A-, reactive energy R+, R-, apparent energy W+, W-

Additionally the meter performs the following functions:

-
registers the maximum power value per day, month;

-
instantaneous values of current, voltage, frequency;

-
generates load profiles;

-
records and stores event information in a log

Communication interface protocol:

-
optical communication - DLMS, IEC 62056-21:2002;

-
electrical communication (RS485, CL) - DLMS;

Technical specifications:

Accuracy class:

Active energy

1.0 (DSTU EN 62053-21:015), B (DSTU EN 50470-3:2010)

0.5S (DSTU EN 62053-22:2015), C (DSTU EN 50470-3:2010)

Rated voltage Un, V:

4-wire connection

3x57.7/100; 3x220/380; 3x230/400

universal connection

3x57.7/100 ... 240/400

3-wire connection

3x100; 3x110; 3x220; 3x230

Rated (maximum) current, A:

direct connection

5(60); 5(80); 5(100); 5(120); 10(100)

transformer connection

1(6); 5(10)

Sensitivity threshold:

direct connection

0.4%In (class 1.0)

transformer connection

0.2%In (class 1.0)

0.1%In (class 0.5S)

Rated frequency, Hz

Power consumption, VA

in voltage circuits

no more than 1 (no more than 0.5 W)

no more than 2.3 (no more than 0.8 W) with additional communication device

in current circuits

no more than 0.5 (transformer connection)

no more than 0.05 (direct connection)

Internal clock (IEC 62054-21^2004)

clock running error, s/day

0.5

clock backup power source

lithium battery, ionistr

continuous operating time on battery power

not less than 10 years

Tariff module functions

number of energy tariffs

1 ... 4

number of tariffs for power maxima

1 ... 4

data retention duration during power outage

not less than 20 years

S0 outputs (IEC62053-31)

1 ... 4

Internal relay

maximum switchable current, A

100

maximum switchable power, VA

25000

mechanical durability

10 million operations

Communication device

optical communication

IEC 62056-21, DLMS

CL "current loop"

IEC 62056-21/DLMS

RS485, RS232

IEC 62056-21/DLMS

M-Bus

EN 13757-2, EN 13757-3

Impulse voltage tests (IEC60060-1), kV

Alternating voltage tests, kV

Temperature range

for meters with battery and without backup power source

-40 ... +70 (3k7)

for meters with external modem

-25 ... + 55

storage and transportation

-40 ... +70

Service life

not less than 20 years

Mass, kg

1.4

Overall dimensions, mm

260x175x80

Published on 2026/10/11

Description

Depending on the modification the meter measures:

-
active energy |A| (absolute value, regardless of current direction);

-
active energy in both directions A+, A-;

-
active energy |A| or A+, A- and reactive energy in both directions R+, R-

-
active energy in both directions A+, A-, reactive energy R+, R-, apparent energy W+, W-

Additionally the meter performs the following functions:

-
registers the maximum power value per day, month;

-
instantaneous values of current, voltage, frequency;

-
generates load profiles;

-
records and stores event information in a log

Communication interface protocol:

-
optical communication - DLMS, IEC 62056-21:2002;

-
electrical communication (RS485, CL) - DLMS;

Technical specifications:

Accuracy class:

Active energy

1.0 (DSTU EN 62053-21:015), B (DSTU EN 50470-3:2010)

0.5S (DSTU EN 62053-22:2015), C (DSTU EN 50470-3:2010)

Rated voltage Un, V:

4-wire connection

3x57.7/100; 3x220/380; 3x230/400

universal connection

3x57.7/100 ... 240/400

3-wire connection

3x100; 3x110; 3x220; 3x230

Rated (maximum) current, A:

direct connection

5(60); 5(80); 5(100); 5(120); 10(100)

transformer connection

1(6); 5(10)

Sensitivity threshold:

direct connection

0.4%In (class 1.0)

transformer connection

0.2%In (class 1.0)

0.1%In (class 0.5S)

Rated frequency, Hz

Power consumption, VA

in voltage circuits

no more than 1 (no more than 0.5 W)

no more than 2.3 (no more than 0.8 W) with additional communication device

in current circuits

no more than 0.5 (transformer connection)

no more than 0.05 (direct connection)

Internal clock (IEC 62054-21^2004)

clock running error, s/day

0.5

clock backup power source

lithium battery, ionistr

continuous operating time on battery power

not less than 10 years

Tariff module functions

number of energy tariffs

1 ... 4

number of tariffs for power maxima

1 ... 4

data retention duration during power outage

not less than 20 years

S0 outputs (IEC62053-31)

1 ... 4

Internal relay

maximum switchable current, A

100

maximum switchable power, VA

25000

mechanical durability

10 million operations

Communication device

optical communication

IEC 62056-21, DLMS

CL "current loop"

IEC 62056-21/DLMS

RS485, RS232

IEC 62056-21/DLMS

M-Bus

EN 13757-2, EN 13757-3

Impulse voltage tests (IEC60060-1), kV

Alternating voltage tests, kV

Temperature range

for meters with battery and without backup power source

-40 ... +70 (3k7)

for meters with external modem

-25 ... + 55

storage and transportation

-40 ... +70

Service life

not less than 20 years

Mass, kg

1.4

Overall dimensions, mm

260x175x80
