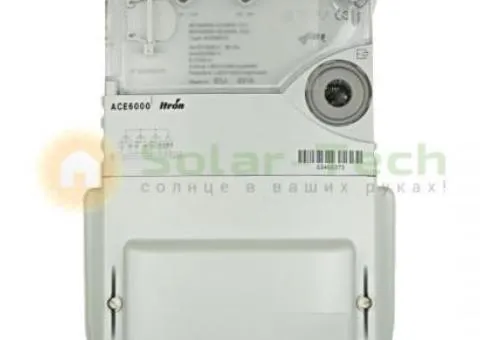

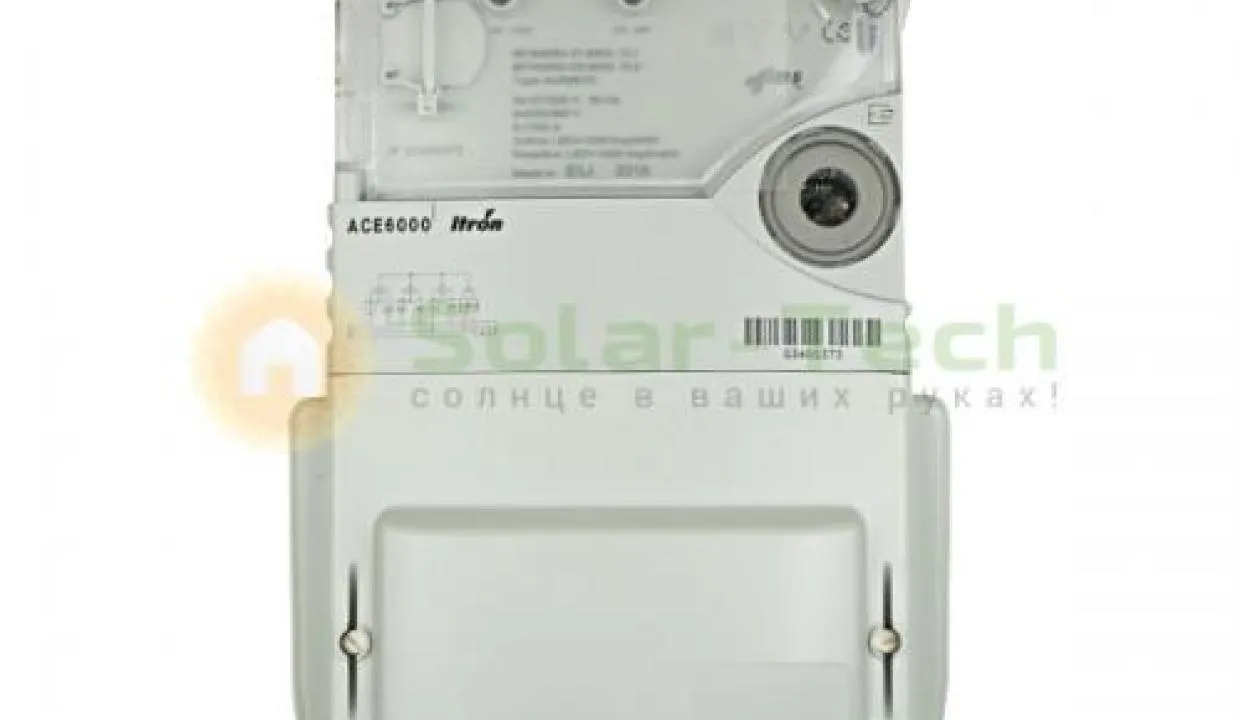

Itron ACE 6000 meter for green tariff
8,500 ₴
Published 4 days ago by Solar-Tech
8,500 ₴
In Generators category
вул. Стеценка, 14/44, Київ, Україна
Get directions →
14 item views
Electronic multifunction electricity meter by Itron, ACE 6000 is designed to determine active and reactive power in both directions in three- and four-wire alternating current circuits of industrial frequency in multi-tariff modes. This meter allows accounting of generated energy from a solar photovoltaic station that is sold under the green tariff.
Technical specifications:
Operating voltage range
From 3x57.7/100V to 3x240/415V, automatic adjustment
Operating current range
for transformer-connected meter
1A... 10A
Connection type
transformer-connected meter
3- or 4-wire connection, connection method is programmable
Accuracy class
transformer-connected meter
Class 0.5s
Frequency
50 Hz
Measured parameters
-
Active, reactive, apparent energy and power in one or two directions
-
Instantaneous, minimum, maximum, effective values of frequency, phase voltages and currents, power factor
-
Maximum number of measurement channels: 10 for energy, 10 for power
-
Voltage quality parameter monitoring
Power integration period
Programmable: 1, 2, 3, 5, 10, 12, 15, 20, 30, 60 minutes
Load profiles
-
Simultaneous recording of up to 16 (2x8) independent channels
-
Integration period is programmable: 1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30, 60 and 1440 minutes
-
Data storage depth: depending on the number of recorded channels and integration period, for example 210 days (8 channels, 30 minutes)
Display
Multi-segment LCD, programmable message sequence
Communication interfaces
-
4 control or pulse outputs (programmable)
-
RS-232 or RS-485 interface
-
Optical interface
Tariff parameters
-
8 tariff rates
-
16 switching moments per day
-
24 daily profiles
-
12 seasons
-
100 separately programmable exclusion dates
-
automatic switch to summer/winter time
Own consumption:
-
in current circuits
-
in voltage circuits
-
less than 0.1 VA
-
less than 1.9 VA or 0.7 W
Operating temperature range
-40°C... +60°C
Weight
no more than 1.9 kg
Dimensions
283x174x68 mm
Package contents:
-
Meter
-
Manual
-
Calibration certificate (on request)
Published on 2026/10/11
Description
Electronic multifunction electricity meter by Itron, ACE 6000 is designed to determine active and reactive power in both directions in three- and four-wire alternating current circuits of industrial frequency in multi-tariff modes. This meter allows accounting of generated energy from a solar photovoltaic station that is sold under the green tariff.
Technical specifications:
Operating voltage range
From 3x57.7/100V to 3x240/415V, automatic adjustment
Operating current range
for transformer-connected meter
1A... 10A
Connection type
transformer-connected meter
3- or 4-wire connection, connection method is programmable
Accuracy class
transformer-connected meter
Class 0.5s
Frequency
50 Hz
Measured parameters
-
Active, reactive, apparent energy and power in one or two directions
-
Instantaneous, minimum, maximum, effective values of frequency, phase voltages and currents, power factor
-
Maximum number of measurement channels: 10 for energy, 10 for power
-
Voltage quality parameter monitoring
Power integration period
Programmable: 1, 2, 3, 5, 10, 12, 15, 20, 30, 60 minutes
Load profiles
-
Simultaneous recording of up to 16 (2x8) independent channels
-
Integration period is programmable: 1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30, 60 and 1440 minutes
-
Data storage depth: depending on the number of recorded channels and integration period, for example 210 days (8 channels, 30 minutes)
Display
Multi-segment LCD, programmable message sequence
Communication interfaces
-
4 control or pulse outputs (programmable)
-
RS-232 or RS-485 interface
-
Optical interface
Tariff parameters
-
8 tariff rates
-
16 switching moments per day
-
24 daily profiles
-
12 seasons
-
100 separately programmable exclusion dates
-
automatic switch to summer/winter time
Own consumption:
-
in current circuits
-
in voltage circuits
-
less than 0.1 VA
-
less than 1.9 VA or 0.7 W
Operating temperature range
-40°C... +60°C
Weight
no more than 1.9 kg
Dimensions
283x174x68 mm
Package contents:
-
Meter
-
Manual
-
Calibration certificate (on request)
