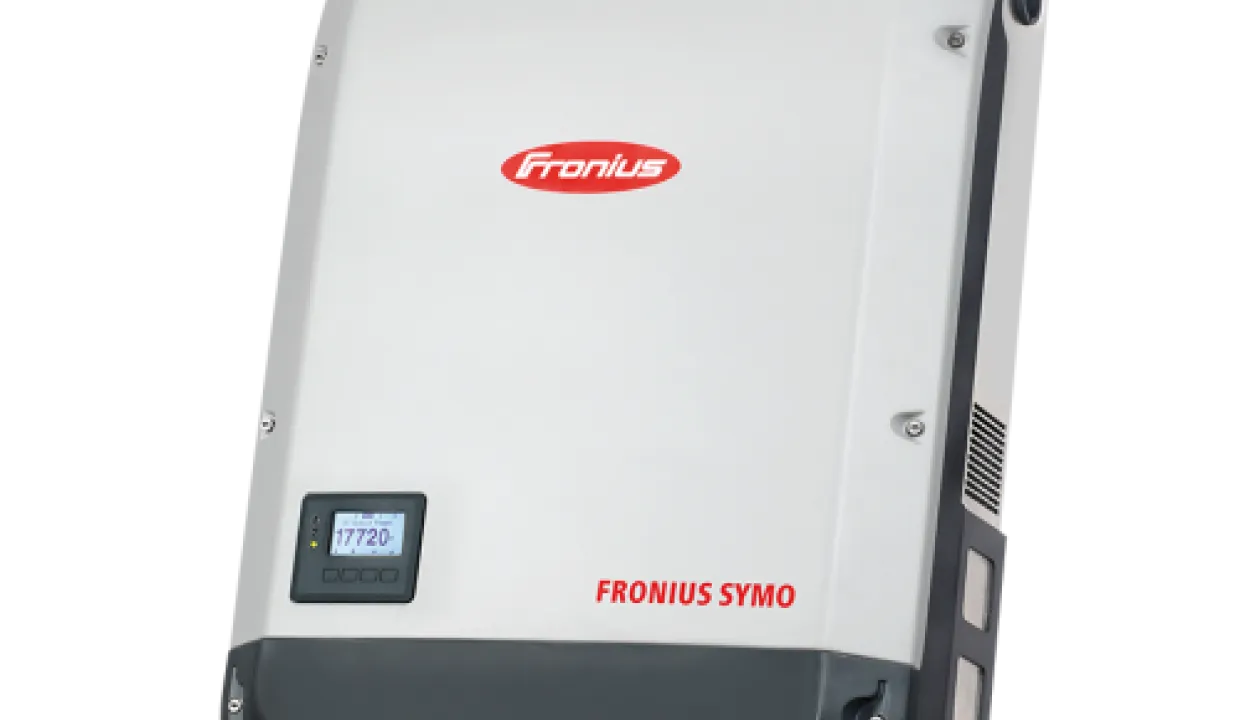

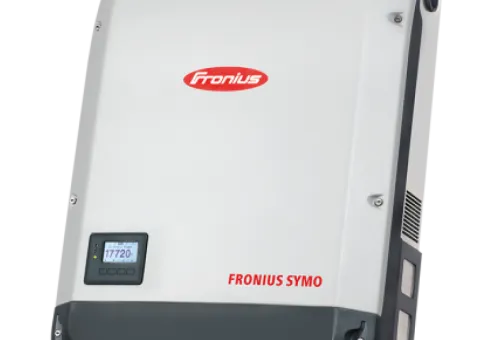

Grid-tied inverter Fronius Symo 15.0-3-M
146,455 ₴
Published 4 days ago by Solar-Tech
146,455 ₴
In Generators category
вул. Стеценка, 14/44, Київ, Україна
Get directions →
33 item views
Grid-tied inverter Fronius Symo 15.0-3-M — a three-phase transformerless inverter for systems of any size. High system voltage, wide input voltage range and two MPPT trackers provide maximum flexibility in system design. Standard Internet connection interface via WLAN or Ethernet and ease of integrating third-party components make the Fronius Symo one of the most communicative inverters on the market.
Technical specifications:
DC input characteristics
Max. input current, (A)
33.0 / 27.0
Max. short-circuit current, (A)
51.0
Min. input voltage, (V)
200
Min. voltage for inverter start-up, (V)
200
Nominal voltage, (V)
600
Max. voltage, (V)
1000
Maximum power point tracking voltage range, (V)
320 - 800
No. of MPPT trackers / No. of inputs
2 / 3+3
AC output characteristics
Nominal output power, (W)
15000
Max. output power, (VA)
15000
Max. AC output current, (A)
21.7
AC output voltage, (V)
380/220 (+20 % / -30 %)
AC output frequency, (Hz)
50 / 60 ±5
THDi
< 1.5 %
cos phi
0.85 - 1
Other characteristics
Dimensions W×H×D, (mm)
725×510×225
Weight, (kg)
43.4
Operating temperature range, (ºC)
-25 ... +60
Protection class IP
IP65
Own consumption, night, (W)
< 1
Features:
-
Suitable for all module technologies because it has galvanic isolation;
-
Has 2 MPPT trackers, which allows placing arrays of solar panels on two different planes while maintaining their maximum efficient operation;
-
Simple hanging system for quick and easy installation;
-
Low weight and compact dimensions;
-
Possibility of indoor and outdoor installation (Protection class IP 65);
-
Integrated data logging function;
-
Easy Internet connection via WLAN and Ethernet;
-
High device efficiency.
Published on 2026/10/11
Description
Grid-tied inverter Fronius Symo 15.0-3-M — a three-phase transformerless inverter for systems of any size. High system voltage, wide input voltage range and two MPPT trackers provide maximum flexibility in system design. Standard Internet connection interface via WLAN or Ethernet and ease of integrating third-party components make the Fronius Symo one of the most communicative inverters on the market.
Technical specifications:
DC input characteristics
Max. input current, (A)
33.0 / 27.0
Max. short-circuit current, (A)
51.0
Min. input voltage, (V)
200
Min. voltage for inverter start-up, (V)
200
Nominal voltage, (V)
600
Max. voltage, (V)
1000
Maximum power point tracking voltage range, (V)
320 - 800
No. of MPPT trackers / No. of inputs
2 / 3+3
AC output characteristics
Nominal output power, (W)
15000
Max. output power, (VA)
15000
Max. AC output current, (A)
21.7
AC output voltage, (V)
380/220 (+20 % / -30 %)
AC output frequency, (Hz)
50 / 60 ±5
THDi
< 1.5 %
cos phi
0.85 - 1
Other characteristics
Dimensions W×H×D, (mm)
725×510×225
Weight, (kg)
43.4
Operating temperature range, (ºC)
-25 ... +60
Protection class IP
IP65
Own consumption, night, (W)
< 1
Features:
-
Suitable for all module technologies because it has galvanic isolation;
-
Has 2 MPPT trackers, which allows placing arrays of solar panels on two different planes while maintaining their maximum efficient operation;
-
Simple hanging system for quick and easy installation;
-
Low weight and compact dimensions;
-
Possibility of indoor and outdoor installation (Protection class IP 65);
-
Integrated data logging function;
-
Easy Internet connection via WLAN and Ethernet;
-
High device efficiency.
