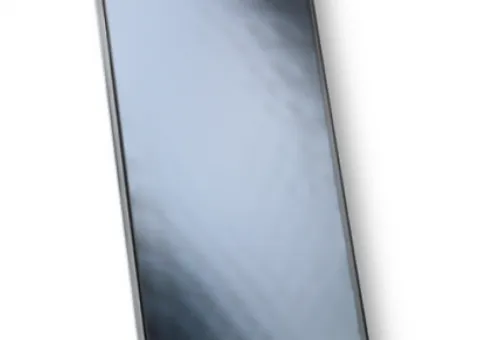

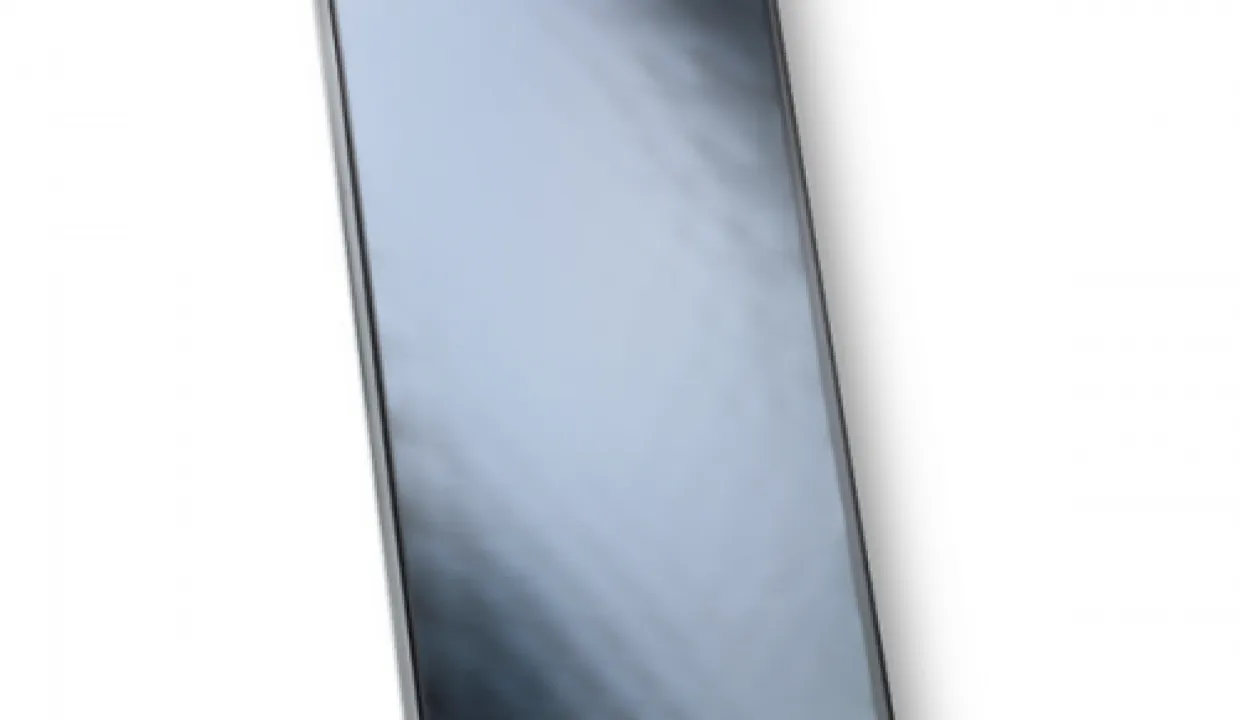

Flat solar collector VIESSMANN VITOSOL 100-F type SV1B (for coastal regions)

38,750 ₴

Other

Sunday 11:55

Україна

Київ Get directions →

вул. Стеценка, 14/44

22 views

Published 4 days ago by Solar-Tech

38,750 ₴

In Other category

вул. Стеценка, 14/44, Київ, Україна

Get directions →

22 item views

Vitosol 100-F type SV1B - a powerful flat collector with ThermProtect absorber-layer connection, for vertical mounting for coastal regions with a special anti-corrosion absorber coating.

The powerful flat collector Vitosol 100-F, supplied in a silver-colored frame, will be an ideal addition to any heating system. With an absorber area of 2.3 m² these collectors will suit consumers with various energy needs.

On average over a year they cover up to 60 percent of the energy required for domestic hot water and provide support for space heating. In combination with a condensing boiler, thanks to the free energy of the Sun, you can save more than a third of the energy used for heating and domestic hot water over the year.

Advantages:

No surface overheating or steam formation at low heat output

High coverage percentage of heating and domestic hot water support thanks to solar energy

Universal design for installation on pitched or flat roofs, roof integration or facade mounting

Powerful flat collector with ThermProtect absorber-layer connection

Horizontal and vertical mounting possible

The powerful flat collectors Vitosol 100-F will be an ideal addition to any heating system. With an absorber area of 2.3 m² they are suitable for consumers with any level of demand.

On an annual basis they cover up to 60 percent of the energy required for domestic hot water and contribute to space heating. When operating together with a condensing boiler, thanks to the free energy of the sun, these collectors allow saving even one third of the energy required for heating and producing hot water over the year.

ThermProtect protects against overheating

The "smart" absorber layer protects the collectors from overheating. The ThermProtect technology, patented by Viessmann, blocks the collector's uptake of further energy when a certain temperature level is reached.

ThermProtect allows the Vitosol 100-FM to achieve higher performance compared to conventional collectors. When the limit temperature is exceeded, the crystalline structure of the absorbing layer changes, its heat release increases many times, and the collector power decreases. As a result, the so-called stagnation temperature becomes significantly lower and steam does not form in the solar circuit.

As the collector temperature decreases, the crystalline structure returns to its original state. The absorber again absorbs more than 95 percent of the received solar energy, converting it into useful heat. Only a small portion - about five percent - is reflected back. Such changes in the crystalline structure can be repeated an unlimited number of times - the working qualities of the collector will not deteriorate.

Always tight and with high-quality thermal insulation

The aluminum frame, folded at the edges, and the seamless edging of the collector itself ensure long-term tightness and high structural stability. The collector's back wall is impact- and corrosion-resistant. High-quality thermal insulation significantly reduces heat losses, especially in cold weather.

Easy installation

The collectors are very easy to install. Integrated supply and return header pipes allow reliable installation of large areas from many modules using a flexible stainless steel plug connector. Up to twelve solar collectors are easily connected to each other.

The flat collectors are universal for installation on roofs, for integration into the roof surface, or for raised installation on flat roofs. Viessmann's quick-mount system consists of components that withstand static loads and are protected against corrosion, made of stainless steel and aluminum.

Technical specifications of the flat collector VIESSMANN VITOSOL 100-F type SV1B:

Collector area, (m² )

2.51

Absorber area, (m²)

2.32

Optical, (efficiency %)

74.3

Dimensions: WidthXHeightXDepth, (mm)

1056x2038x72

Mass without fluid, (kg)

Fluid/heat carrier volume, (l)

1.67

Permissible operating pressure, (bar)

Max. stagnation temperature, (°C)

221

Connection, (Ø mm)

Number of connections

Frame material

aluminum

Absorber material
