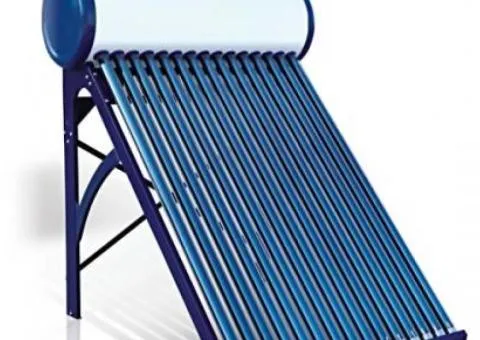

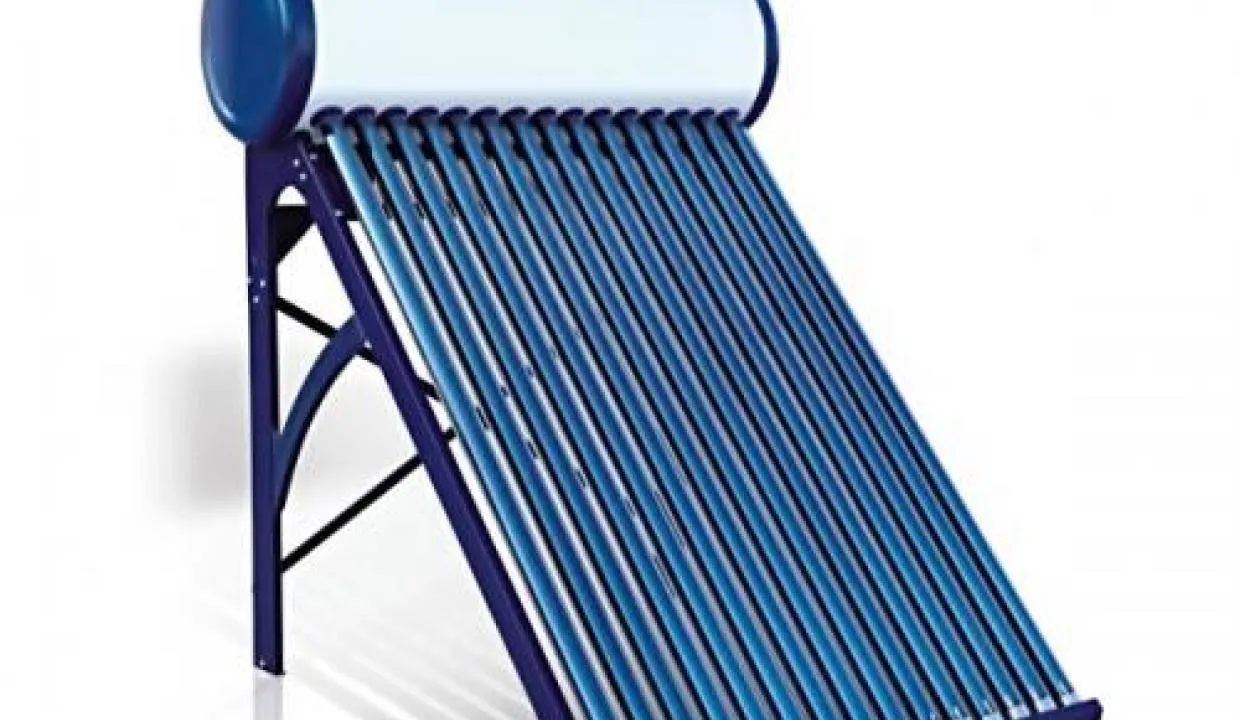

Heliosystem AXIOMA AX-20
24,009 ₴
Published 4 days ago by Solar-Tech
24,009 ₴
In Other category
вул. Стеценка, 14/44, Київ, Україна
Get directions →
7 item views
Non-pressurized thermosiphon solar collector AXIOMA AX-20 is used in seasonal water heating systems. This solar collector is used to provide hot water for a private house, dacha, recreation base. Vacuum tubes are coated with a three-layer high-selectivity coating ALN-AIN-SS/Cu.
Catalog of solar collectors
Technical specifications:
Model
AX-10
AX-20
AX-30
Vacuum tubes
Number of tubes, (pcs)
10
20
30
High-selectivity coating
three-layer, ALN-AIN-SS/Cu
Vacuum tube dimensions, (mm)
58x1800
Aperture area, (m2)
0.94
1.86
2.79
Storage tank
Tank capacity, (l)
100
200
300
Outer tank parameters
painted steel, 0.4 mm
Inner tank parameters
food-grade stainless steel, 0.5 mm
Thermal insulation
polyurethane foam, 50 mm
Heating element (TEN)
option
Connections
1/2"
Make-up tank capacity, (l)
5
Tank dimensions, (mm)
1120x560x560
1980x560x560
2830x560x560
Frame
Material
painted steel with galvanic coating
Angle of inclination, (°)
45
Dry weight of collector, (kg)
40
71
98
Diagram of the solar collector tank:
1 – air vent tube
2 – cold water supply
3 – make-up tank
4 – hot water outlet
5 – input for sensor controller (controller is not included in the basic package)
6 – drain of water from the tank
7 – heating element (not included in the basic package)
Additional options
Price, ($)
Controller TK-7
45
Heating element (TEN), 1.5 kW
17
Magnesium anode
8
Read morePublished on 2026/10/11
Description
Non-pressurized thermosiphon solar collector AXIOMA AX-20 is used in seasonal water heating systems. This solar collector is used to provide hot water for a private house, dacha, recreation base. Vacuum tubes are coated with a three-layer high-selectivity coating ALN-AIN-SS/Cu.
Catalog of solar collectors
Technical specifications:
Model
AX-10
AX-20
AX-30
Vacuum tubes
Number of tubes, (pcs)
10
20
30
High-selectivity coating
three-layer, ALN-AIN-SS/Cu
Vacuum tube dimensions, (mm)
58x1800
Aperture area, (m2)
0.94
1.86
2.79
Storage tank
Tank capacity, (l)
100
200
300
Outer tank parameters
painted steel, 0.4 mm
Inner tank parameters
food-grade stainless steel, 0.5 mm
Thermal insulation
polyurethane foam, 50 mm
Heating element (TEN)
option
Connections
1/2"
Make-up tank capacity, (l)
5
Tank dimensions, (mm)
1120x560x560
1980x560x560
2830x560x560
Frame
Material
painted steel with galvanic coating
Angle of inclination, (°)
45
Dry weight of collector, (kg)
40
71
98
Diagram of the solar collector tank:
1 – air vent tube
2 – cold water supply
3 – make-up tank
4 – hot water outlet
5 – input for sensor controller (controller is not included in the basic package)
6 – drain of water from the tank
7 – heating element (not included in the basic package)
Additional options
Price, ($)
Controller TK-7
45
Heating element (TEN), 1.5 kW
17
Magnesium anode
8
