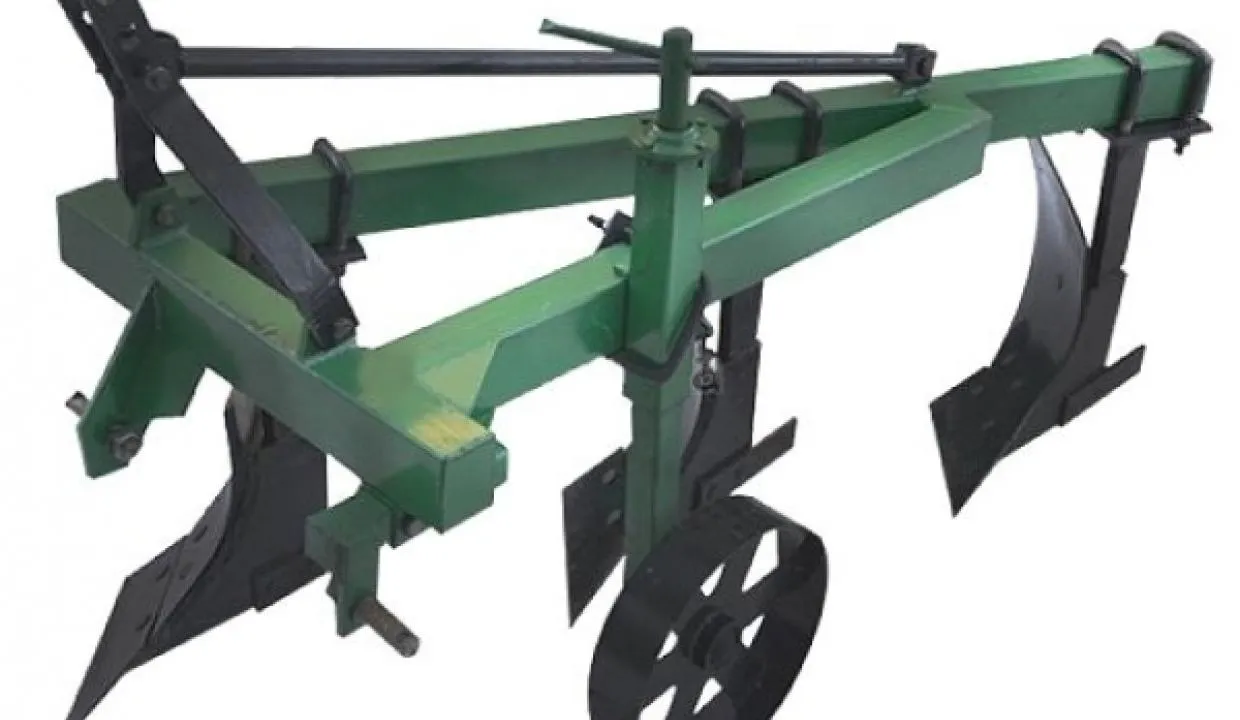

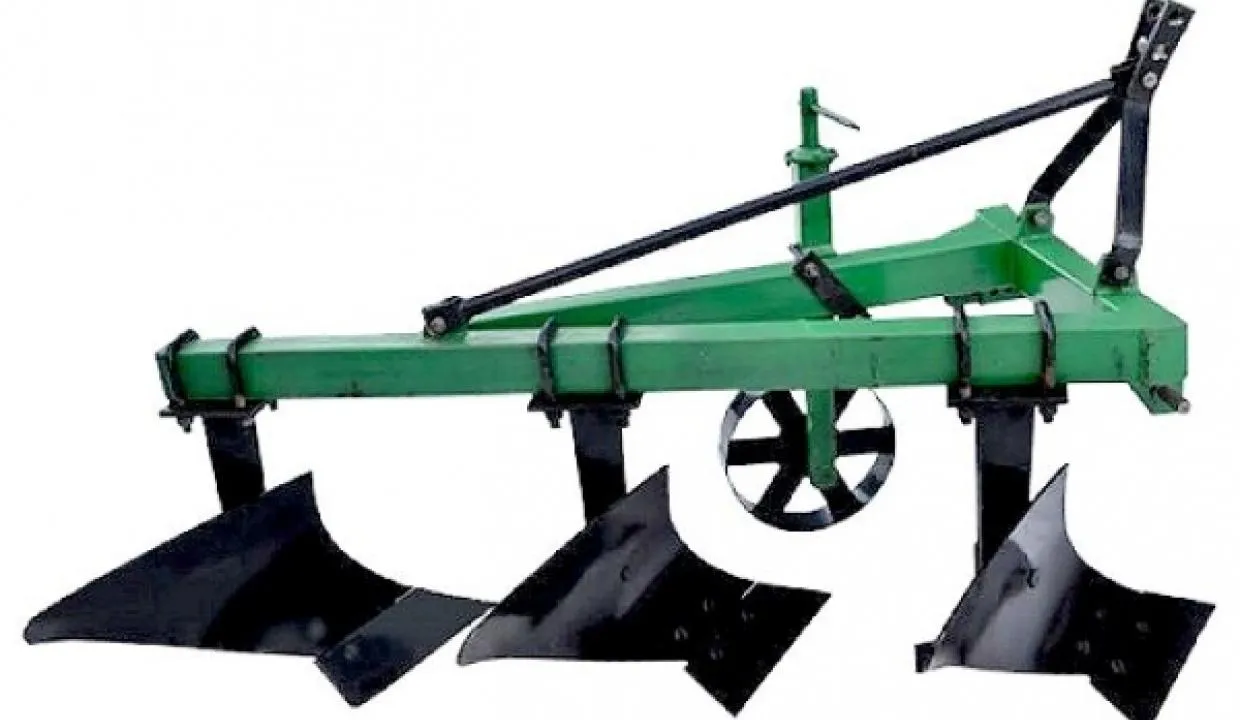

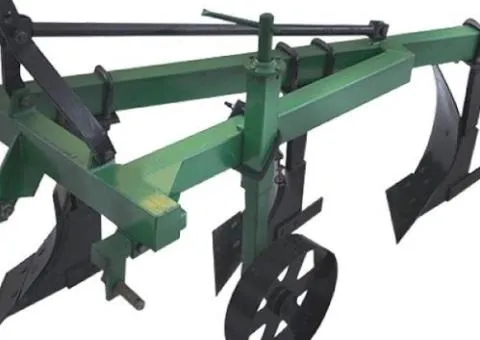

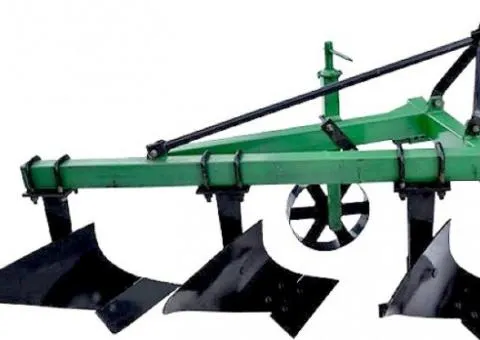

Three-share plow for mini tractor PLN-3-20
Light, maneuverable three-share plow for mini tractor PLN-3-20 is equipped with three steel working units - shares, fastened with bolt connections to standards (height 45 cm) mounted on a metal frame made of square profile tube using special clamps.
All three shares with which our plow pln 3 20 is equipped have a steel moldboard and share; if one of the elements loses its operational qualities, these parts are easily replaced with new ones. The share design is conceived so that the coulter can penetrate up to 20 cm, and the cut soil with remnants of crops and weeds is partially crumbled before the furrow reaches the moldboard. The soil coming to the moldboard is well loosened, plants are shredded, the soil slice is completely overturned and then dumped into the furrow. Thus, deep burial of plant residues occurs, the soil is saturated with moisture and oxygen, and plants decomposed over the winter become nourishing compost.
With high productivity, up to 0.22 - 0.55 ha/h, the 3-share plow for a mini-tractor PLN-3-20 is achieved when working with mini-tractors with power from 22 horsepower. On the agricultural machine that couples, the plow 3 by 20 under consideration is attached by a three-point hitch. Thus, the working width of the three shares is 60 cm. The device handles soils of varying complexity well; the working depth can be adjusted depending on the features of the plot relief using the screw mechanism on the support wheel.
Three-share plow for mini tractor PLN-3-20: main advantages of the product
Has good maneuverability.
Adjustable plowing depth.
Distinguished by high productivity.
Equipped with three durable steel shares.
Coupling vehicle: mini tractor
Power of coupling vehicle, hp: from 22
Weight, kg: 90
Working width, m: 0.6
Share type: right
Number of shares, pcs: 3-share
Soil cultivation depth, mm: 200
Distance between shares, mm: 500
Published on 2026/10/11
Light, maneuverable three-share plow for mini tractor PLN-3-20 is equipped with three steel working units - shares, fastened with bolt connections to standards (height 45 cm) mounted on a metal frame made of square profile tube using special clamps.
All three shares with which our plow pln 3 20 is equipped have a steel moldboard and share; if one of the elements loses its operational qualities, these parts are easily replaced with new ones. The share design is conceived so that the coulter can penetrate up to 20 cm, and the cut soil with remnants of crops and weeds is partially crumbled before the furrow reaches the moldboard. The soil coming to the moldboard is well loosened, plants are shredded, the soil slice is completely overturned and then dumped into the furrow. Thus, deep burial of plant residues occurs, the soil is saturated with moisture and oxygen, and plants decomposed over the winter become nourishing compost.
With high productivity, up to 0.22 - 0.55 ha/h, the 3-share plow for a mini-tractor PLN-3-20 is achieved when working with mini-tractors with power from 22 horsepower. On the agricultural machine that couples, the plow 3 by 20 under consideration is attached by a three-point hitch. Thus, the working width of the three shares is 60 cm. The device handles soils of varying complexity well; the working depth can be adjusted depending on the features of the plot relief using the screw mechanism on the support wheel.
Three-share plow for mini tractor PLN-3-20: main advantages of the product
Has good maneuverability.
Adjustable plowing depth.
Distinguished by high productivity.
Equipped with three durable steel shares.
Coupling vehicle: mini tractor
Power of coupling vehicle, hp: from 22
Weight, kg: 90
Working width, m: 0.6
Share type: right
Number of shares, pcs: 3-share
Soil cultivation depth, mm: 200
Distance between shares, mm: 500
