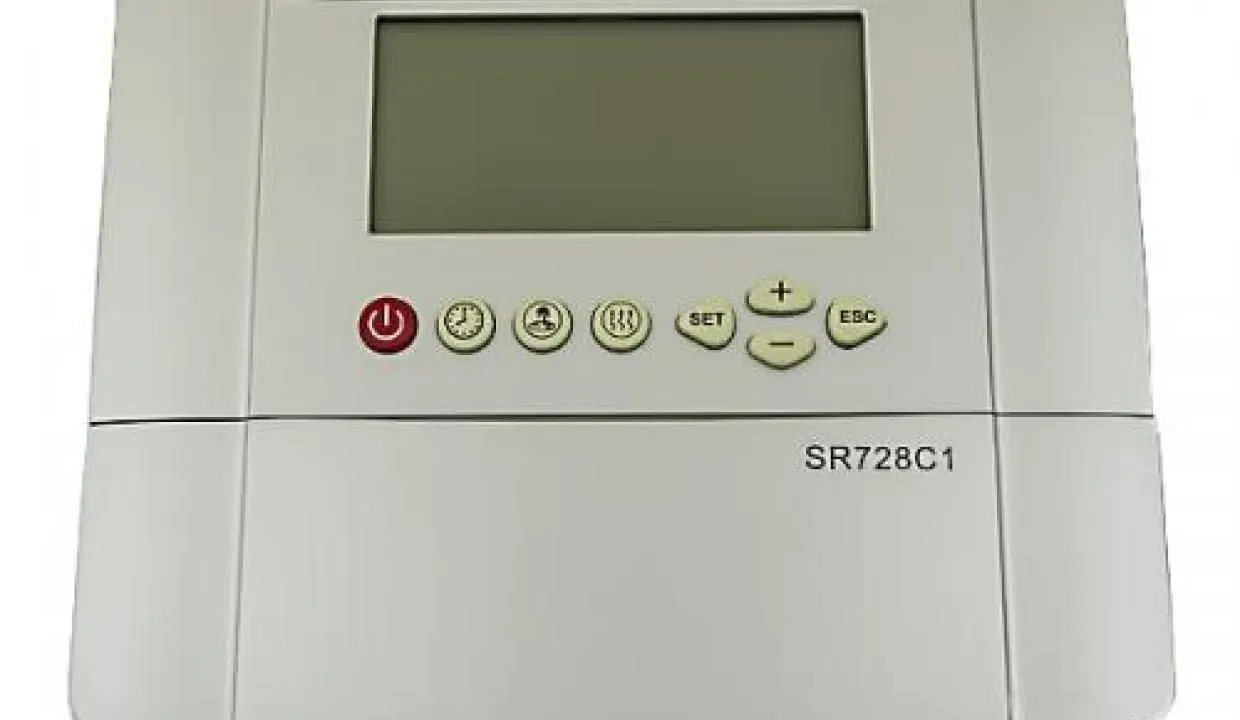

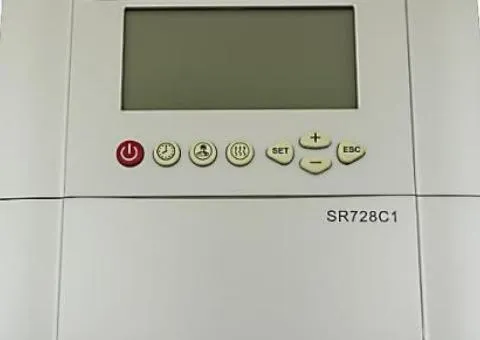

Controller for solar systems CK728C1

10,419 ₴

Other

Sunday 11:55

Україна

Київ Get directions →

вул. Стеценка, 14/44

12 views

Published 4 days ago by Solar-Tech

10,419 ₴

In Other category

вул. Стеценка, 14/44, Київ, Україна

Get directions →

12 item views

Solar thermal controller – a mandatory control element for solar systems with forced circulation of the heat transfer fluid. It controls the process of heating the heat transfer fluid from the sun and monitors the condition of the heating system as a whole. Control of the solar system operation works as follows – the controller receives data from temperature sensors that are installed at the outlet of the solar collector and in the storage tank, analyzes them, and controls the circulation pump, which allows optimal electricity consumption.

Technical specifications:

Dimensions, (mm)

191х140х40

Power supply, (V)

AC110 / AC220

Consumption, (W)

< 3

Temperature measurement accuracy, (°C)

-/+2

Collector temperature measurement range, (°C)

-10…220

Tank temperature measurement range, (°C)

0…+110

Maximum pump power, (W)

5 pcs < 600

Inputs

2 pcs pt1000, 4 pcs ntc10k

Outputs (relays for pump, valve, heating element)

3.5 A

Operating temperatures, (°C)

-10 +50

Ingress protection class

IP40

Functions of the CK series controllers:

-
Manual control

-
Password setting

-
Return to factory settings

-
"Output" function

-
Manual heating function

-
Temperature indication

-
Memory protection

-
Water protection (auto shutdown)

-
Protection against incorrect connection

-
Error indication

Detailed list of controller functions:

Controller

CK728C1

Remote control capability (Internet)

Number of schemes (software algorithms)

Setting the temperature difference for switching on and off the solar circulation pump

Additional heating control function

Time-based recirculation

Stagnation temperature setting

Maximum collector temperature setting

Collector low temperature protection

Collector freeze protection

Tank cooling function

Max. tank 1 temperature setting

Max. tank 2 temperature setting

Max. tank 3 temperature setting

Maximum shutdown temperature (solid fuel boiler, heating "return" control, heat transfer between tanks)

Minimum switch-on temperature (solid fuel boiler, heating "return" control, heat transfer between tanks)

Maximum temperature during heat transfer

Minimum temperature during heat transfer

Temperature to start heat transfer from tank 1 to 2

Temperature to stop heat transfer from tank 1 to 2

Temperature to start heat transfer from tank 2 to 1

Temperature to stop heat transfer from tank 2 to 1

Setting temperature measurement units (Celsius-Fahrenheit)

"Antilegionella" function (Prevents bacteria growth in the storage tank by briefly heating the entire volume of water)

Control of recirculation start temperature

Control function for heating from a solid fuel boiler

Control of circulation pump speed

Standard temperature difference (for control of circulation pump speed)

Increase of circulation pump speed

Control of the second circulation pump speed

Standard temperature difference for the second pump

Increase of the second circulation pump speed

Measurement of collected thermal energy

Flow rate modification

Selection of heat transfer fluid type

Change of heat transfer fluid concentration

Setting priority logic between tanks

Heating duration

Heating time interval

Bypass (high temperature)

Storage tank cooling (analog BYPA)

Delay function for activation of the circulation pump

Interval function for pump operation (if there is no temperature sensor in the collector)

INtv function activation time

INtv function deactivation time

Time interval between circulation pump operations

Circulation pump run time between checks

Temperature difference of the circulation circuit

Selection of connected flow meter type

Recording data to miniCD flash drive

Recording interval to card

Setting temperature measurement units (analog C-F)

Thermostat function
