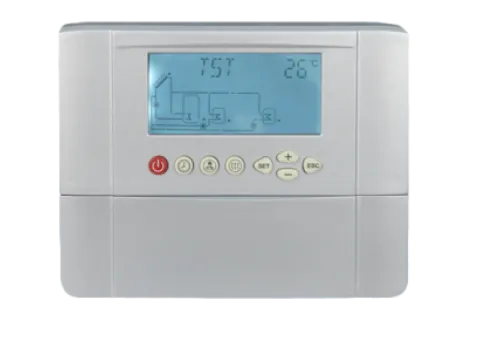

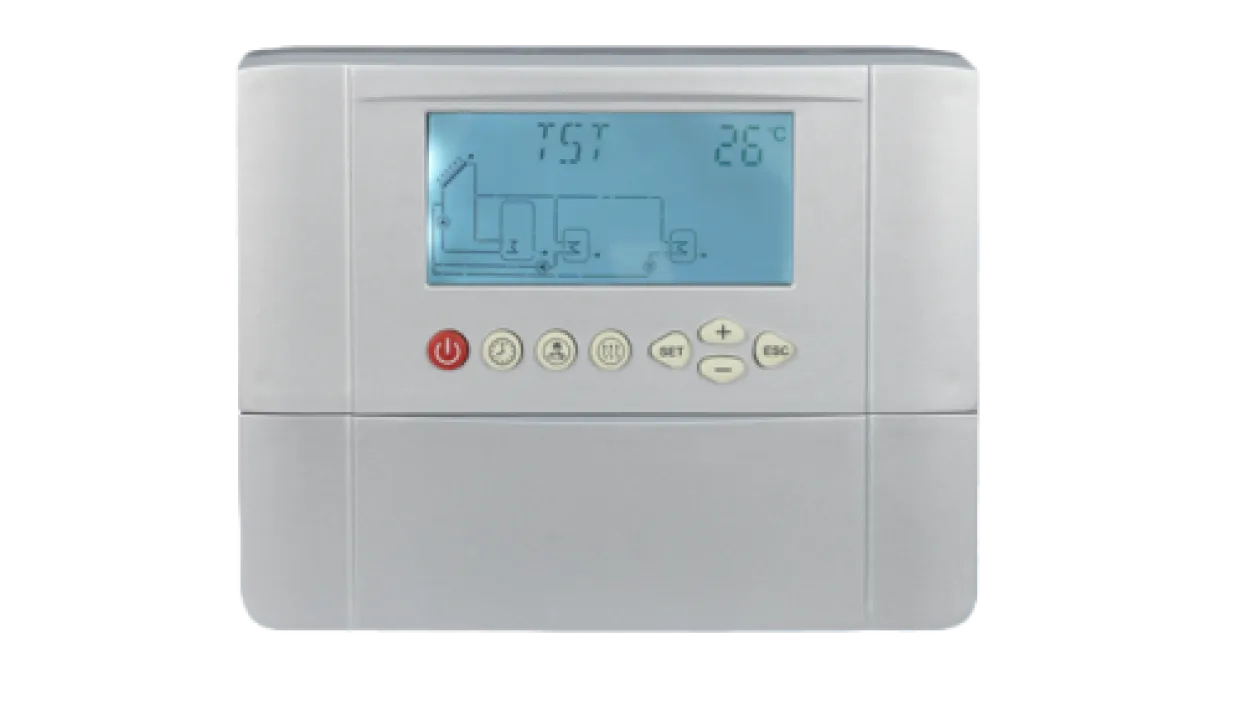

Controller for solar thermal systems SK988C1

15,493 ₴

Other

Sunday 11:55

Україна

Київ Get directions →

вул. Стеценка, 14/44

13 views

Published 4 days ago by Solar-Tech

15,493 ₴

In Other category

вул. Стеценка, 14/44, Київ, Україна

Get directions →

13 item views

Solar thermal controller – a mandatory control element for solar systems with forced circulation of the heat transfer fluid. It controls the process of heating the heat transfer fluid from the sun and monitors the condition of the heating system as a whole. Control of the solar system operates as follows – the controller receives data from temperature sensors that are installed at the outlet of the solar collector and in the storage tank, analyzes them, and controls the circulation pump, which allows optimal electricity consumption.

Technical specifications:

Dimensions, (mm)

200x155x45

Power supply, (V)

AC110 / AC220

Consumption, (W)

< 3

Temperature measurement accuracy, (°C)

-/+2

Collector temperature measurement range, (°C)

-10…220

Tank temperature measurement range, (°C)

0…+110

Maximum pump power, (W)

9 pcs < 200

Inputs

2 pcs pt1000, 10 pcs ntc10k

Outputs (relay for pump, valve, heating element)

3.5 A

Operating temperatures, (°C)

-10 +50

Ingress protection class

IP40

Functions of the SK series controllers:

-
Manual control

-
Password setting

-
Restore to factory settings

-
"Output" function

-
Manual heating function

-
Temperature indication

-
Memory protection

-
Water protection (auto shutdown)

-
Protection against incorrect connection

-
Error indication

Detailed list of controller functions:

Controller

CK988C1

Remote control capability (Internet network)

Number of schemes (software algorithms)

Setting the temperature difference for switching the solar circulation pump on and off

Additional heating control function

Recirculation by time

Stagnation temperature setting

Maximum collector temperature setting

Collector low temperature protection

Collector freeze protection

Tank cooling function

Set max. temperature of tank 1

Set max. temperature of tank 2

Set max. temperature of tank 3

Maximum shutdown temperature (solid fuel boiler, return heating control, heat transfer between tanks)

Minimum activation temperature (solid fuel boiler, return heating control, heat transfer between tanks)

Maximum temperature for heat transfer

Minimum temperature for heat transfer

Temperature to start heat transfer from tank 1 to tank 2

Temperature to stop heat transfer from tank 1 to tank 2

Temperature to start heat transfer from tank 2 to tank 1

Temperature to stop heat transfer from tank 2 to tank 1

Setting temperature measurement units (Celsius-Fahrenheit)

"Anti-Legionella" function (Prevents bacterial growth in the storage tank by briefly heating the entire volume of water)

Control of recirculation activation temperature

Solid fuel boiler heating control function

Control of circulation pump speed

Standard temperature difference (for controlling circulation pump speed)

Increase of circulation pump speed

Control of second circulation pump speed

Standard temperature difference for the second pump

Increase of second circulation pump speed

Measurement of collected thermal energy

Change of flow rate value

Selection of heat transfer fluid type

Change of heat transfer fluid concentration

Setting priority logic between tanks

Heating duration

Heating time interval

Bypass (high temperature)

Storage tank cooling (analog BYPA)

Delay function for circulation pump activation

Interval pump operation function (if no temperature sensor is installed in the collector)

Activation time of INTV function

Deactivation time of INTV function

Time interval between circulation pump operations

Circulation pump operation time between checks

Circulation circuit temperature difference

Selection of connected flow meter type

Data recording to miniCD flash drive

Recording interval to the card

Setting temperature measurement units (analog C-F)

Thermostat function
