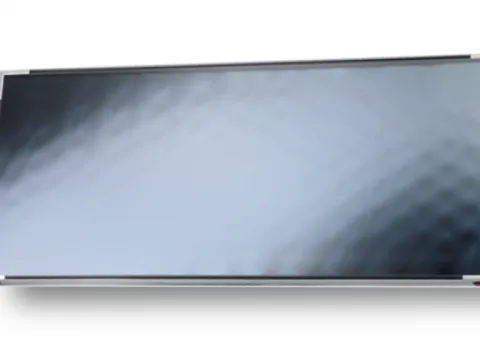

Flat solar collector VIESSMANN VITOSOL 100-F type SH1B (for coastal regions)

38,750 ₴

Other

Sunday 11:55

Україна

Київ Get directions →

вул. Стеценка, 14/44

20 views

Published 4 days ago by Solar-Tech

38,750 ₴

In Other category

вул. Стеценка, 14/44, Київ, Україна

Get directions →

20 item views

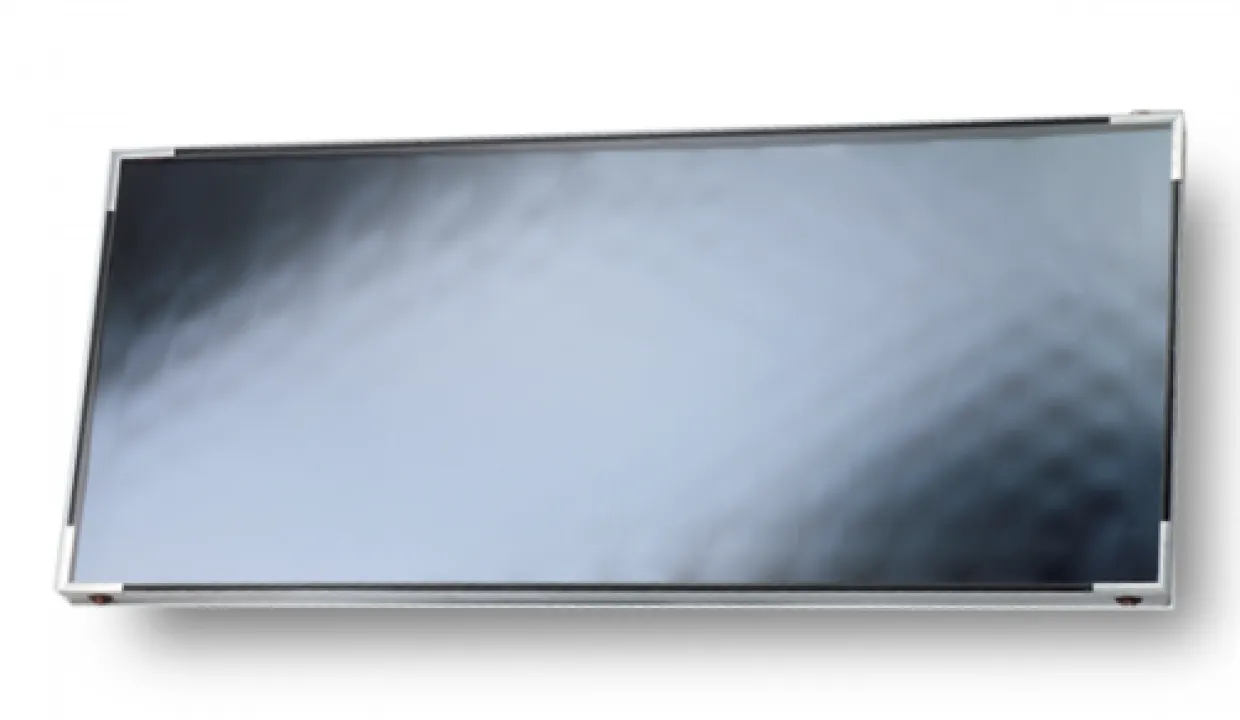

Vitosol 100-F type SH1B - a powerful flat collector with a ThermProtect absorber layer connection for horizontal installation and for coastal regions with anti-corrosion absorber coating.

The powerful flat collector Vitosol 100-F, supplied in a silver-colored frame, will become the ideal addition to any heating system. With an absorber area of 2.3 m² these collectors will suit consumers with varying energy needs.

On average over a year they cover up to 60 percent of the energy required for hot water supply and provide heating support. In combination with a condensing boiler, thanks to the Sun’s free energy, more than a third of the energy used for heating and hot water supply over the year can be saved.

Advantages:

No surface overheating or steam formation at low heat output

High percentage coverage of heating support and hot water needs by solar energy

Universal design for mounting on pitched or flat roofs, integration into the roof or installation on the facade

Powerful flat collector with ThermProtect absorber layer connection

Horizontal and vertical installation possible

The powerful flat collectors Vitosol 100-F will become the ideal addition to any heating system. With an absorber area of 2.3 m² they are suitable for consumers with any level of demand.

Over a year they cover up to 60 percent of the energy needed for hot water supply and contribute to heating. When operating together with a condensing boiler, thanks to the Sun’s free energy, these collectors allow saving even a third of the energy required for heating and producing hot water over the year.

ThermProtect protects against overheating

The "smart" absorber layer protects the collectors from overheating. The ThermProtect technology, patented by Viessmann, when a certain temperature level is reached blocks the collector from taking up further energy.

ThermProtect allows the Vitosol 100-F to achieve higher performance compared to conventional collectors. When the limit temperature is exceeded, the crystalline structure of the absorbing layer changes, its heat emission increases many times, and the collector’s power decreases. Because of this the so-called stagnation temperature becomes significantly lower, and steam does not form in the solar circuit.

As the collector temperature decreases, the crystalline structure returns to its original state. The absorber again absorbs more than 95 percent of the received solar energy, converting it into useful heat. Only a small portion - about five percent - is reflected back. Such a change in the crystalline structure can be repeated an unlimited number of times - the working qualities of the collector will not deteriorate.

Always tight and with high-quality thermal insulation

The aluminum frame, folded at the edges, and the seamless edging of the collector itself ensure long-term tightness and high structural stability. The rear wall of the collector is impact and corrosion resistant. High-quality thermal insulation significantly reduces heat loss, especially in cold weather.

Easy installation

The collectors are very easy to install. Built-in supply and return pipes allow reliable installation of large areas from many modules using a flexible stainless steel plug connector. Up to twelve solar collectors are easily connected to each other.

Flat collectors are versatile for roof mounting, for integration into the roof surface, or for raised installation on flat roofs. Viessmann’s quick mounting system consists of components that withstand static loads and are protected against corrosion, made of stainless steel and aluminum.

Technical characteristics of the flat collector VIESSMANN VITOSOL 100-F type SH1B:

Collector area (m²)

2.51

Absorber area (m²)

2.32

Optical (efficiency, %)

74.3

Size: WidthXHeightXDepth (mm)

2380x1056x72

Weight without fluid (kg)

Fluid/heat transfer medium volume (l)

1.67

Permissible working pressure (bar)

Max. stagnation temperature (°C)

221

Connection (Ø mm)

Number of connections

Frame material

aluminum

Absorber material
