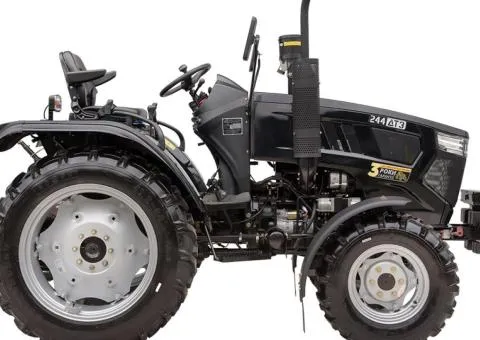

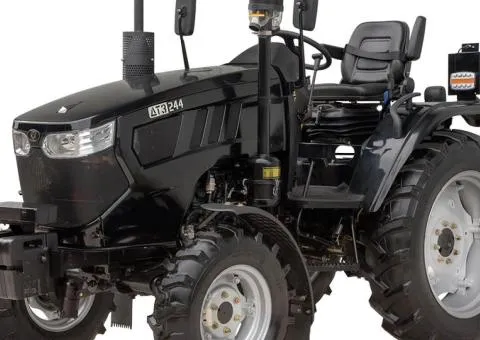

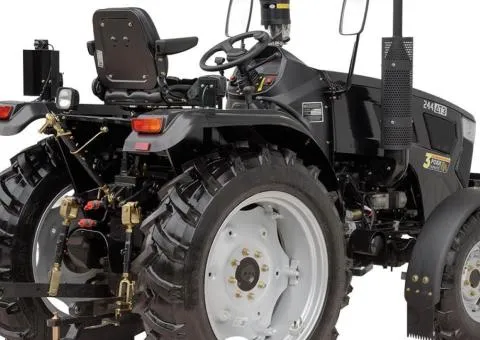

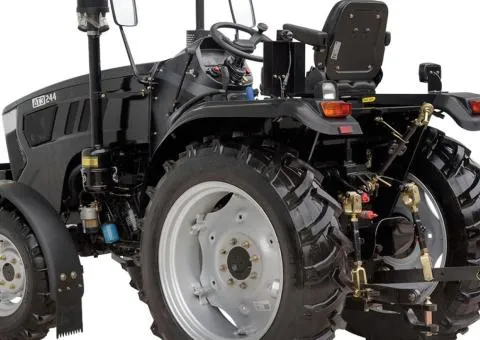

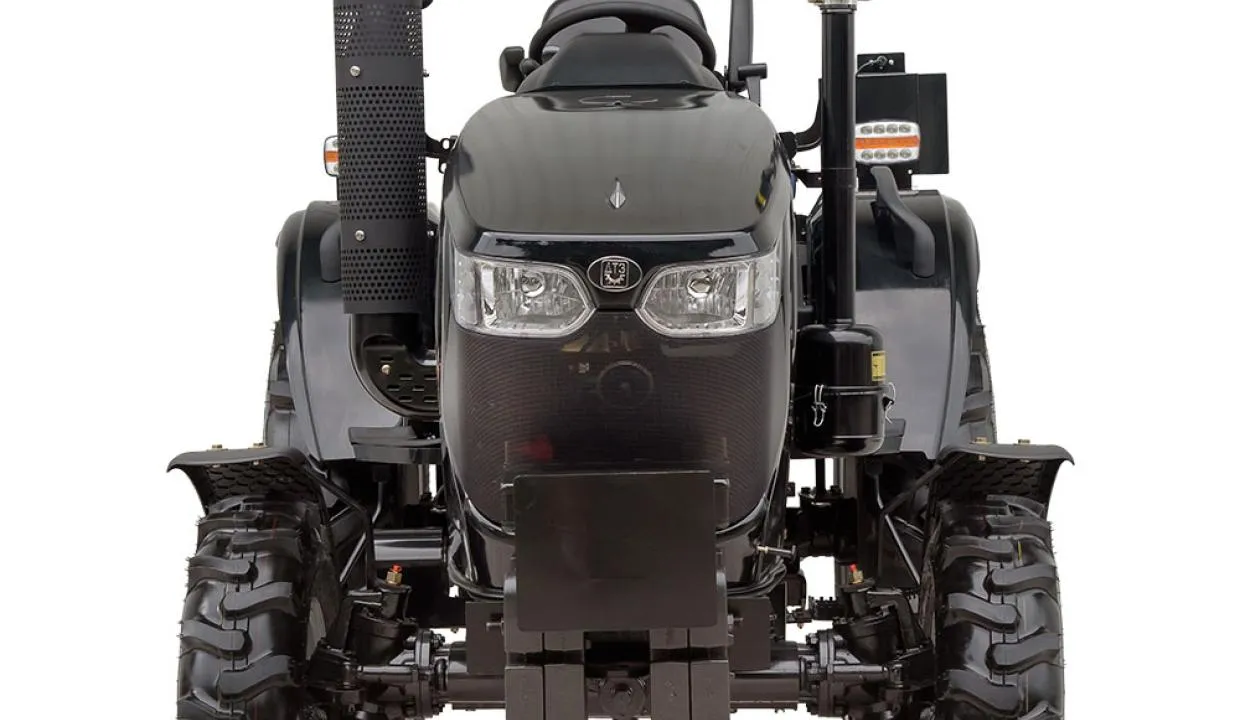

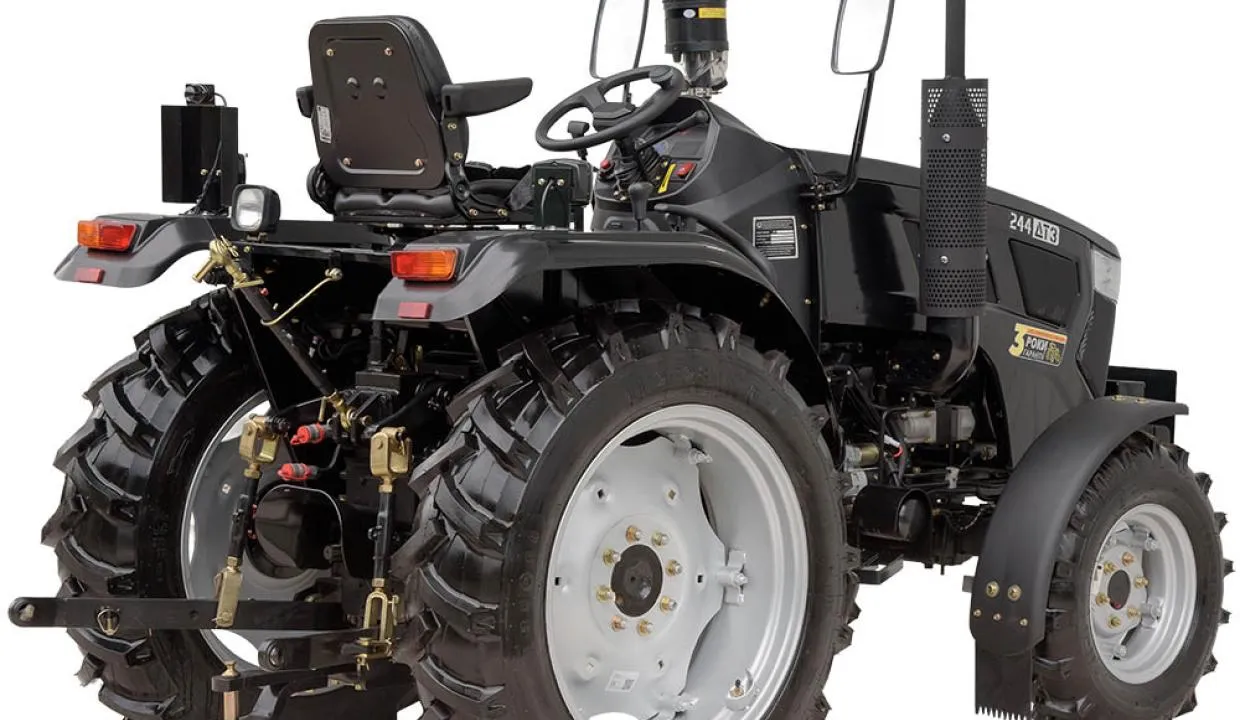

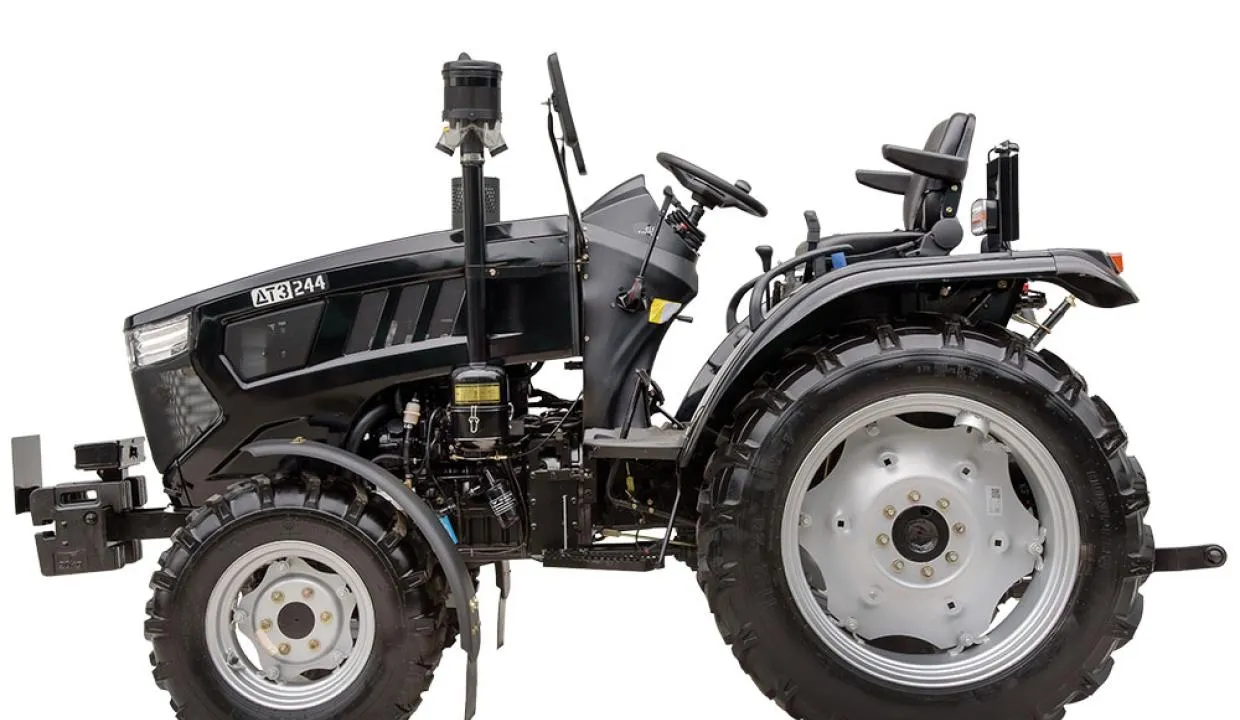

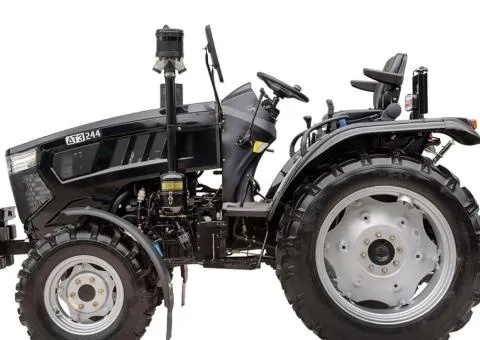

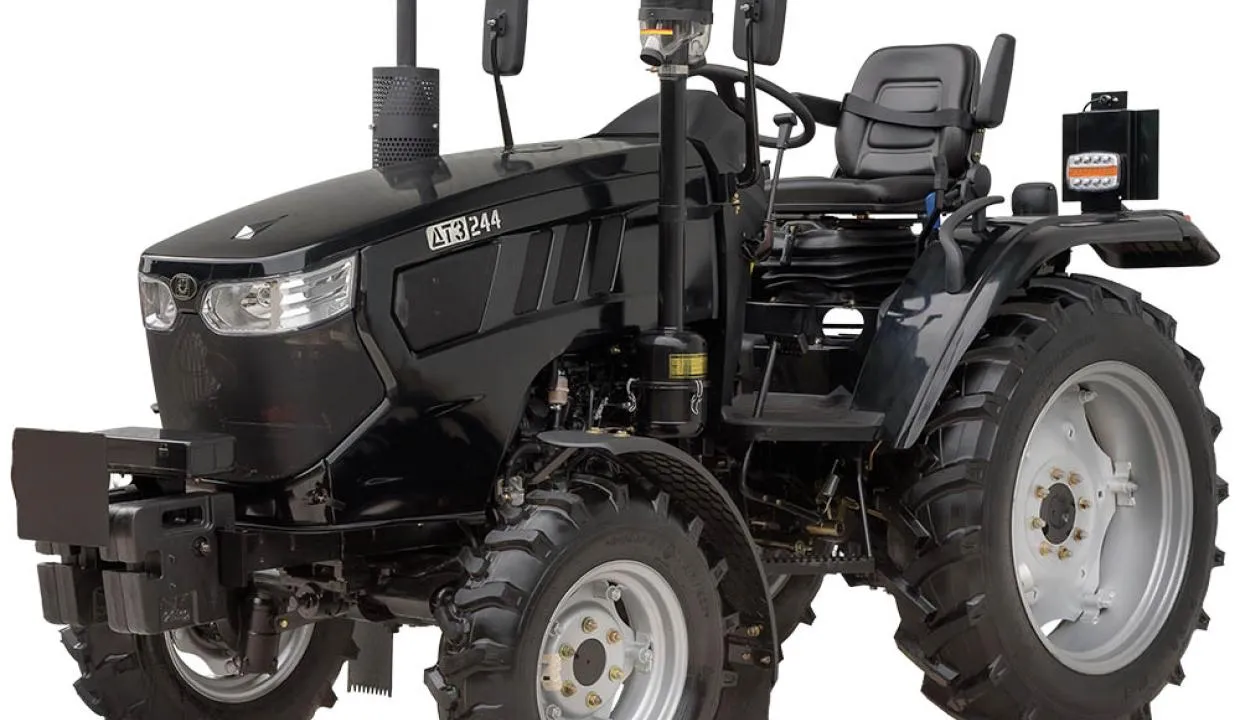

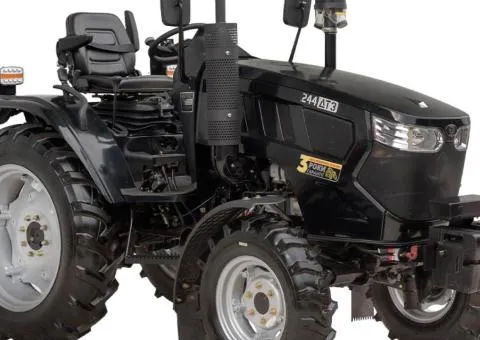

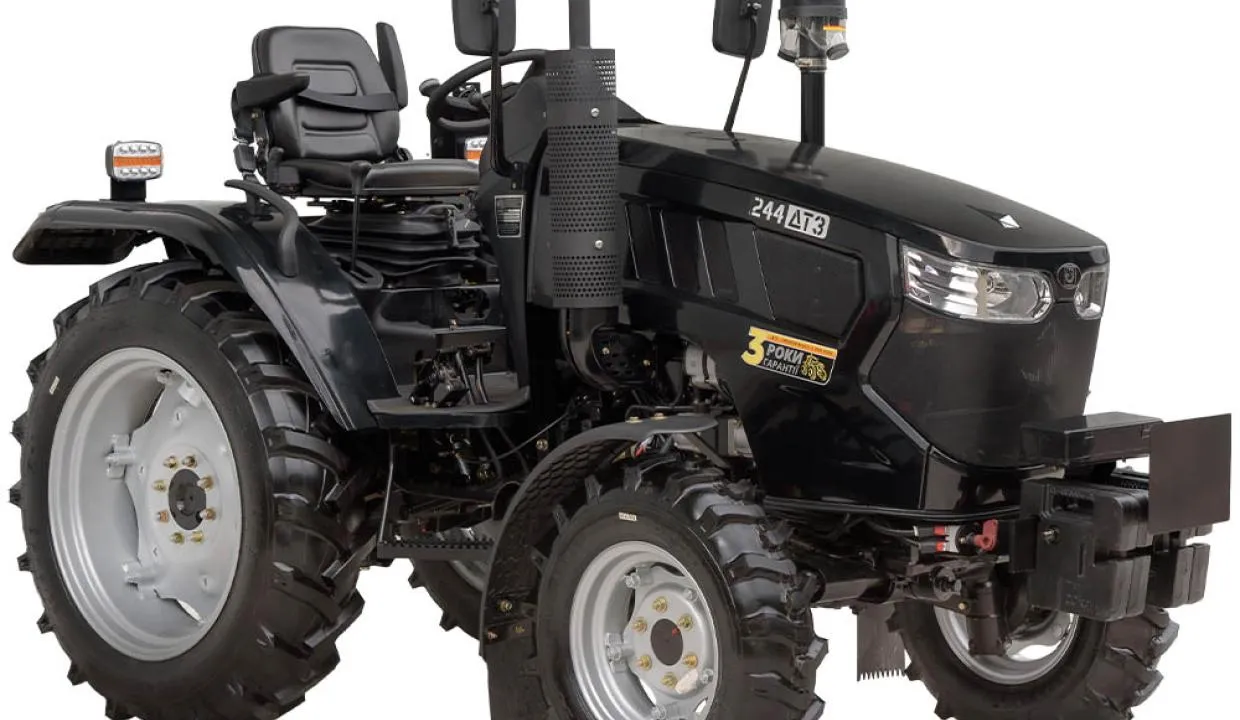

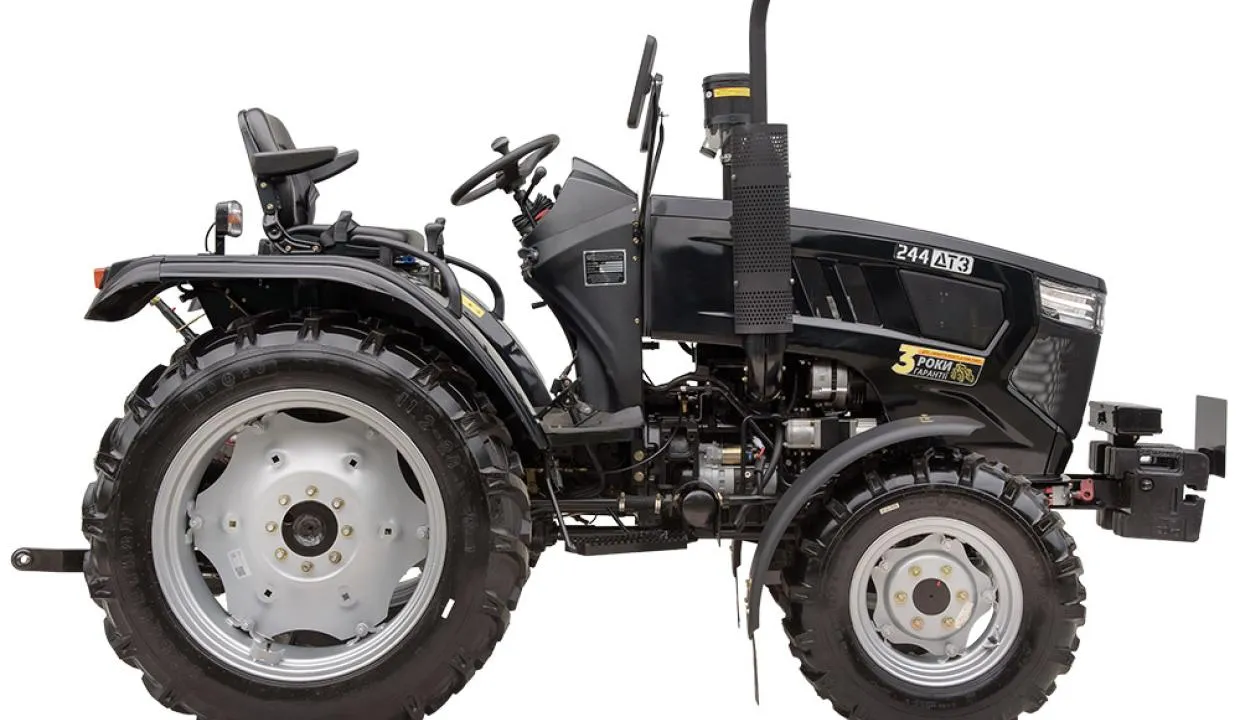

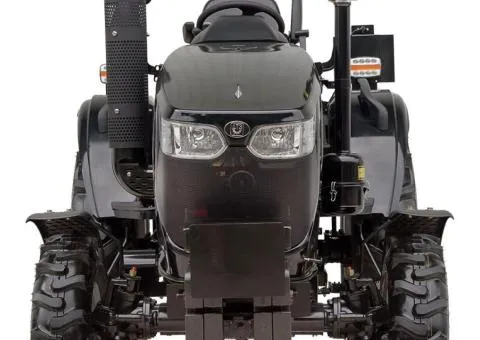

Tractor DTZ 244

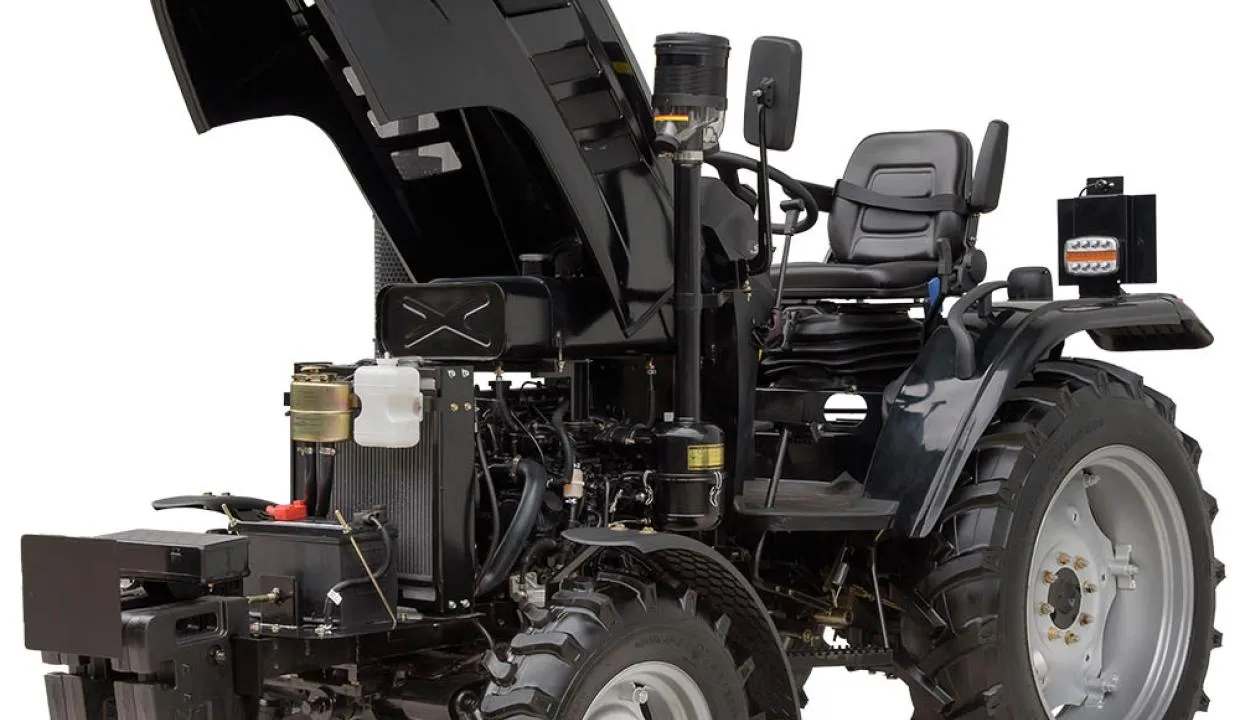

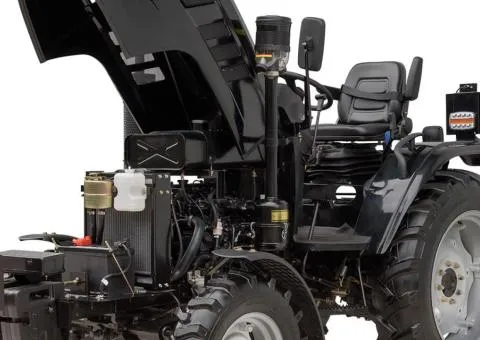

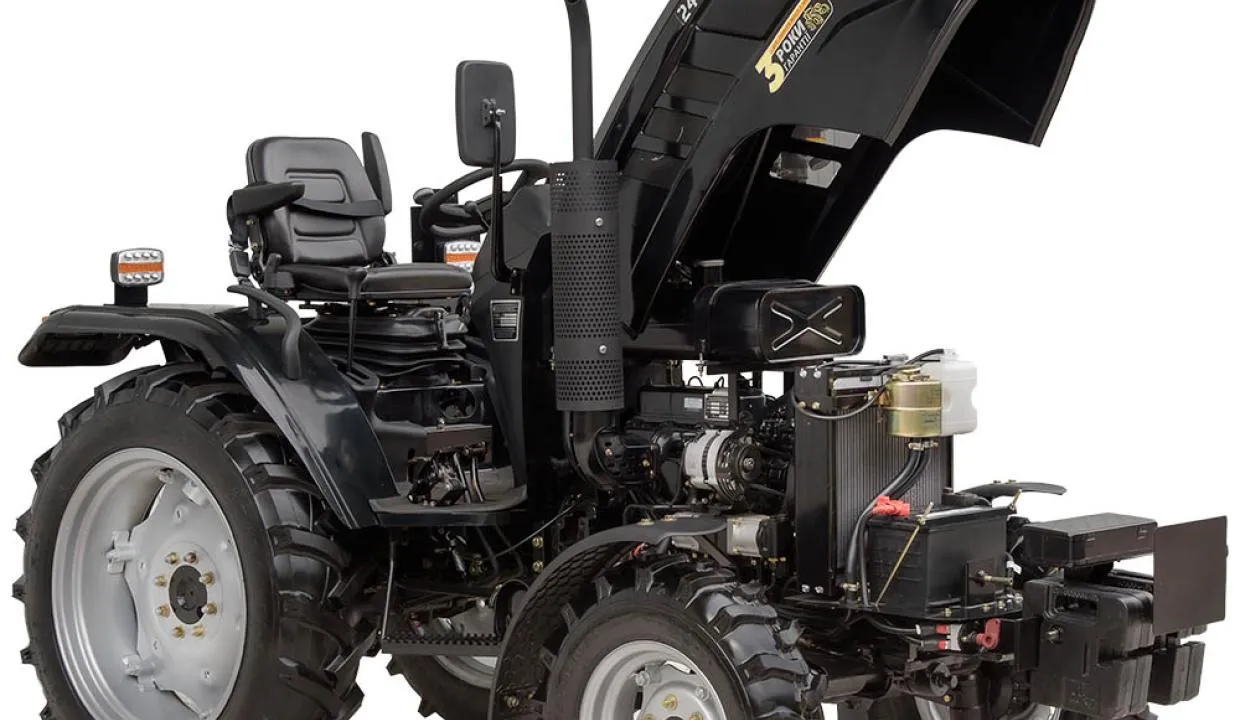

Tractor DTZ 244 — reliability that does not fail in the field Difficult weather conditions, slipping on wet soil — these realities are well known to every farmer. It is for such situations that the DTZ 244 tractor was created — a mini tractor capable of working in conditions where other machinery stops. Powerful, durable, technologically equipped — it will not let you down at a critical moment. Engine with power reserve At the heart of the model is the DD390 diesel 3-cylinder engine with a displacement of 1909 cm³. Power of 24 hp is optimal for sowing, cultivating, harrowing and towing. Direct injection provides even traction, and the contact-oil air filter with a cyclone and mesh prevents engine wear in dusty environments. Transmission that answers all challenges The DTZ tractor has a gear transmission with reverse and a wide range of gears — 9 forward and 9 reverse. Separate brakes with synchronization provide stable braking even on difficult terrain. Four-wheel drive 4×4 allows confident movement on clay and wet plots. Stability and traction in any conditions The mini tractor is equipped with large wheels: front — 7.5-16, rear — 11.2-28. This guarantees good traction and stability when working with tillage equipment. The rear axle differential is lockable, which is especially important when performing tasks on difficult field sections. Hydraulics for all types of mounted equipment The tractor’s hydraulic system has a separate pump and two hydraulic outlets with quick-disconnect couplings. The hitch system withstands loads up to 800 kg. The PTO operates in two modes — 540/1000 rpm — this is universal for a plow, seeder, rotary tiller or sprayer. Comfort that does not interfere with work Despite the absence of a cabin, the operator receives a comfortable adjustable seat with a shock absorber, an electronic instrument panel, a flat floor, a full set of lighting and an emergency signal. An 80 Ah battery and a 750 W generator provide stable operation of the electrical system.

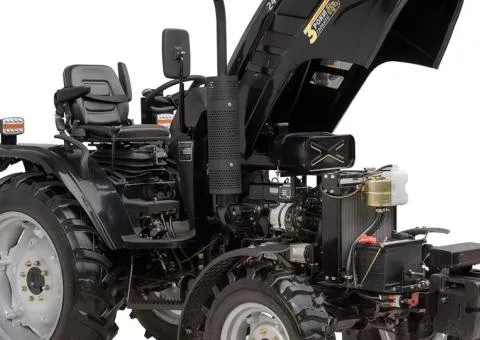

Engine model: DD390
Engine type: Diesel, 4-stroke, with direct injection
Number and arrangement of cylinders: 3, vertical
Engine displacement, cm³: 1909
Turbocharging: None
Rated engine power, hp (kW): 24 (17.6)
Air filter: Contact-oil: oil bath, metal mesh, cyclone
Air preheater in the intake manifold: Electrofuel glow plug (electroflame glow plug)
Fuel tank capacity, l: 39
Transmission type: Mechanical gear
Gear shifting formula: (3x3)+(3x3)
Main gearbox: 3 gears, neutral
Additional reduction gearboxes: 3 gears
Separate reversing gearbox: Forward-neutral-back
Clutch: Single-function, two-disc, permanently engaged type
Steering: Hydrostatic with separate pump and separate oil tank
Wheel formula: 4×4
Brakes: Rear, drum, mechanical, separate pedals for right and left wheel, synchronization of simultaneous pedal action
Theoretical forward speed, km/h: N/A
Theoretical reverse speed, km/h: N/A
Rear axle differential lock: Yes
Minimum turning radius without brakes, m: 4.4
Minimum turning radius with brakes, m: 3.9
Rated drawbar pull, kN: 6.8
Overall dimensions (L×W×H), mm: 3400×1510×2100
Operating weight, kg: 1528
Front tire size: 7.5-16
Rear tire size: 11.2-28
Wheelbase, mm: 1740
Front track, mm: 1205
Rear track, mm: 1230
Agrotechnical clearance, mm: 530
Ground clearance, mm: 410
Additional front/rear weights, (pcs × kg): 4×20 /

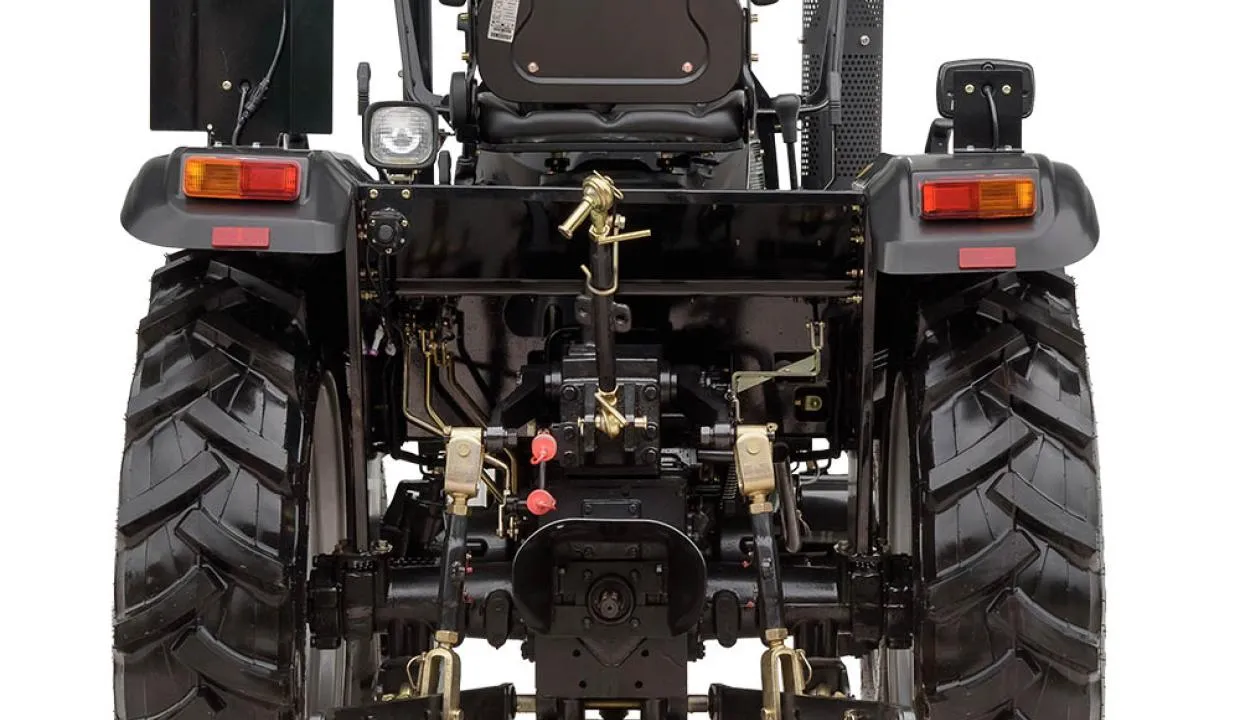

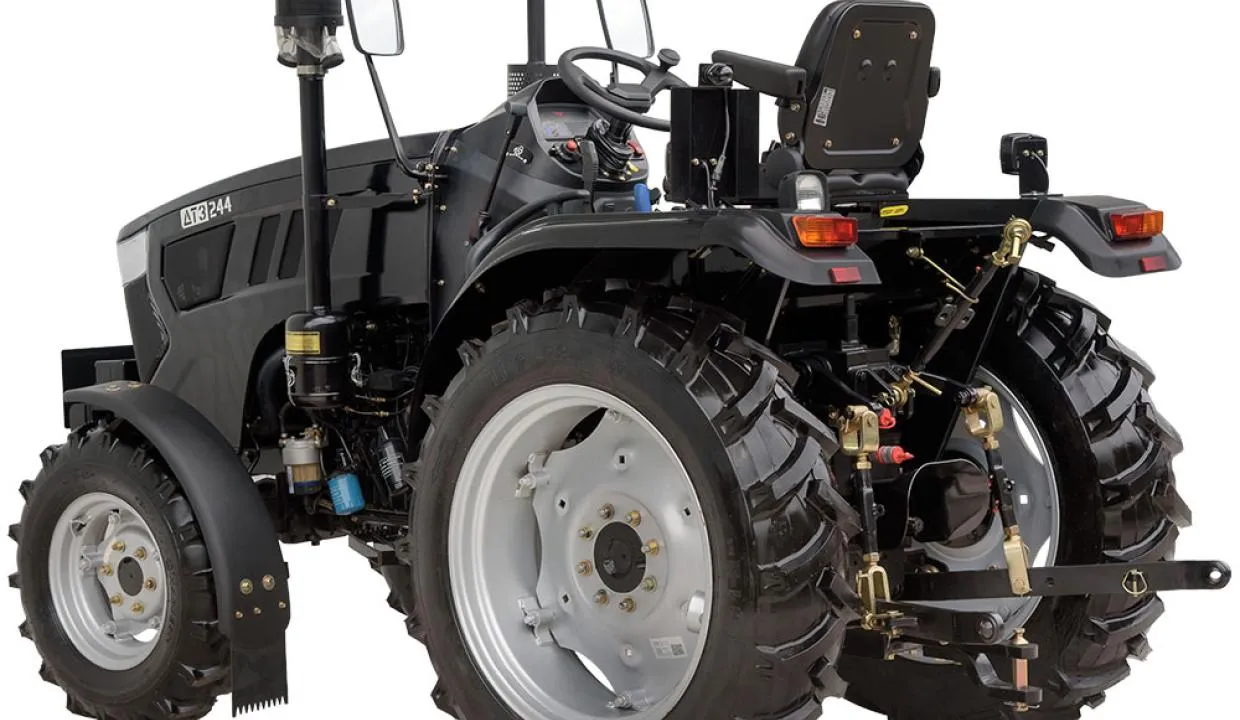

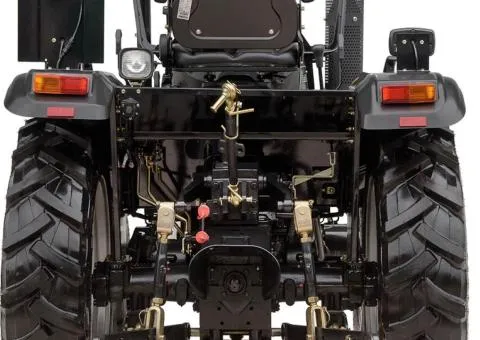

Rear hitch system: Universal, 3-point
Hydraulic lift drive: Hydraulic cylinder, separate gear hydraulic pump
Maximum mounted implement capacity, kg: 800
Towing device: Removable swinging pivot
PTO speeds (rpm): 540-1000
Hydraulic system oil tank capacity, l: 2
