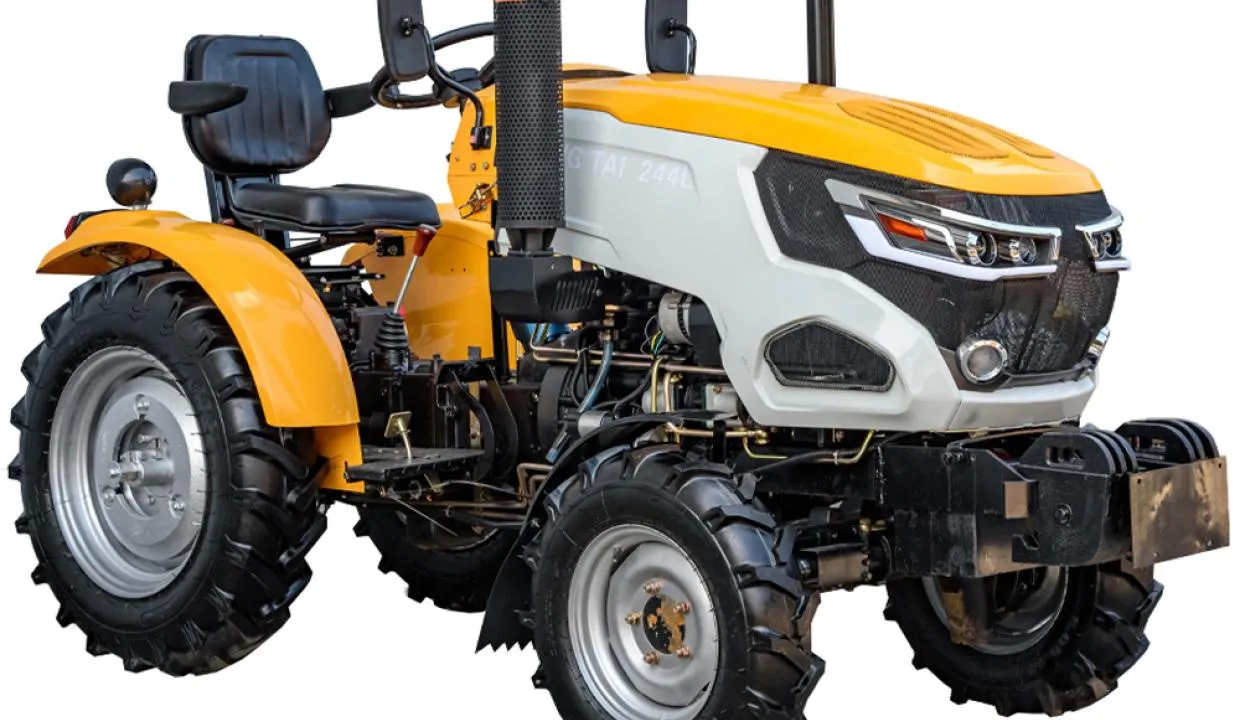

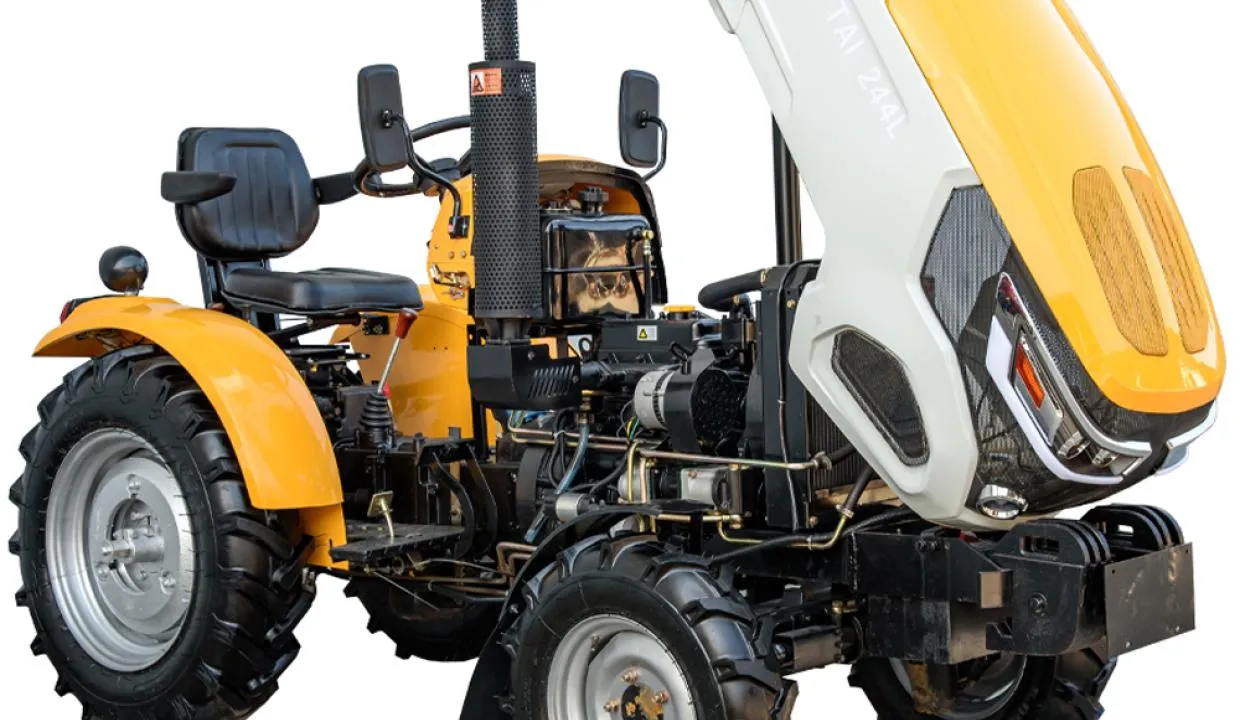

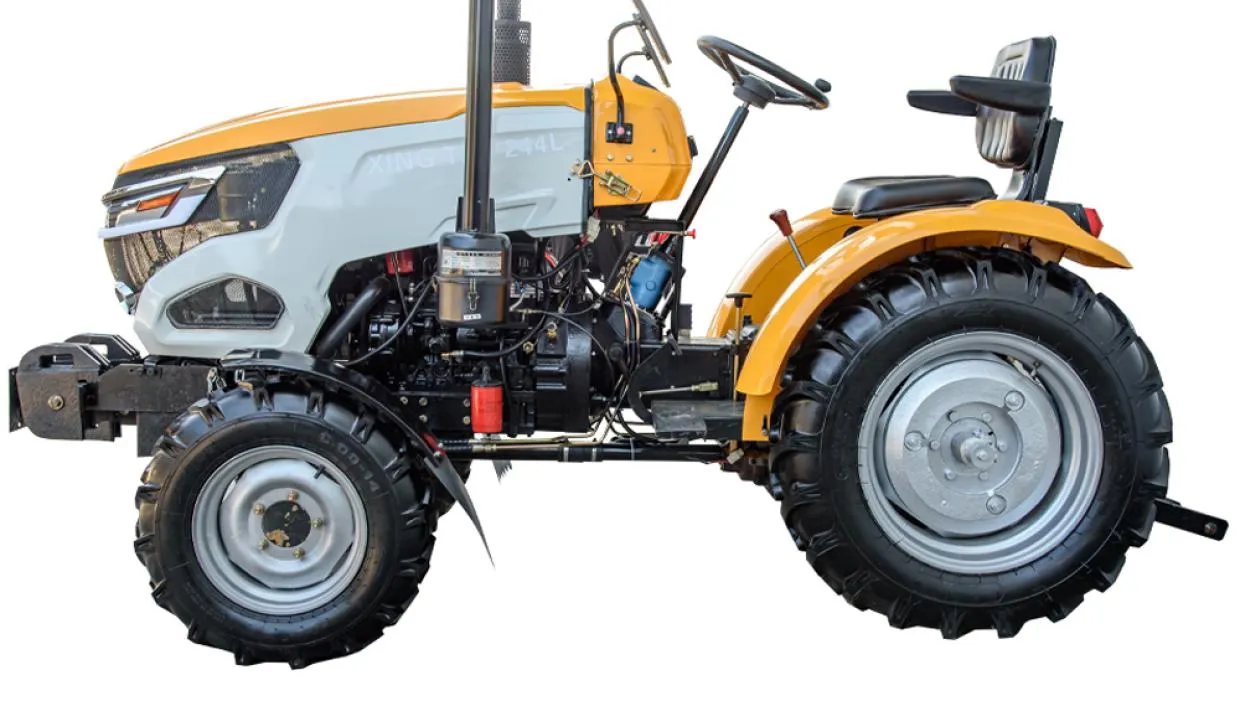

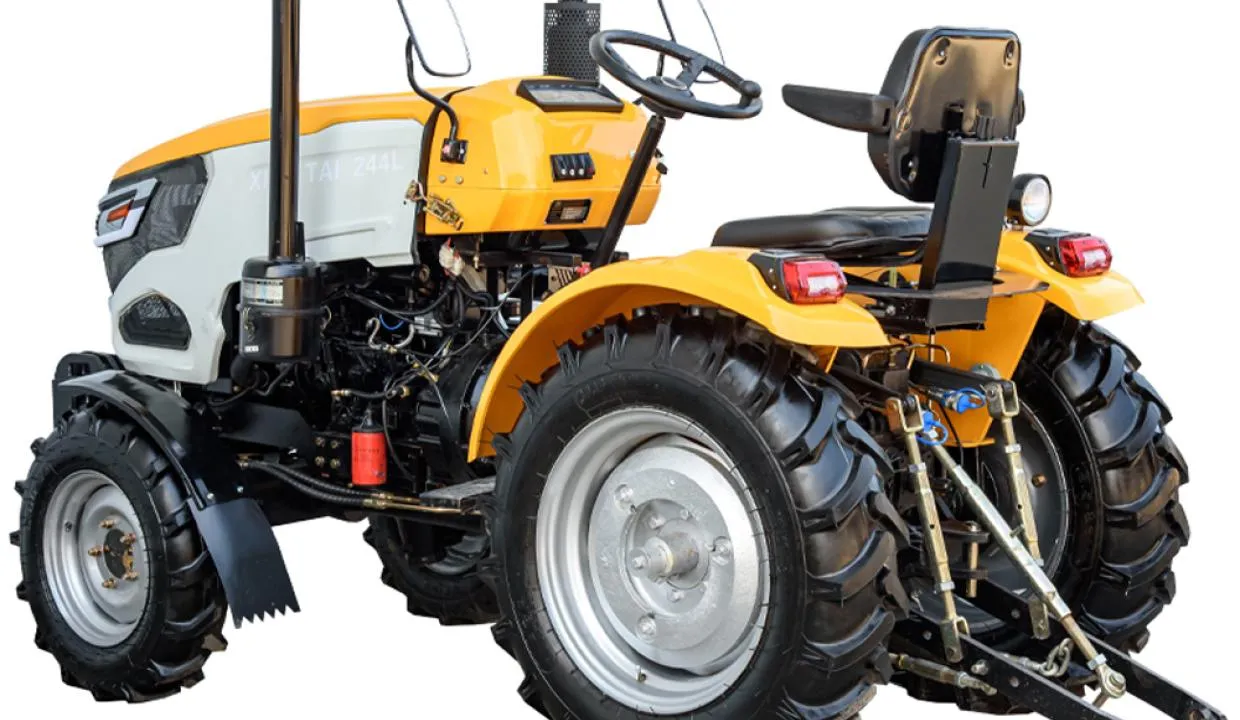

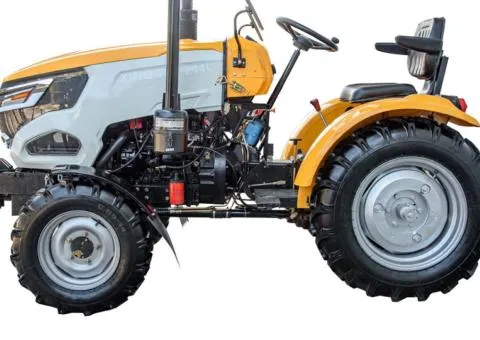

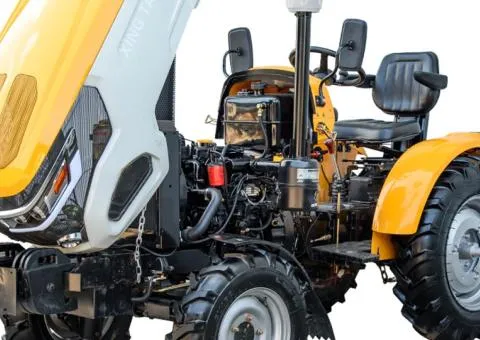

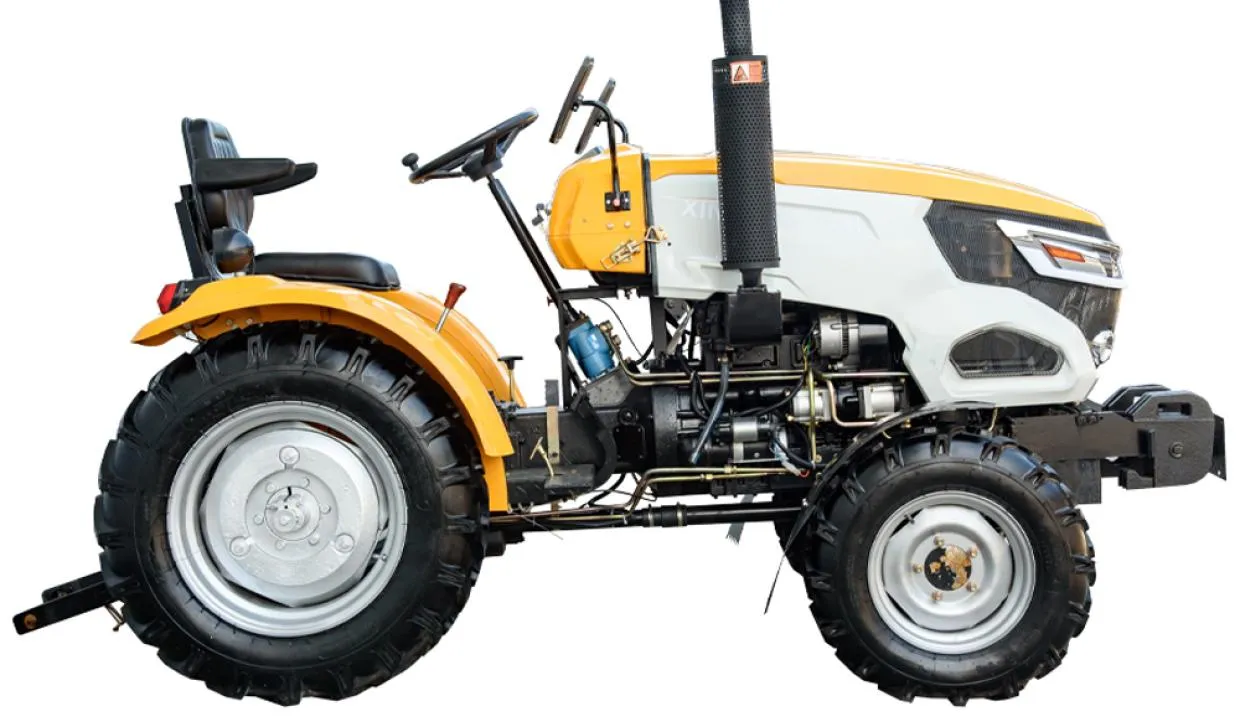

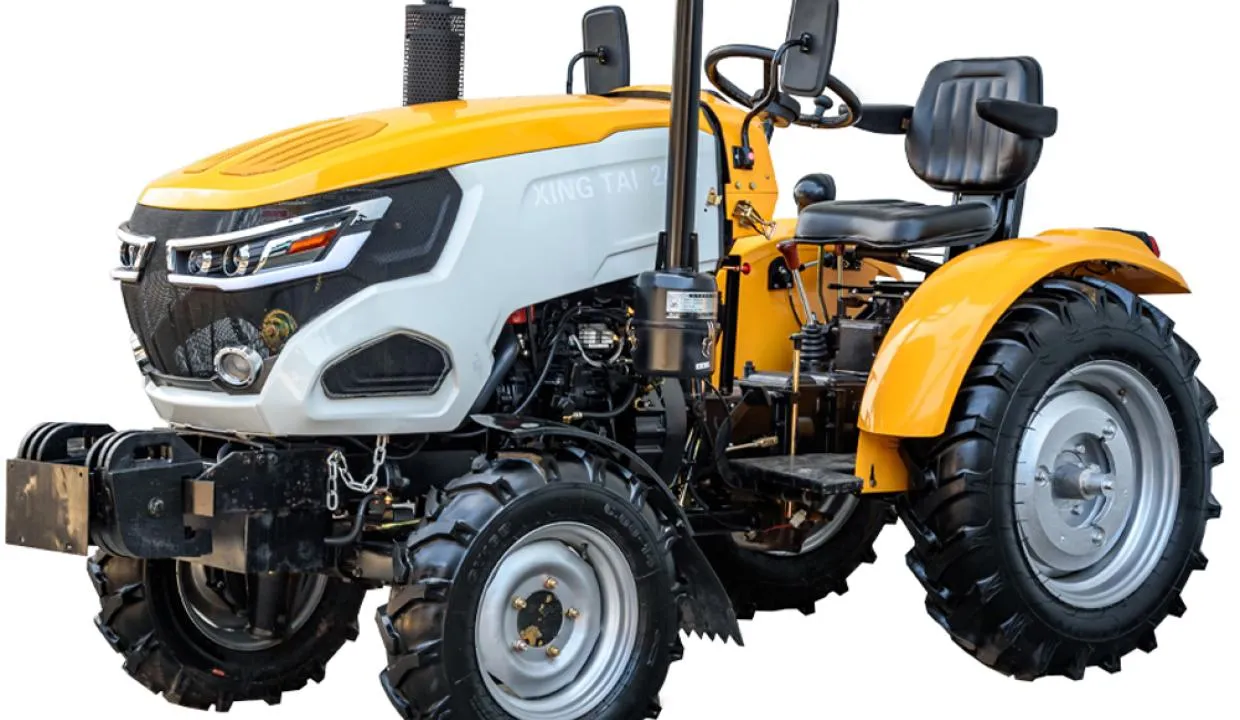

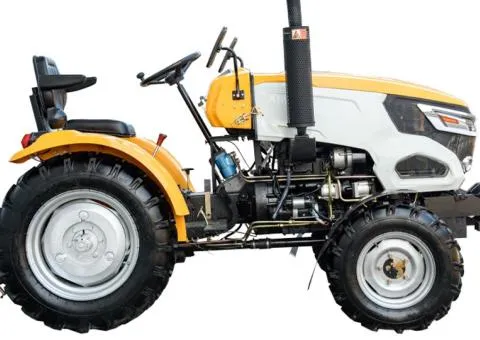

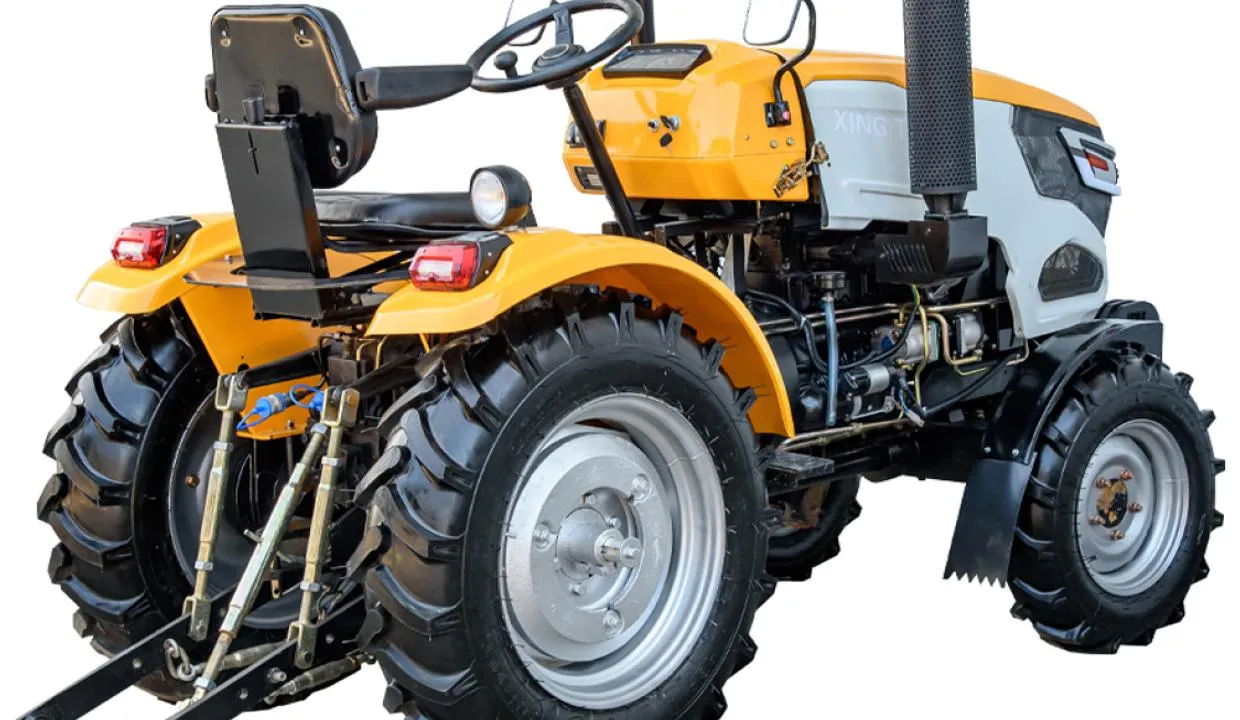

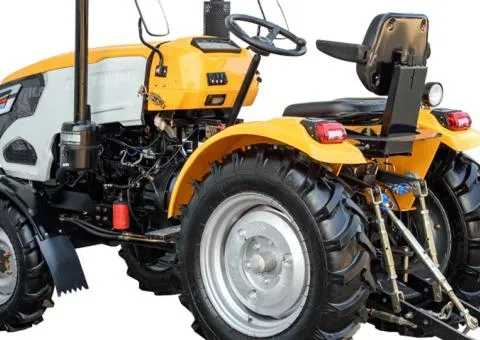

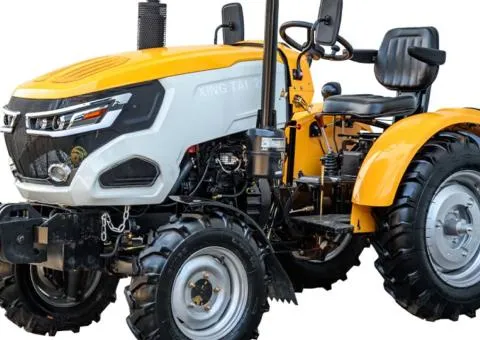

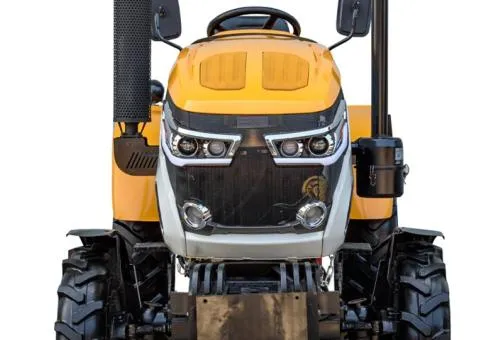

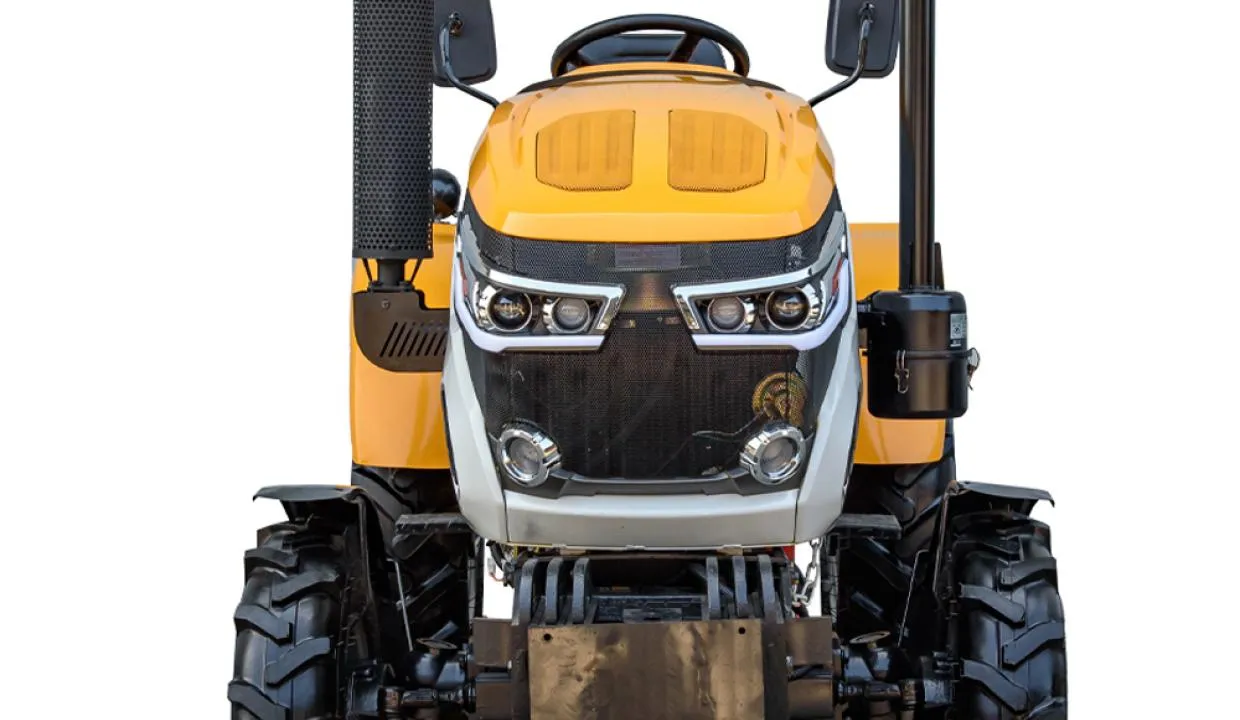

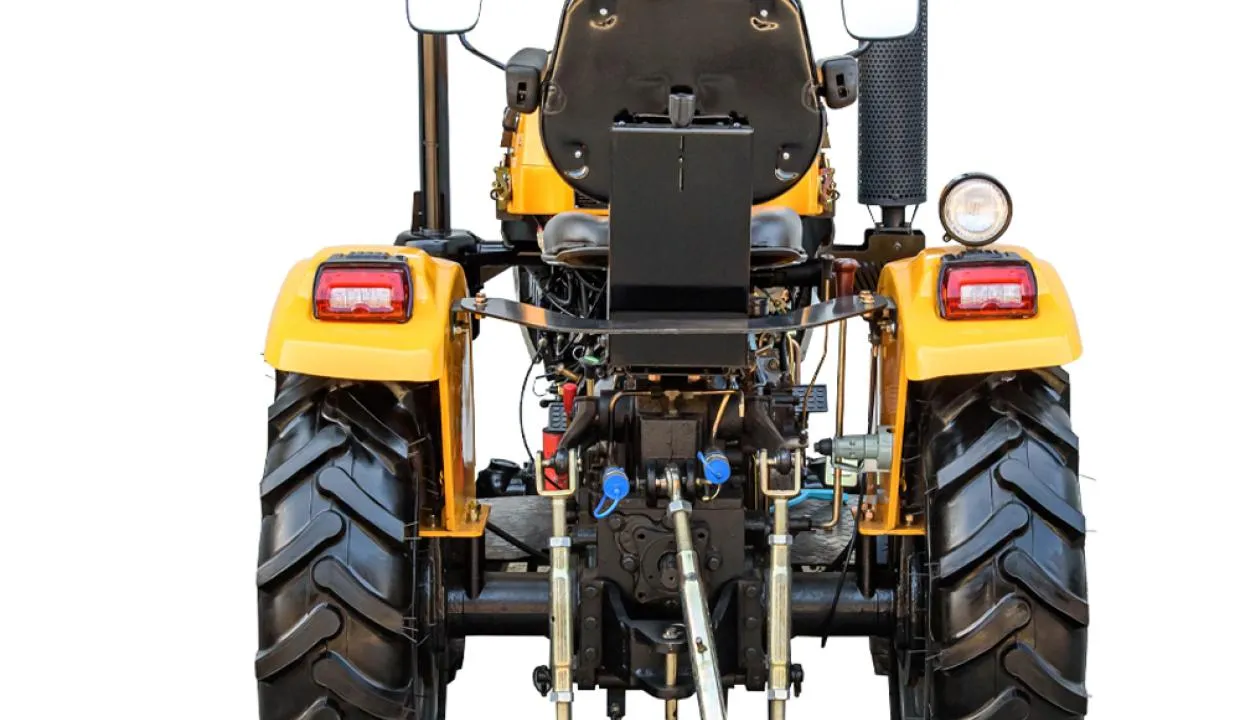

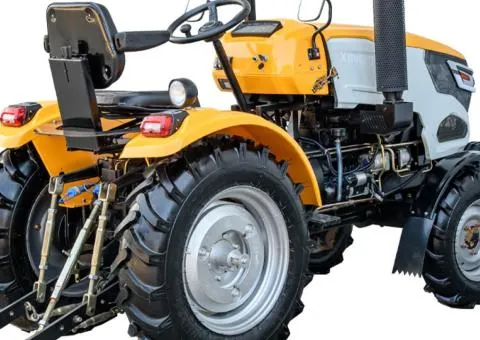

Tractor 244L

225,500 ₴

Tractors

Yesterday 12:49

Україна

Дніпро Get directions →

вул. Надії Алексєєнко, 70

0 views

Published 13 hours ago by ДТЗ

225,500 ₴

In Tractors category

вул. Надії Алексєєнко, 70, Дніпро, Україна

Get directions →

0 item views

Design features of the Shindai 244L model: economical and reliable 3-cylinder engine; electric torch-type air heater in the intake manifold; muffler enclosed with a protective casing along its entire length; power take-off shaft 540 / 720 rpm; hitch system with reinforced lower links and hydraulic lifter; hydraulic system with separate hydraulic pump and oil bath; towing device – quick-release pendulum drawbar; front driven axle of cam type; hydrostatic steering with separate reservoir and hydraulic pump; spacious operator area; convenient placement of control systems; gearbox with speed range 8+2; wheels: front 6.00-16, rear 9.50-24; rear drum-type brakes; independent braking of rear wheels; adjustable front and rear track width; rear axle differential lock. Equipment of the Shindai 244L model: comfortable folding spring seat; informative instrument panel: digital engine hour meter, pointer fuel level gauge, pointer ammeter, pointer indicators of engine temperature and oil pressure in the engine lubrication system; additional step with high serration; quick steering handle; electric socket for trailer; large rearview mirrors; 2 hydraulic outlets with quick-release couplings; front hitch weights; rear wheel weights; front fenders with flexible mudguards; master battery switch; additional rear work light; front and rear mounts for license plates. The 244L tractor can be purchased throughout Ukraine from our official dealers or ordered via the special feedback form in the "Contacts" section.

Rated engine power, hp (kW): 24 (17.6)
Wheel formula: 4x4
Rated traction force, kN: 5.8
Engine start: none
Steering: hydrostatic
Gear shifting formula: (4+1)x2
Clutch: single-disc, dry
Cab: none
Overall dimensions (L x W x H), mm: 3100x1240x1960
Operating weight, kg: 1222
Engine model: KM385VT
Engine type: diesel, 4-stroke, direct injection
Number and arrangement of cylinders: 3, vertical
Engine displacement, cm³: 1532
Turbocharging: none
Rated crankshaft speed, rpm: 2350
Rated fuel consumption, g/kW*h: ≤245
Fuel injection pressure, MPa (kgf/cm²): 18.5-19.0 (185-190)
Starting system: electric starter
Safe start: none
Cooling system: liquid, closed, with forced circulation of coolant
Cooling system expansion tank: none
Fuel tank capacity, l: 20
Coarse fuel filter: none
Fine fuel filter: CX0706
Air filter: contact-oil type: high air intake with semi-transparent cyclone, oil bath, metal mesh
Air preheater in the intake manifold: electric torch-type glow plug
Decompressor: none
Lubrication system: combined, by pump and splash
Lubrication system oil filter: present
Type of oil in crankcase: engine oils for diesel engines M-10G2K, SAE 5W-30, 10W-30, 10W-40
Oil volume in crankcase, l: 6.5
Transmission type: mechanical gear
Clutch: 1-disc, permanently engaged type
Main gearbox: 4 speeds
Additional reduction gearboxes: 2 ranges
Separate reversing gearbox: none
Theoretical forward speed, km/h: 2.2 - 32.0
Theoretical reverse speed, km/h: 3.0; 13.6
Brakes: on rear wheels, drum, mechanical drive, split pedals
