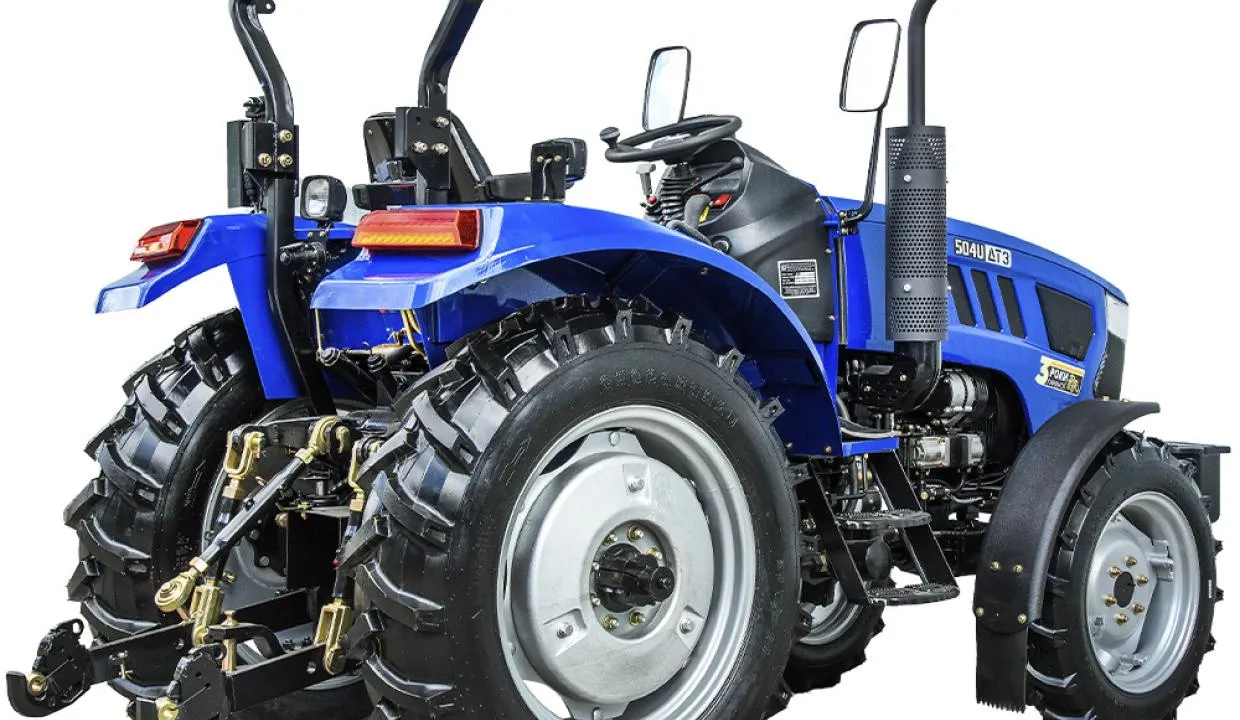

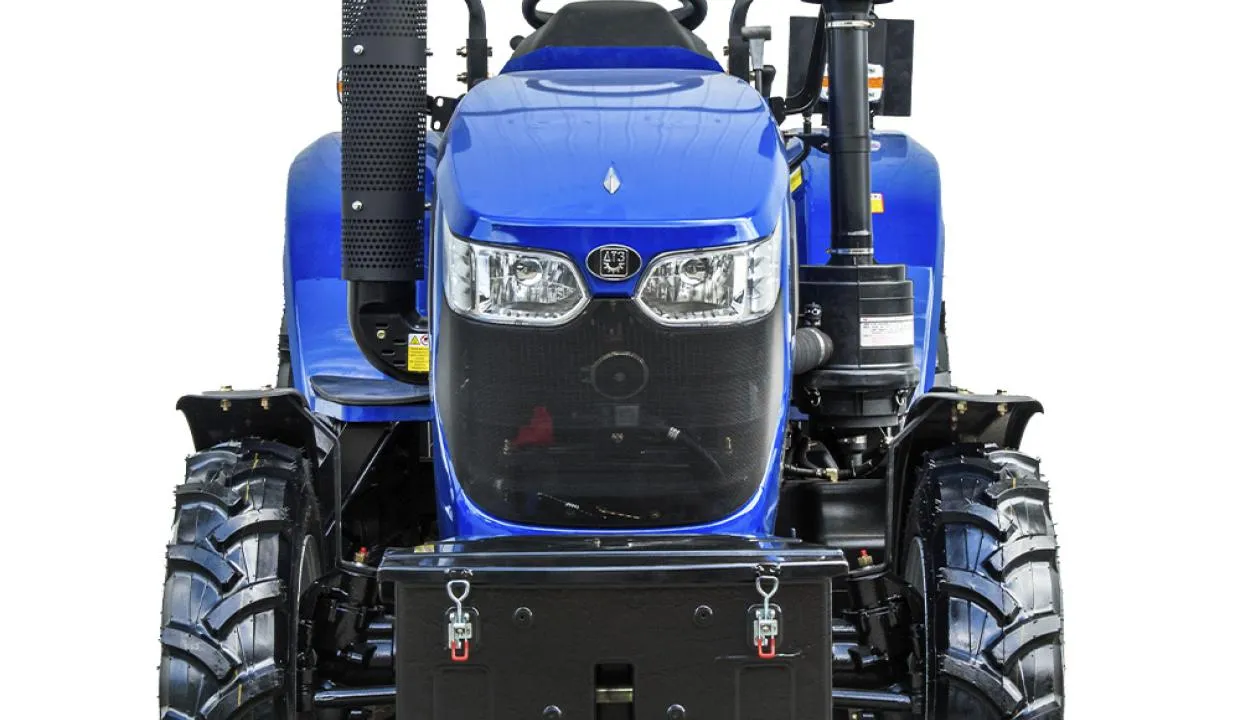

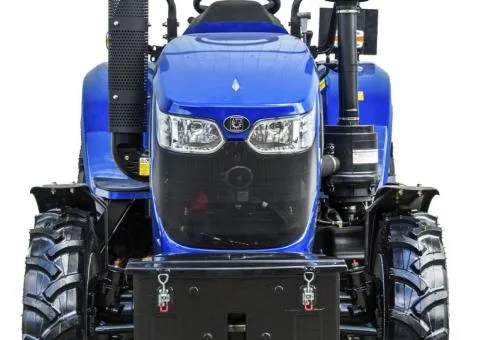

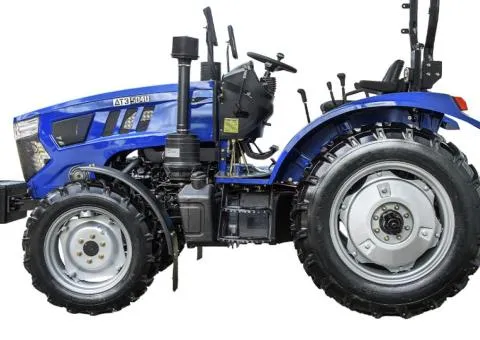

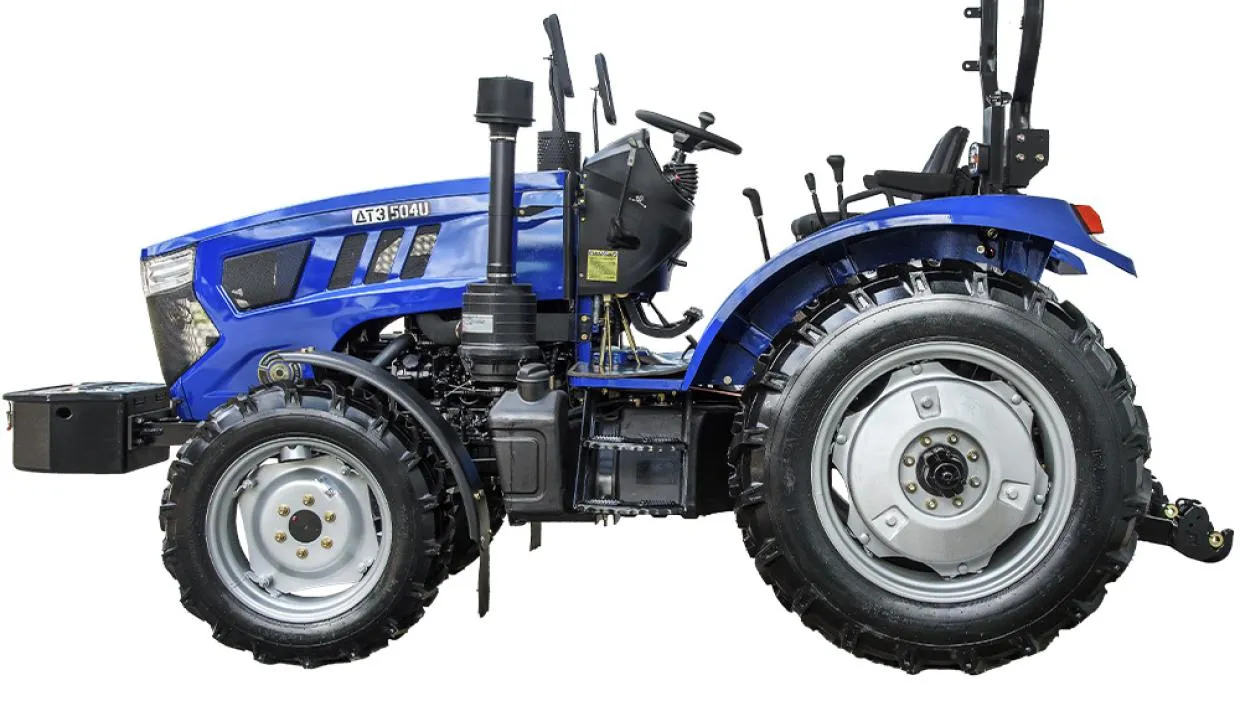

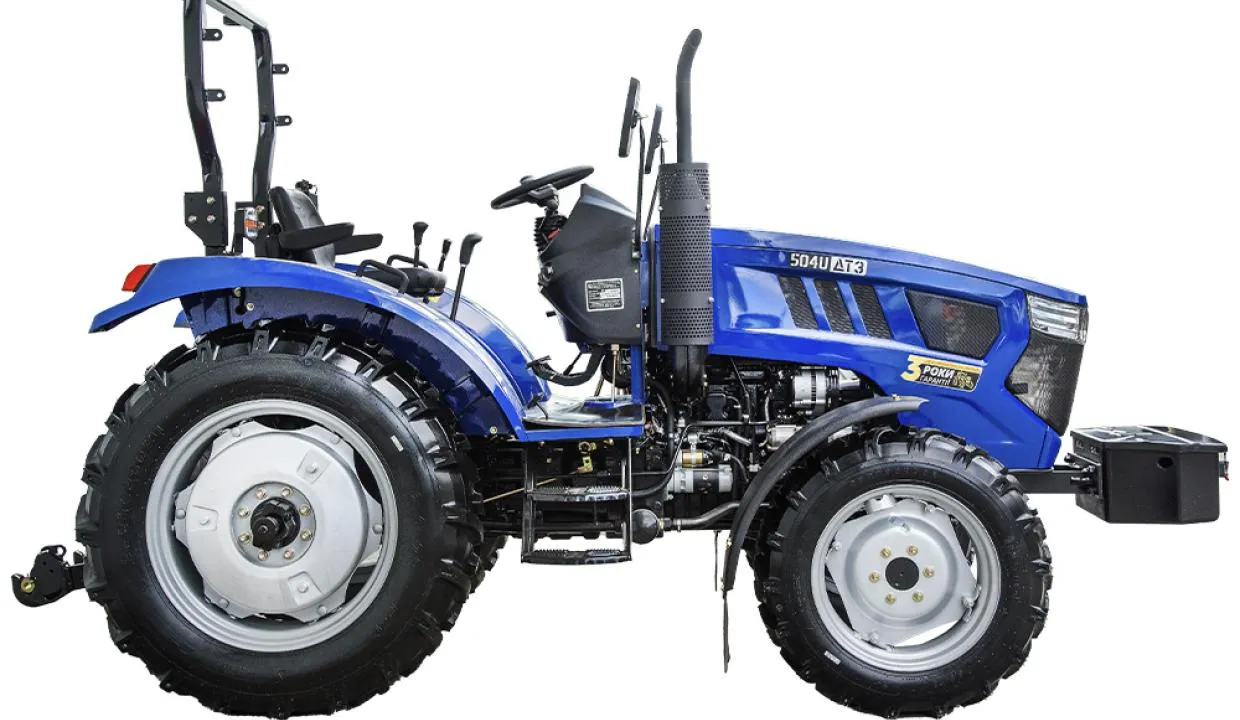

Tractor DTZ 504U

482,570 ₴

Tractors

Yesterday 12:50

Україна

Дніпро Get directions →

вул. Надії Алексєєнко, 70

1 view

Published 15 hours ago by ДТЗ

482,570 ₴

In Tractors category

вул. Надії Алексєєнко, 70, Дніпро, Україна

Get directions →

1 item view

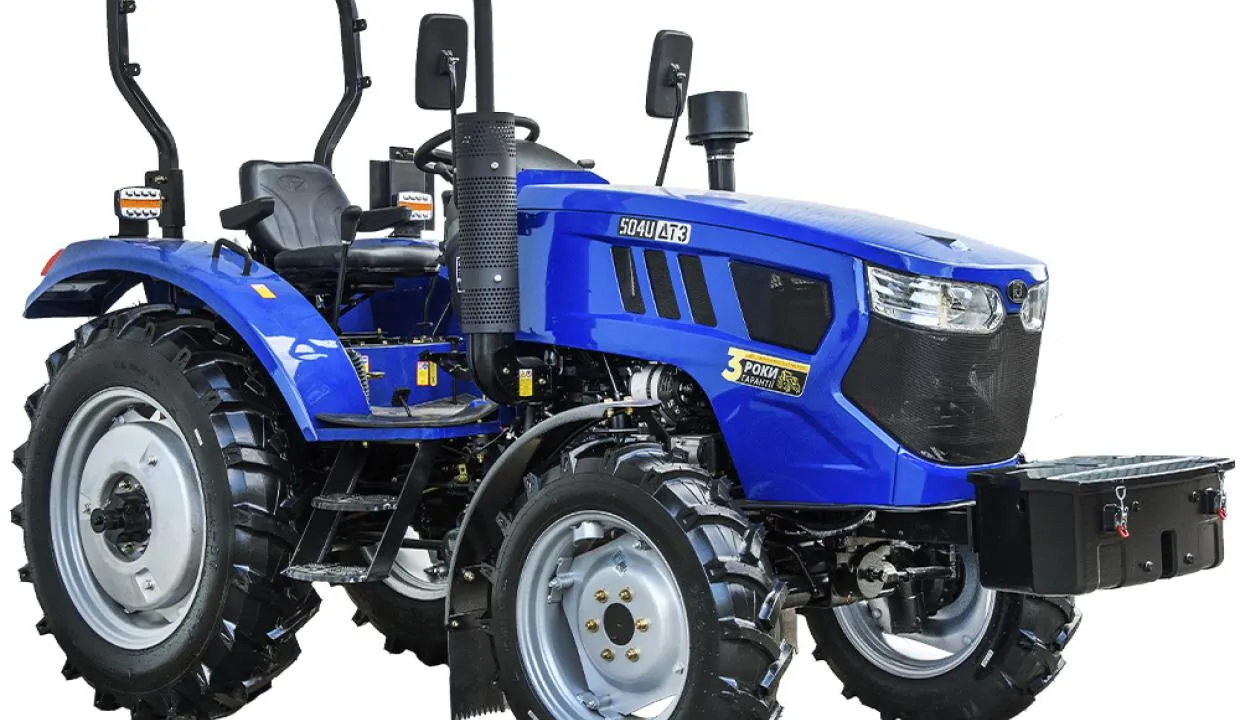

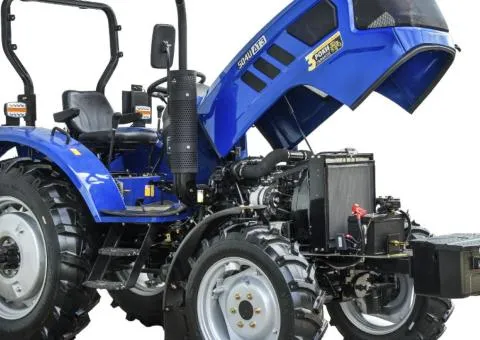

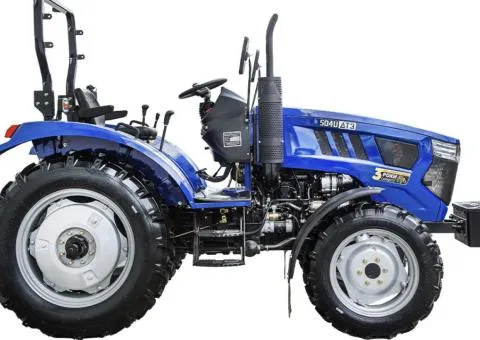

Tractor DTZ 504U — power when you cannot stop Spring, sowing, rain, heat — the field does not wait. And when every hour is important, equipment cannot afford a failure. That is why farmers choose the DTZ 504U tractor — a durable mini tractor capable of handling loads in heavy and light soil, on a slope or on level ground. 50 horsepower of endurance At the heart of the machine is a 4-cylinder diesel CF4B50T-Z with 50 hp (2543 cm³). It has direct fuel injection and a turbocharger, which provides steady pull even when towing a plow or harrow. The electric torch-type preheater makes cold starts easier — the tractor is ready to work in the morning. Clean fuel and air supply The cyclone filter protects against dust and fine particles that wear the engine. The DTZ tractor is designed for daily use in dusty and high-load conditions. A 46 L fuel tank provides long hours without refueling — an important advantage in the field. A power transmission you can trust The gearbox (4×2 + 4×2) with a separate reverser and reduction ranges allows precise speed selection for any implement. The clutch is twin-disc, constantly engaged type — smooth engagement without jerks. Rear axle differential lock — another reliability element, especially when the tractor pulls a plow through clay or wet soil. Four-wheel drive 4×4 — when the ground betrays The tractor does not lose traction on muddy fields thanks to four-wheel drive, large wheels (8.3-20 and 12.4-28) and ballast weights that stabilize balance. This guarantees stable operation even in the most hazardous field areas. Universal hydraulics for all implements Four hydraulic outlets with quick-release couplings, two lift cylinders, PTO at 540/1000 rpm — the tractor easily handles rotary tillers, sprayers, mowers, seeders. Connection is quick, work is steady. Comfort — an important part of efficiency Cushioned seat, flat floor, clear instrument panel, full set of lighting — everything needed for confident control. There is no cab, but the workplace is thought out to the smallest detail.

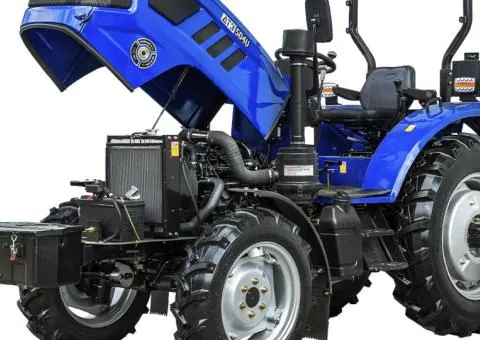

Engine model: CF4B50T-Z
Engine type: Diesel, 4-stroke, with direct injection and turbocharger
Number and arrangement of cylinders: 4, vertical
Engine displacement, cm³: 2543
Turbocharging: No
Rated engine power, hp (kW): 50 (36.8)
Air filter: Multi-stage with cyclone and paper element
Intake manifold air heating: Electric torch-type glow plug
Fuel tank capacity, L: 46
Transmission type: Mechanical gear
Gear shift formula: (4×2)+(4×2)
Main gearbox: 4 speeds
Additional reduction gearboxes: 2 gears, neutral
Separate reverser gearbox: Yes
Clutch: Single-action, twin-disc, constantly engaged type
Steering: Hydrostatic with separate pump and separate oil tank
Wheel configuration: 4×4
Brakes: Rear, drum, mechanical, separate pedals for right and left wheel, synchronization of simultaneous pedal action
Theoretical forward speed, km/h: N/A
Theoretical reverse speed, km/h: N/A
Rear axle differential lock: Yes
Minimum turning radius without brakes, m: N/A
Minimum turning radius with brakes, m: N/A
Rated drawbar pull, kN: N/A
Overall dimensions (L×W×H), mm: N/A
Operating weight, kg: 1990
Front tire size: 8.3-20
Rear tire size: 12.4-28
Wheelbase, mm: N/A
Front track, mm: N/A
Rear track, mm: N/A
Agrotechnical clearance, mm: N/A
Ground clearance, mm: N/A
Additional front/rear weights, (units × kg): 80/2*45

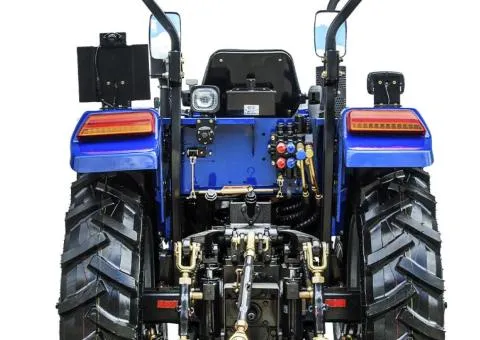

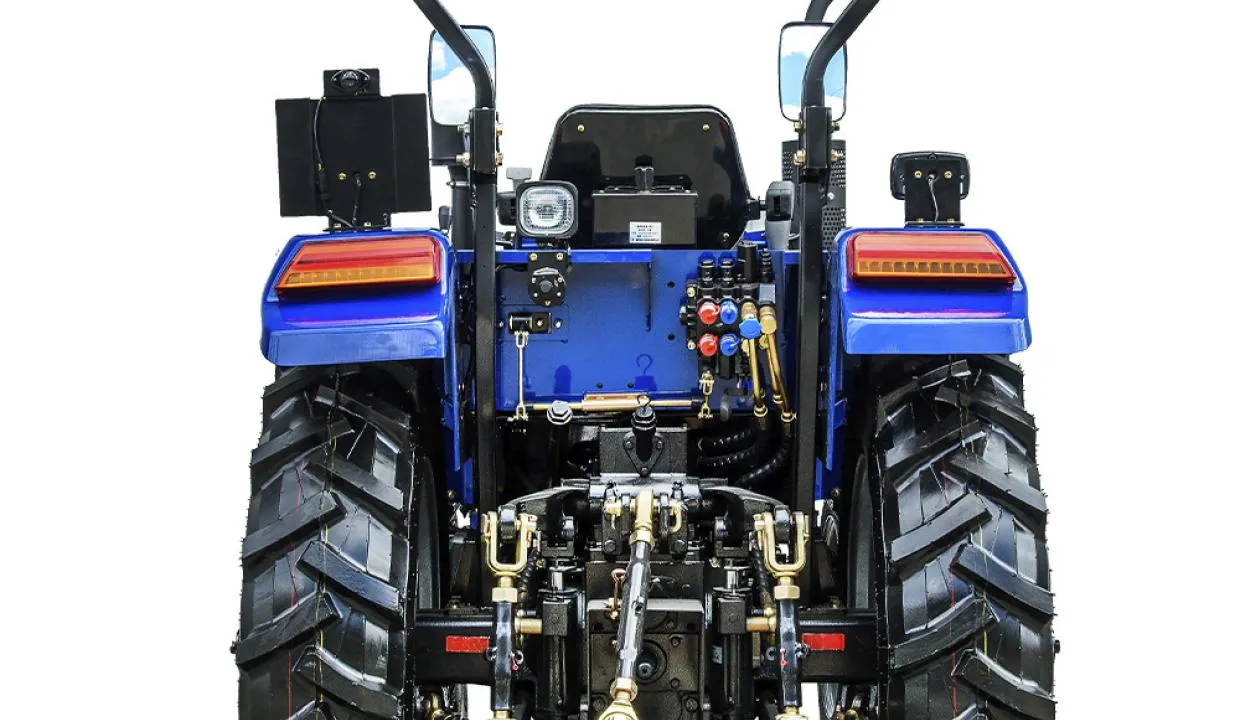

Rear hitch system: Universal, 3-point
Hydraulic lift drive: 2 hydraulic cylinders
Maximum hitch load capacity, kg: N/A
Towing device: Removable pendulum pin
PTO speeds, rpm: 540-1000
Hydraulic system oil tank capacity, L: N/A
