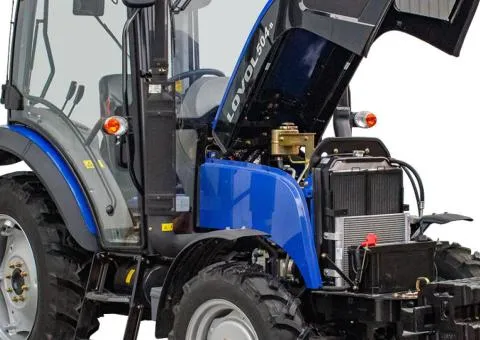

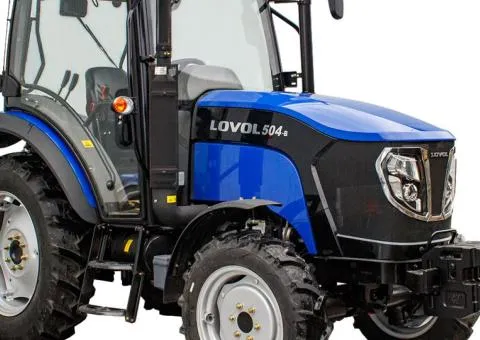

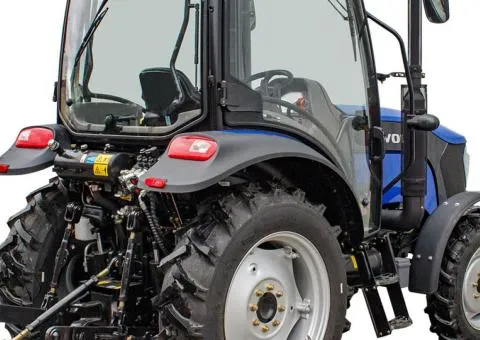

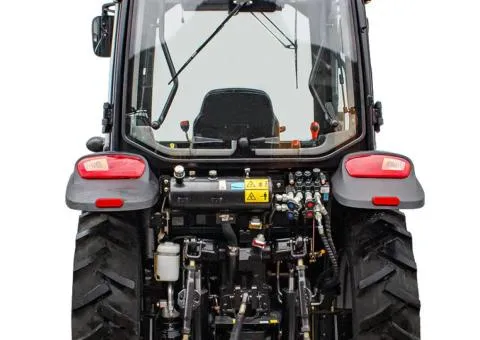

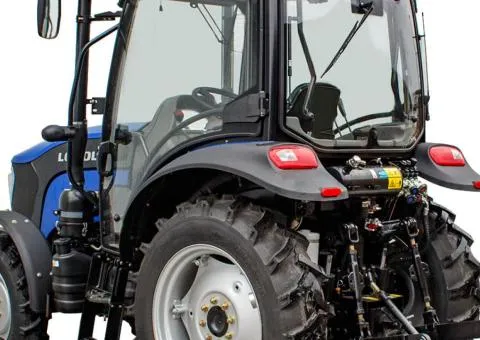

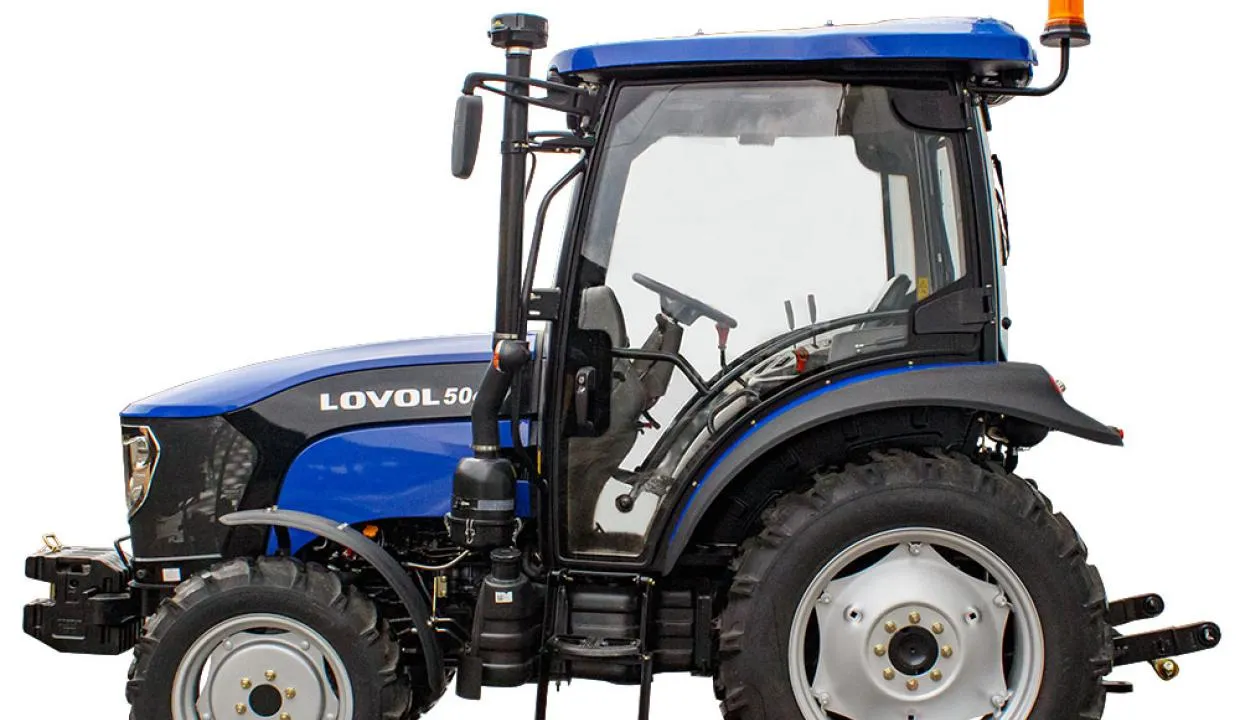

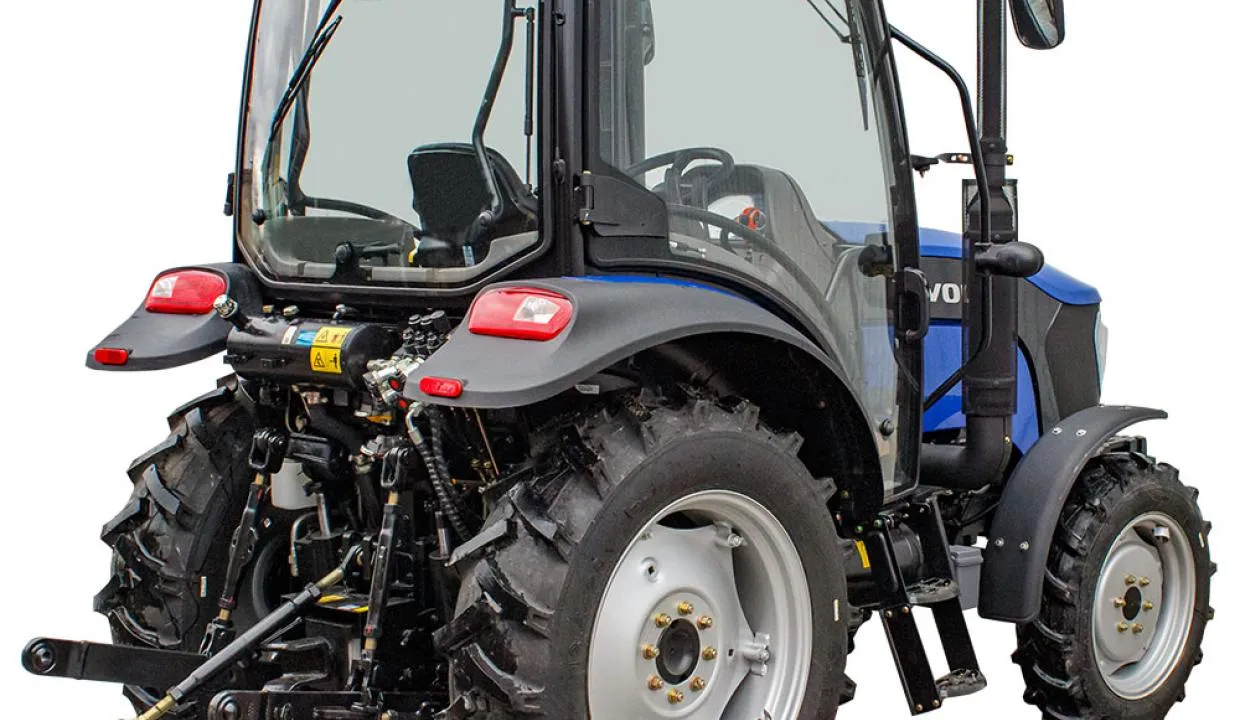

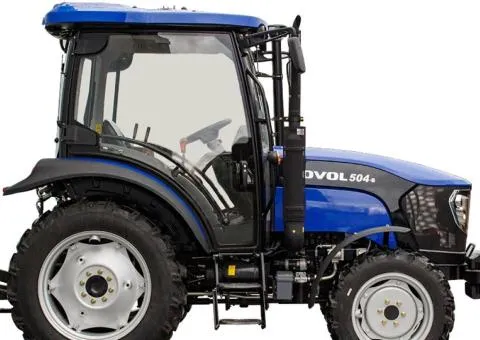

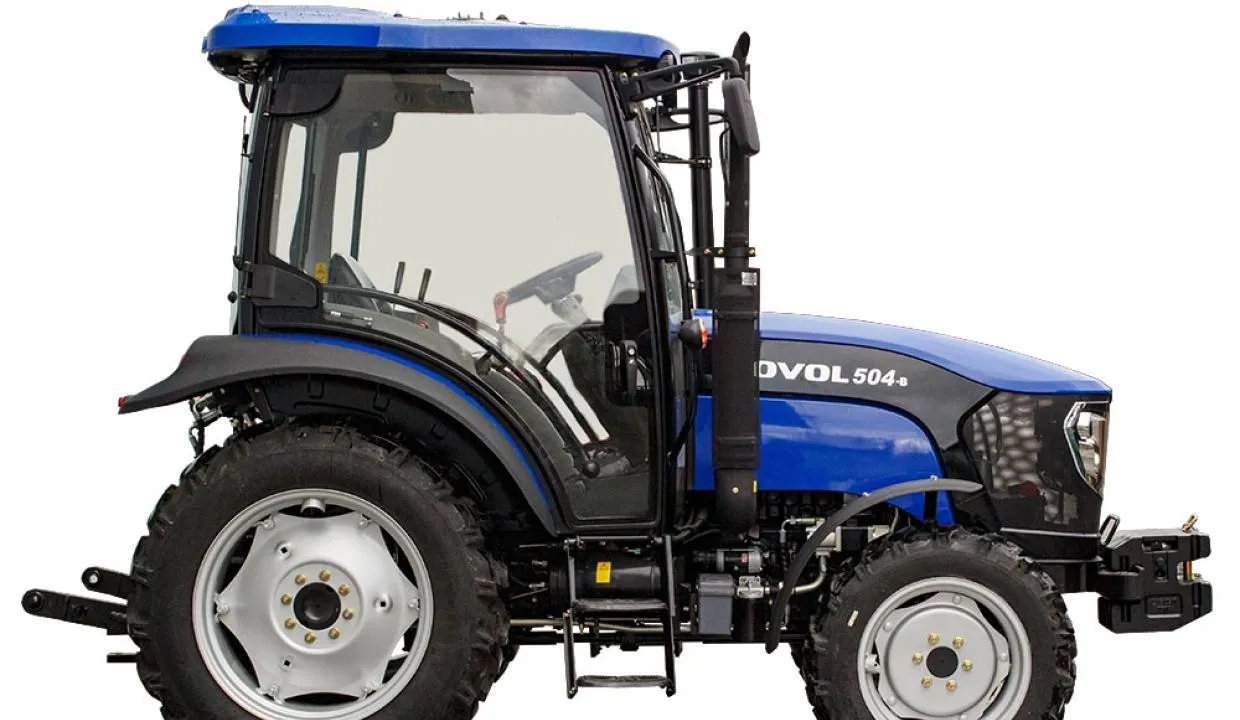

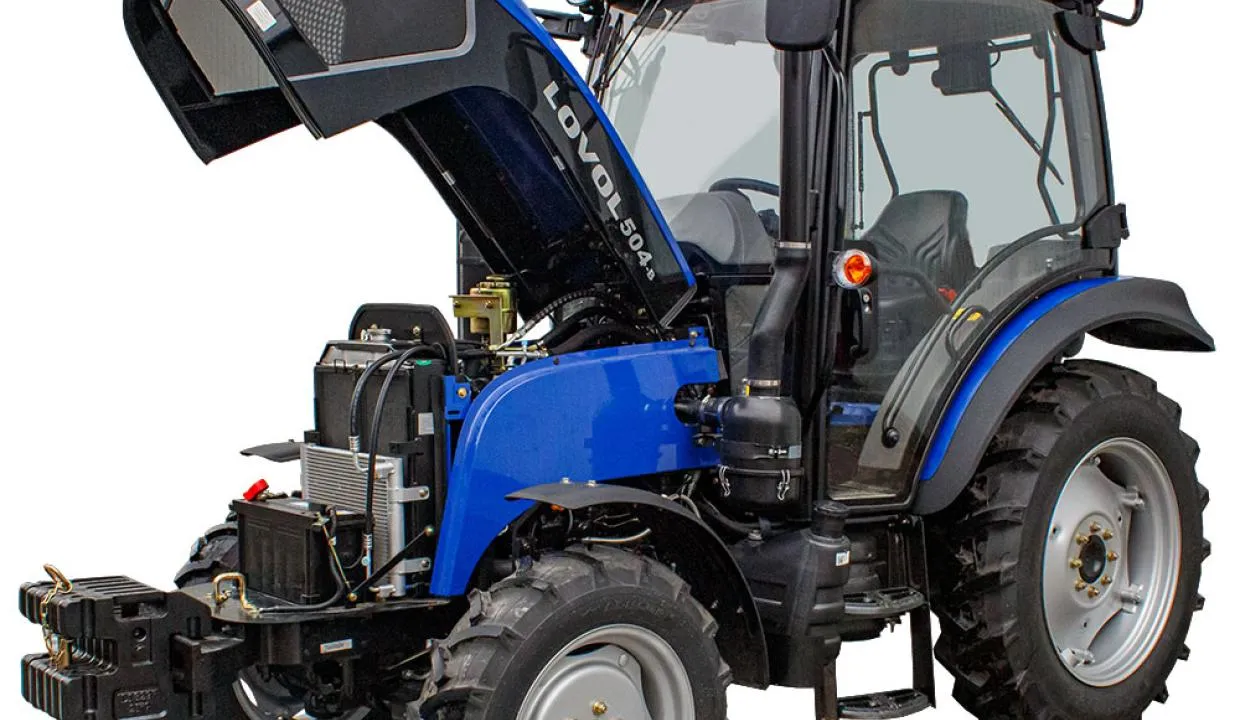

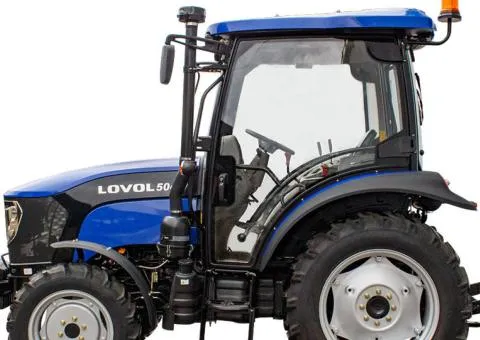

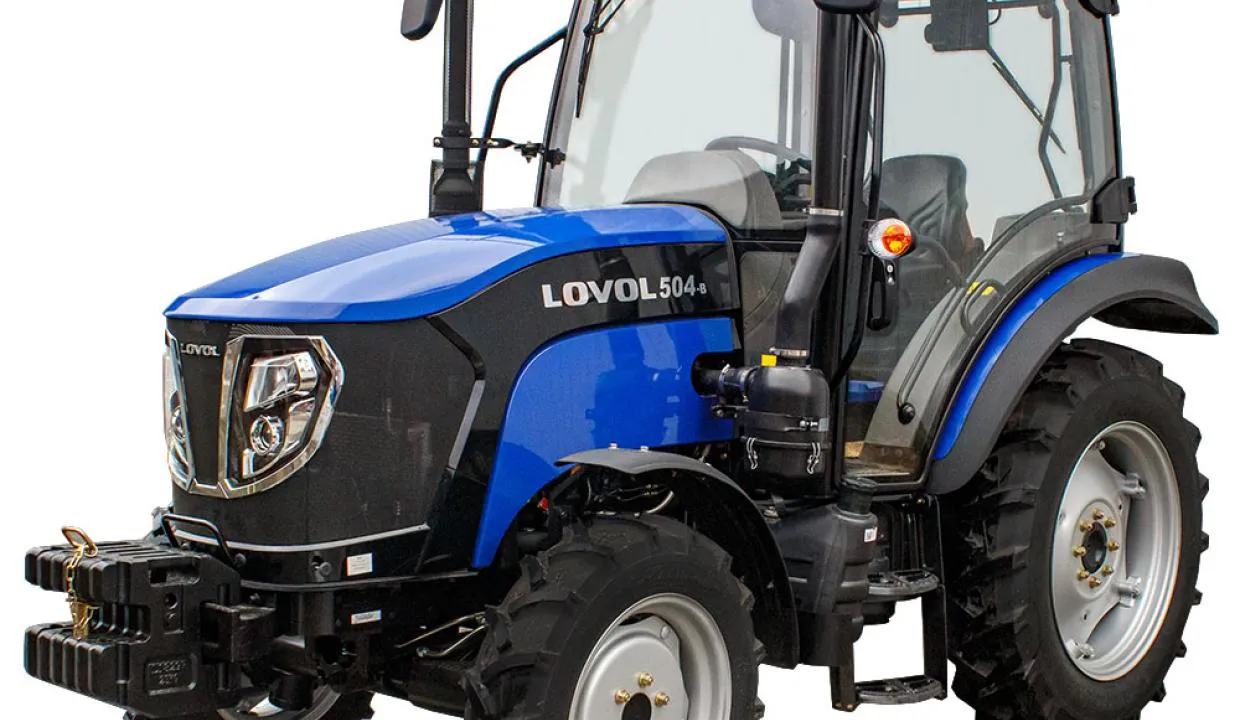

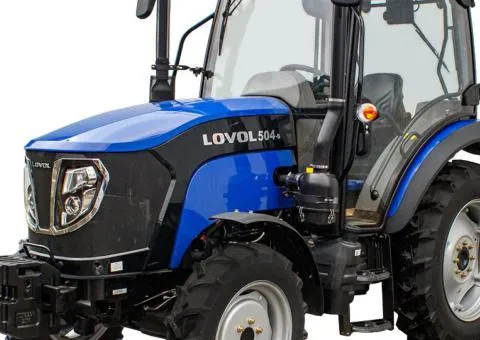

Tractor FT504CNC
Design features of the Foton/Lovol FT504CNC compact tractor: economical and reliable 4-cylinder engine; large convenient fuel tank; electric-torch air preheating system in the intake manifold; muffler and muffler elbow enclosed with protective covers along the entire length; 2-speed power take-off shaft: 540/1000 rpm; hydraulic system with a separate hydraulic pump and oil bath; towing device — quick-release pendulum drawbar; front drive axle of portal type with high side reducers; high ground clearance and agricultural clearance; spacious operator area; cabin air conditioning system; convenient placement of control systems; reversing gearbox with speed range 12+12; large wheels: front 8.30-20, rear 12.4-28; split rear wheel brakes; adjustable front and rear track; rear axle differential lock. Equipment of the Foton/Lovol FT504CNC compact tractor: comfortable adjustable seat with shock absorber; cabin air conditioner; combined instrument panel: digital engine hour meter, analogue tachometer, analogue fuel level gauge, analogue engine temperature indicator, low battery charge indicator, etc.; additional footrests with high serration; electrical socket for trailer; hood damper; large rearview mirrors; 5 hydraulic outlets with quick-release couplings; front mounted weights; front wheel fenders; additional rear lights; You can buy the FT 504CNC tractor throughout Ukraine from our official dealers or order via the special feedback form in the "Contacts" section. All Foton/Lovol tractors come with a 2-year warranty.
Rated engine power, hp (kW): 50 (36.8)
Wheel formula: 4×4
Rated traction force, kN: 13.5
Steering: hydrostatic
Gear shifting formula: (4×3)+(4×3)
Clutch: dual-action, dry
Cabin: +
Overall dimensions (L × W × H), mm: 4070×1670×2700
Operating weight, kg: 2544
Engine model: A498BT-6A
Engine type: diesel, 4-stroke, with direct injection
Number and arrangement of cylinders: 4, vertical
Engine displacement, cm³: 3168
Turbocharging: -
Rated crankshaft speed, rpm: 2400
Rated fuel consumption, g/kW*hr: ≤225
Fuel injection pressure, MPa (kgf/cm²): 20.3–20.8 (203–208)
Starting system: electric starter
Safe start: +
Cooling system: liquid, closed, with forced coolant circulation
Cooling system expansion tank: -
Fuel tank capacity, L: 65.0
Fuel coarse filter: with drain plug for water
Fuel fine filter: CX7085
Air filter: contact-oil type: high air intake with transparent cyclone, oil bath, metal mesh
Air preheater in the intake manifold: +
Decompressor: -
Lubrication system: combined, by pump and splash
Lubrication system oil filter: +
Type of oil in the crankcase: TM "DTZ" TURBO SYNT 10W-40 API CF-4/SG
Oil capacity in crankcase, L: 6.0
Transmission type: mechanical gear
Clutch: dry, dual-action, constantly engaged type
Main gearbox: 4 speeds
Additional reduction gearboxes: 3 ranges
Separate reversing gearbox: +
Theoretical forward speed, km/h: 2.37–38.46
Theoretical reverse speed, km/h: 2.07–33.71
Brakes: on rear wheels, disc, mechanical drive, split pedals
Parking brake: locking of main brakes using a car-type lever
