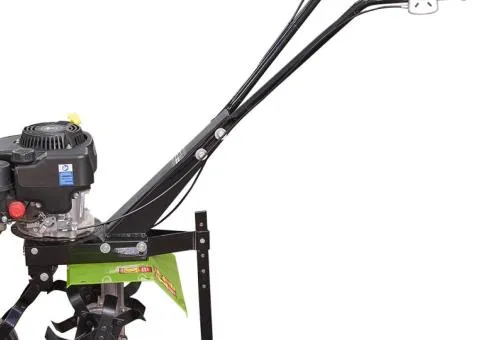

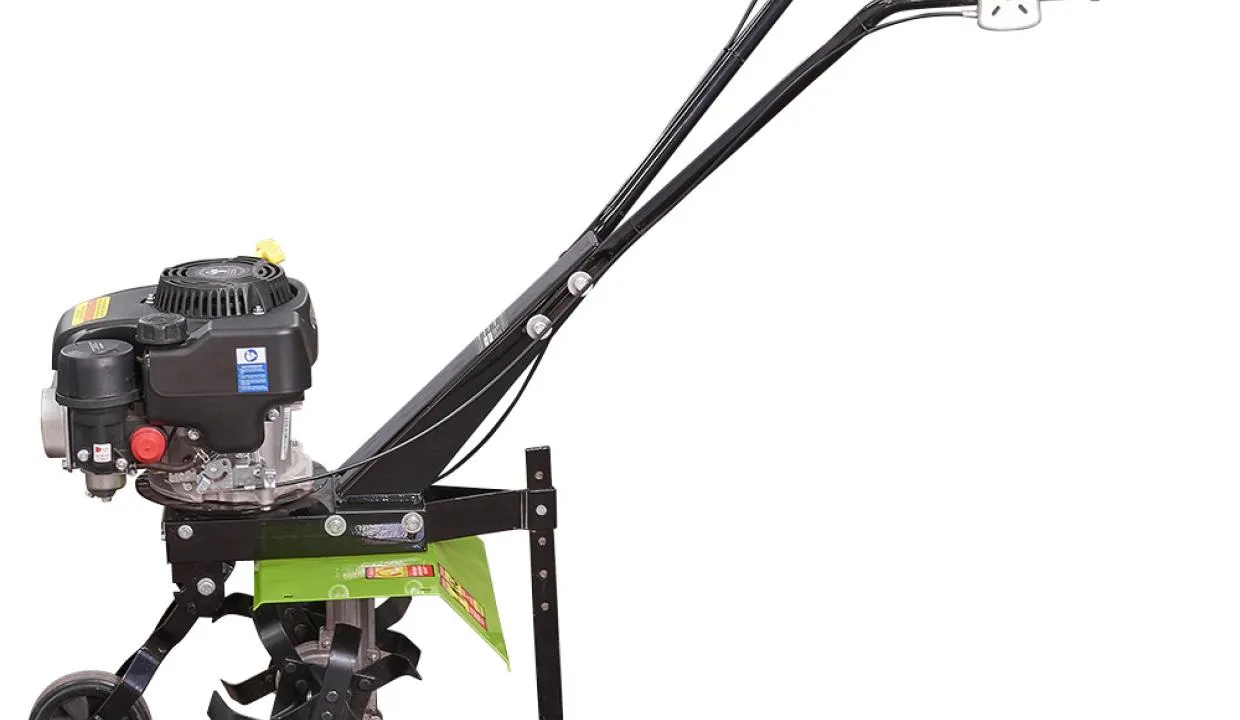

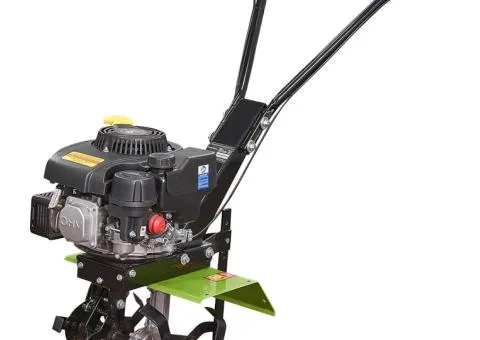

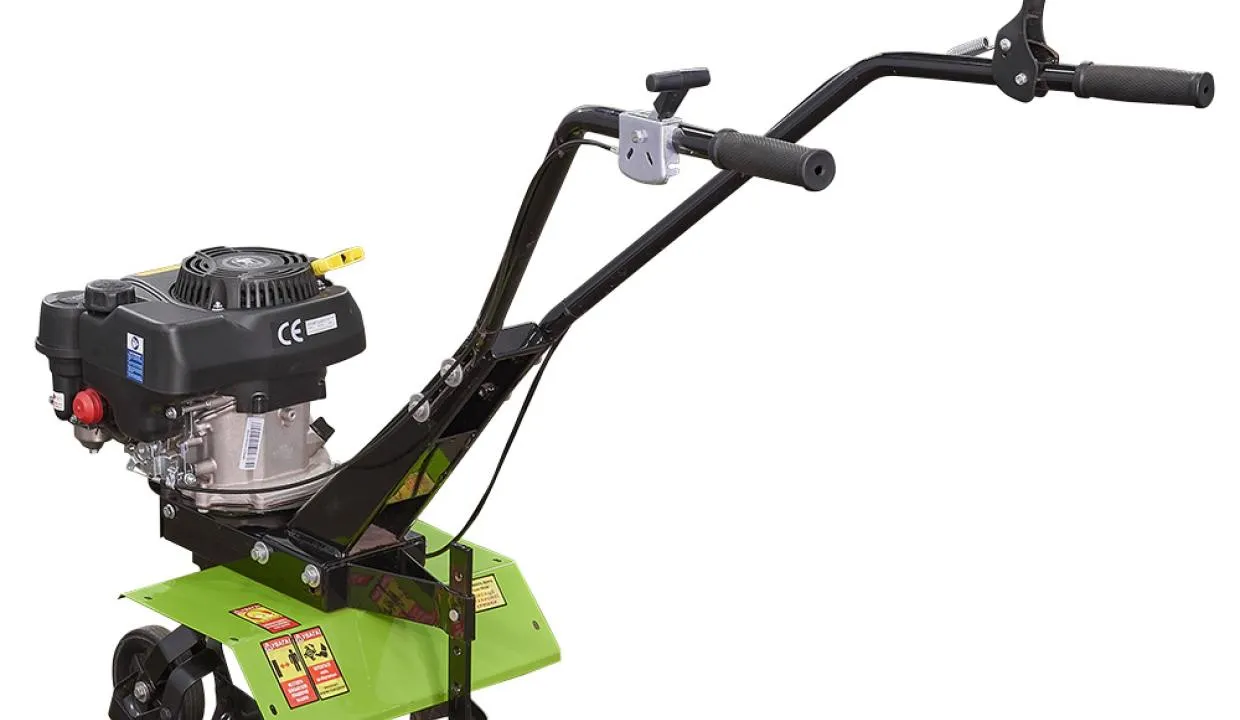

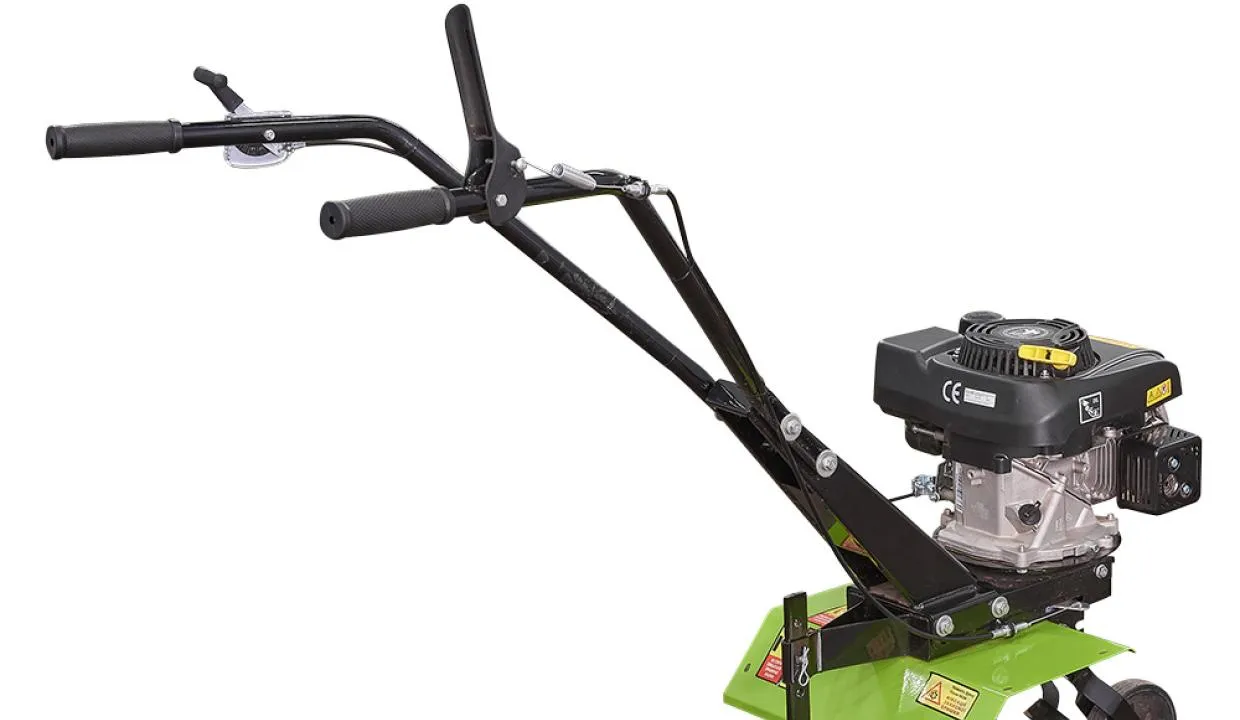

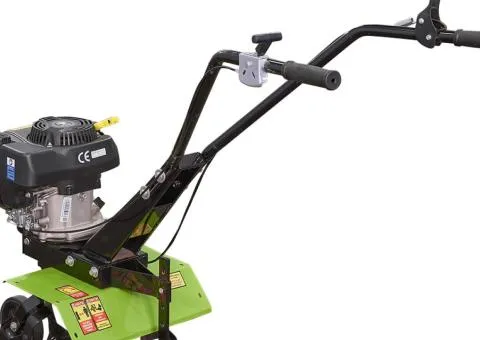

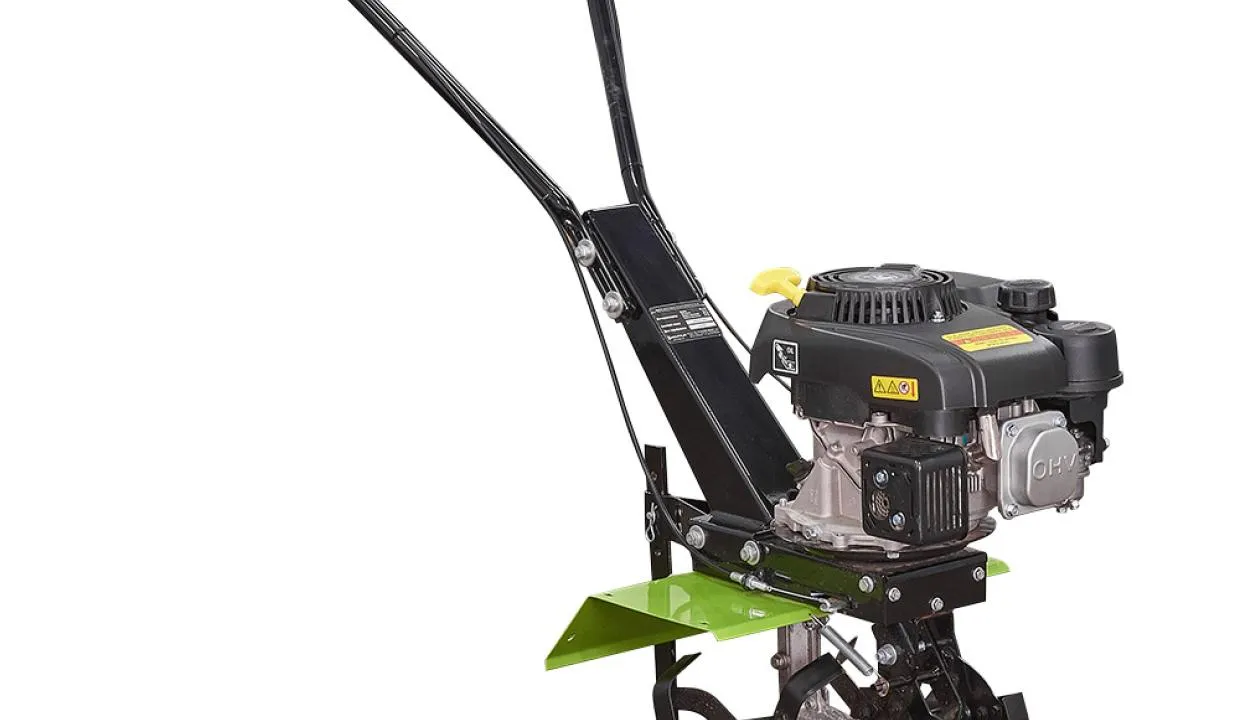

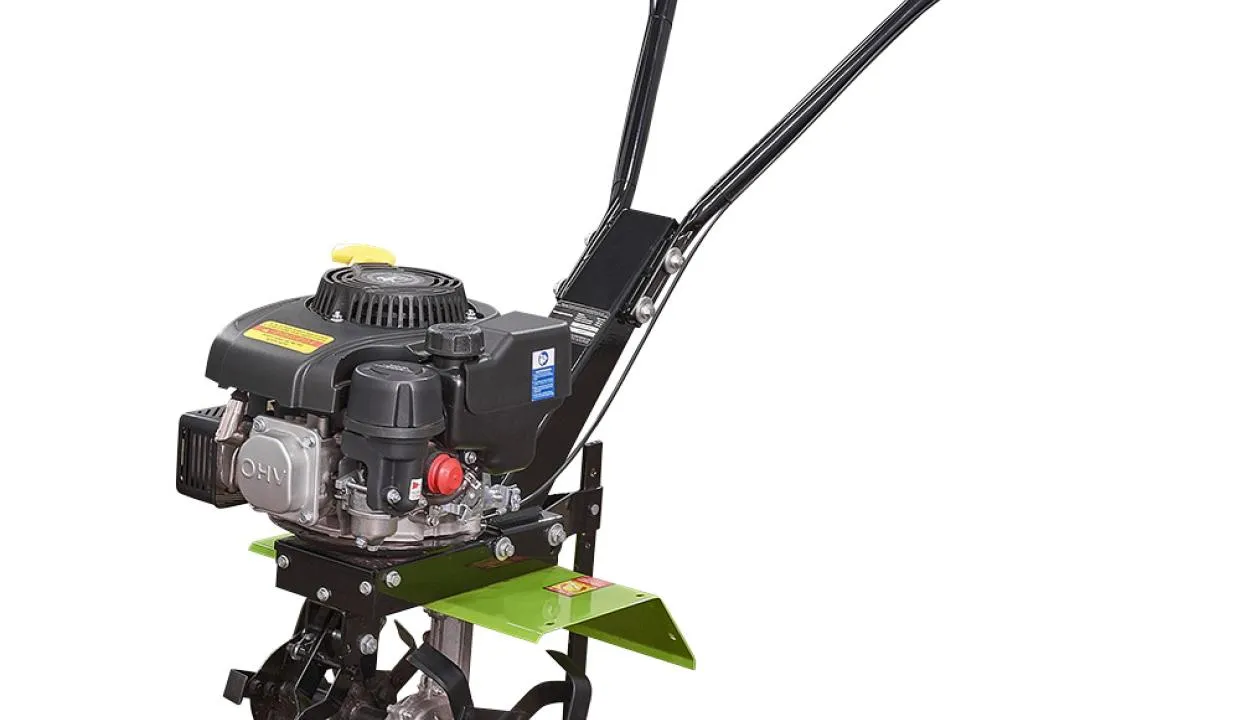

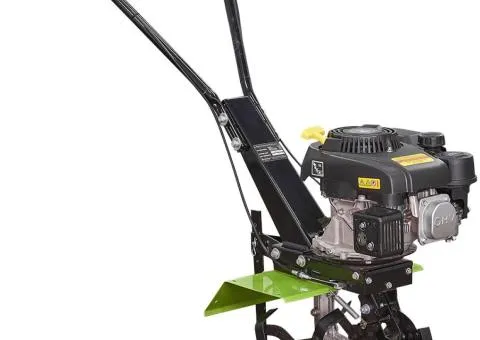

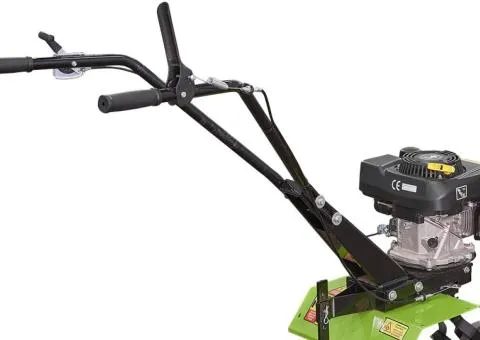

Motor-cultivator Kentavr MK30-1T
Description of the Kentavr MK30-1T motor-cultivator The garden-plot motor-cultivator MK30-1T is a new model in the “KENTAVR” line of motor-cultivators. It is designed for fast and effective soil loosening on plots up to 0.3 hectares, as well as on beds, flowerbeds, in gardens and vineyards. The motor-cultivator is equipped with a 4-section tine assembly with a cultivation width of 450 mm, which allows soil to be loosened with maximum precision and neatness next to tree trunks, bushes or other plantings, as well as near fences, curbs, around posts, decorative park structures and rock gardens. A wide handlebar with soft ergonomic grips, a clutch lever of modern design, a convenient hand-throttle lever, an additional plastic transport wheel, protective guards that cover the tines across the full width — all this allows operation without applying significant physical force, so use will be comfortable and safe even for women and the elderly. Due to the power of a reliable 4-stroke gasoline engine of 4.5 hp, the motor-cultivator is capable of quality soil loosening in one pass to a depth of up to 130 mm, even on fairly compact soils or on soils that have not been previously cultivated. The gasoline engine provides the motor-cultivator with autonomy for field work, has a small weight, starts easily at low air temperatures, responds quickly to throttle control, and is simple and accessible in maintenance and operation. The engine is equipped with an efficient air filter and a manual starter. The muffler is covered with a protective casing to avoid possible burns. The motor-cultivator drive is carried out by a V-belt transmission with a controlled pressure roller. The drive of the tines is carried out by a worm gearbox. The belt drive serves simultaneously as the power transmission, clutch and a protection and safety element. If during operation the tine suddenly jams on a stone or stick, the belt drive will cushion the impact and prevent damage to the engine and gearbox. In addition, a belt-driven motor-cultivator is significantly lighter in weight and cheaper in price, as well as simpler and more convenient to control and maintain than one with a gear drive. The driving and driven pulleys, as well as the pressure rollers, are not plastic but metal, therefore have a long service life. The V-belt is segmented, with high traction characteristics. For safety and protection from dirt, the entire belt drive is reliably covered with a casing. The motor-cultivator is fitted with a tine rotor with a working diameter of 260 mm. The tine rotor consists of four template-shaped blades in each section. The blades are made of 3 mm thick structural sheet steel. The spiral arrangement of the blades reduces vibration and ensures even loading on the gearbox. All metal surfaces, including the engine frame, tine parts and depth gauge, are well painted for corrosion protection and to extend their service life.
Engine type: Gasoline single-cylinder 4-stroke with air cooling
Maximum power, hp: 5
Maximum crankshaft speed, rpm: 3600
Cylinder volume, cm3: 149
Number of gears forward/reverse: 1/0
Fuel type: Gasoline
Starting system: Manual starter
Engine cooling system: Forced air cooling
Fuel tank capacity, L: 1.8
Clutch type: V-belt with control and pressure roller
Cultivation width, mm: 400
Cultivation depth, mm: 130
Tine rotation speed, rpm: 120
Sets of cultivating blades: 4=2+2
Rotor diameter of tines, mm: 260
Transport wheel: Plastic
Overall dimensions of motor-cultivator (LxWxH): 1460/450/910
Package size (LxWxH): 700х405х470
Operating weight, kg: 33
Published on 2026/10/11
Description of the Kentavr MK30-1T motor-cultivator The garden-plot motor-cultivator MK30-1T is a new model in the “KENTAVR” line of motor-cultivators. It is designed for fast and effective soil loosening on plots up to 0.3 hectares, as well as on beds, flowerbeds, in gardens and vineyards. The motor-cultivator is equipped with a 4-section tine assembly with a cultivation width of 450 mm, which allows soil to be loosened with maximum precision and neatness next to tree trunks, bushes or other plantings, as well as near fences, curbs, around posts, decorative park structures and rock gardens. A wide handlebar with soft ergonomic grips, a clutch lever of modern design, a convenient hand-throttle lever, an additional plastic transport wheel, protective guards that cover the tines across the full width — all this allows operation without applying significant physical force, so use will be comfortable and safe even for women and the elderly. Due to the power of a reliable 4-stroke gasoline engine of 4.5 hp, the motor-cultivator is capable of quality soil loosening in one pass to a depth of up to 130 mm, even on fairly compact soils or on soils that have not been previously cultivated. The gasoline engine provides the motor-cultivator with autonomy for field work, has a small weight, starts easily at low air temperatures, responds quickly to throttle control, and is simple and accessible in maintenance and operation. The engine is equipped with an efficient air filter and a manual starter. The muffler is covered with a protective casing to avoid possible burns. The motor-cultivator drive is carried out by a V-belt transmission with a controlled pressure roller. The drive of the tines is carried out by a worm gearbox. The belt drive serves simultaneously as the power transmission, clutch and a protection and safety element. If during operation the tine suddenly jams on a stone or stick, the belt drive will cushion the impact and prevent damage to the engine and gearbox. In addition, a belt-driven motor-cultivator is significantly lighter in weight and cheaper in price, as well as simpler and more convenient to control and maintain than one with a gear drive. The driving and driven pulleys, as well as the pressure rollers, are not plastic but metal, therefore have a long service life. The V-belt is segmented, with high traction characteristics. For safety and protection from dirt, the entire belt drive is reliably covered with a casing. The motor-cultivator is fitted with a tine rotor with a working diameter of 260 mm. The tine rotor consists of four template-shaped blades in each section. The blades are made of 3 mm thick structural sheet steel. The spiral arrangement of the blades reduces vibration and ensures even loading on the gearbox. All metal surfaces, including the engine frame, tine parts and depth gauge, are well painted for corrosion protection and to extend their service life.
Engine type: Gasoline single-cylinder 4-stroke with air cooling
Maximum power, hp: 5
Maximum crankshaft speed, rpm: 3600
Cylinder volume, cm3: 149
Number of gears forward/reverse: 1/0
Fuel type: Gasoline
Starting system: Manual starter
Engine cooling system: Forced air cooling
Fuel tank capacity, L: 1.8
Clutch type: V-belt with control and pressure roller
Cultivation width, mm: 400
Cultivation depth, mm: 130
Tine rotation speed, rpm: 120
Sets of cultivating blades: 4=2+2
Rotor diameter of tines, mm: 260
Transport wheel: Plastic
Overall dimensions of motor-cultivator (LxWxH): 1460/450/910
Package size (LxWxH): 700х405х470
Operating weight, kg: 33
