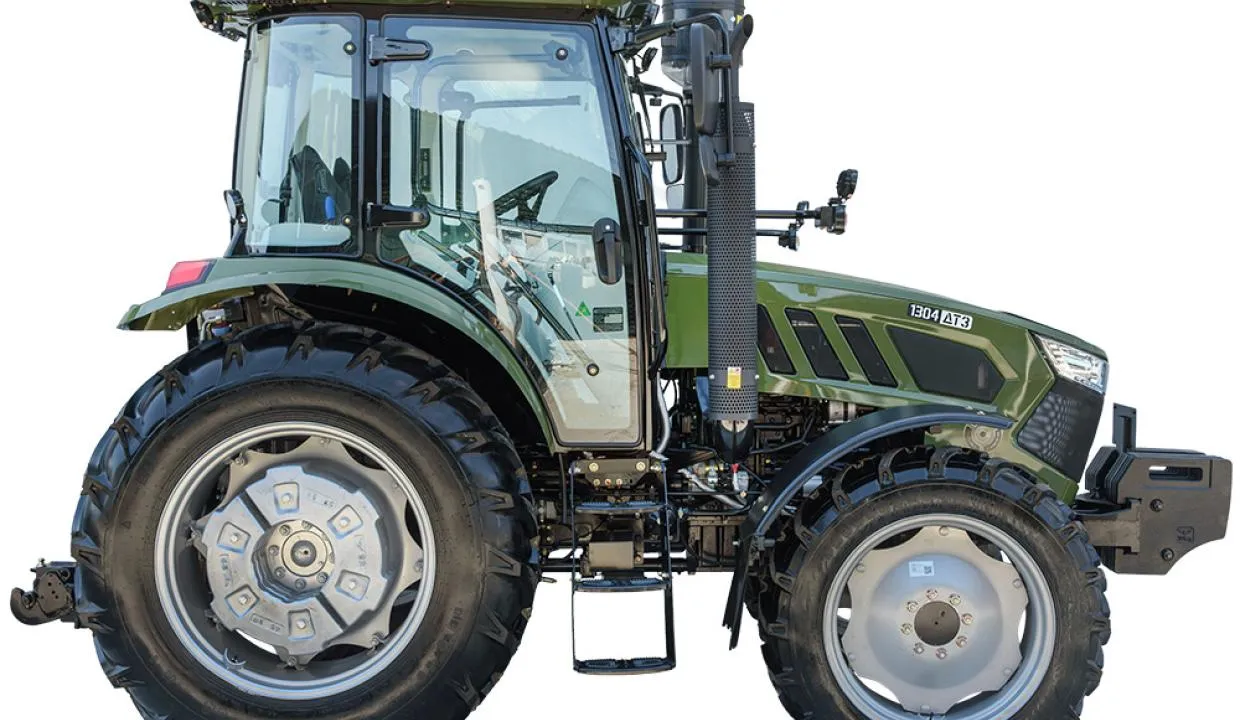

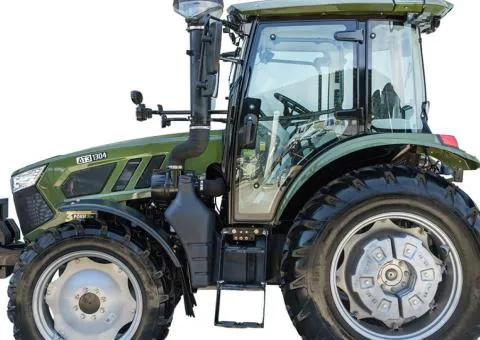

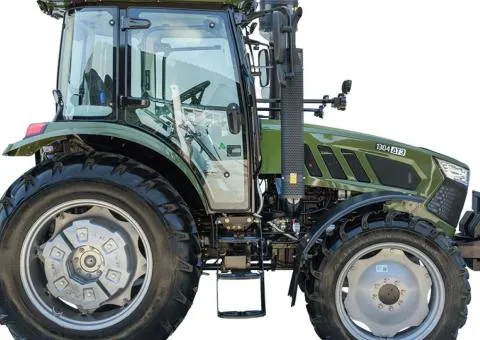

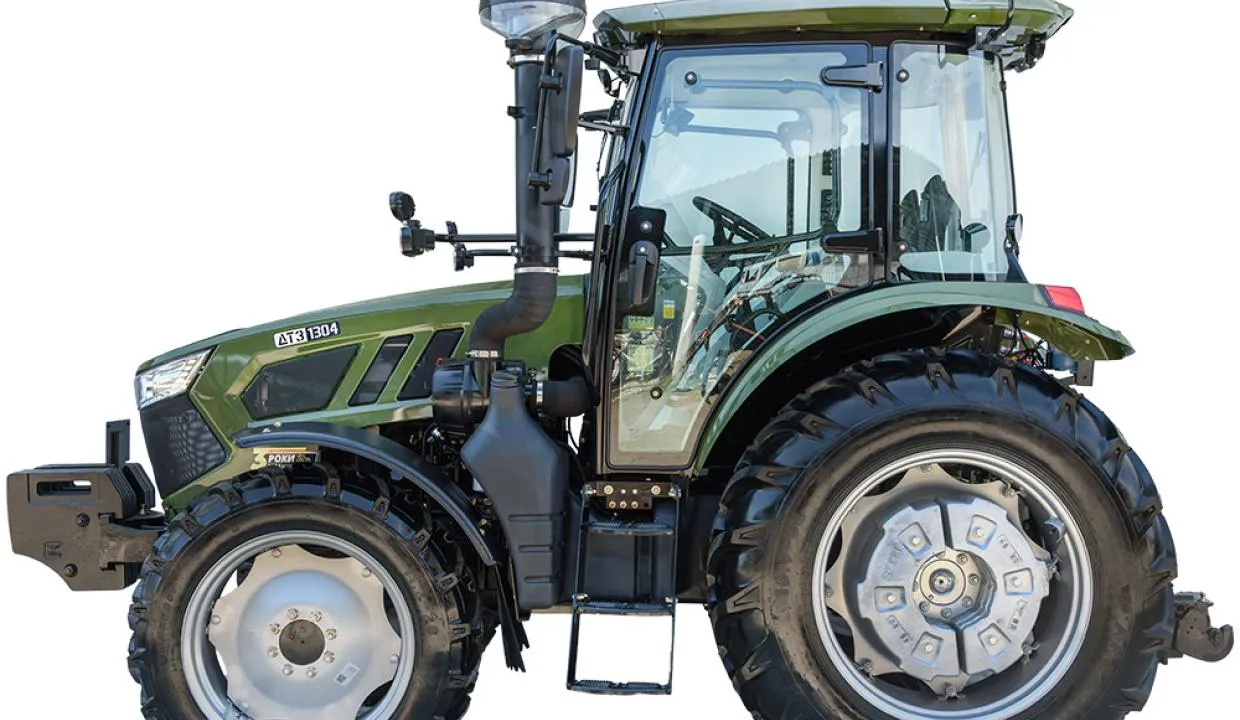

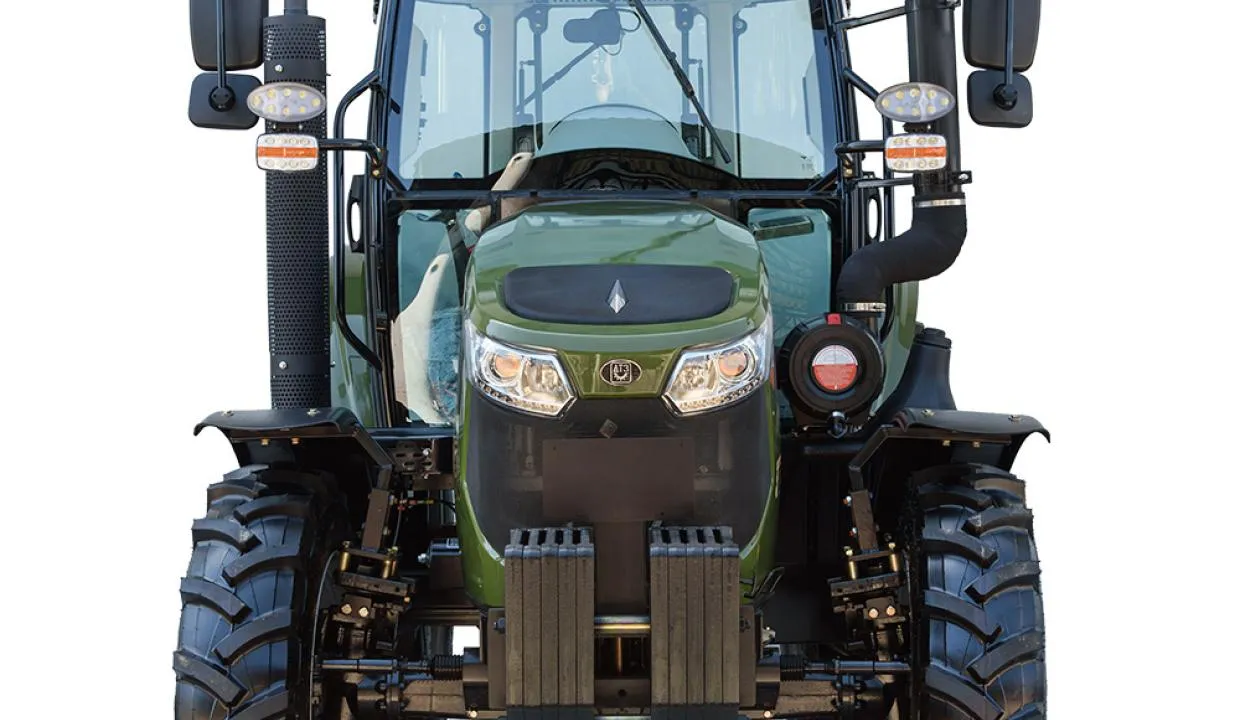

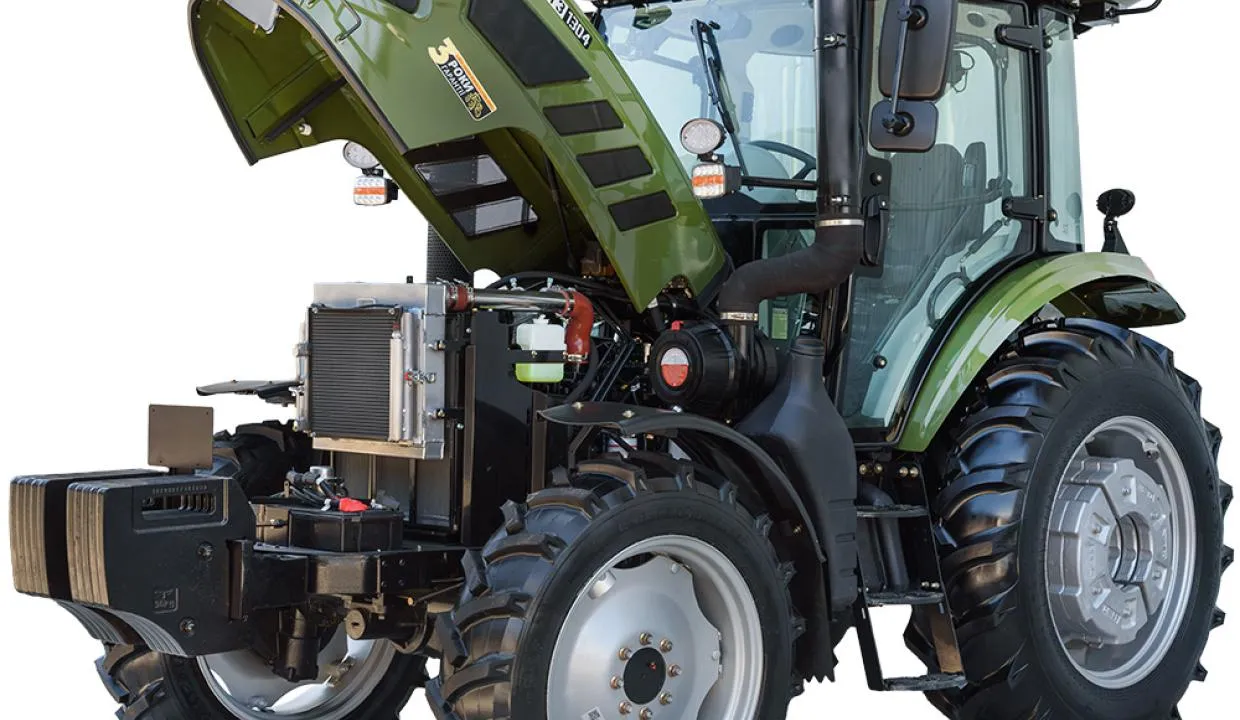

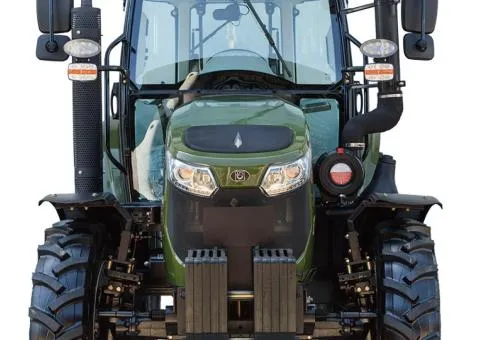

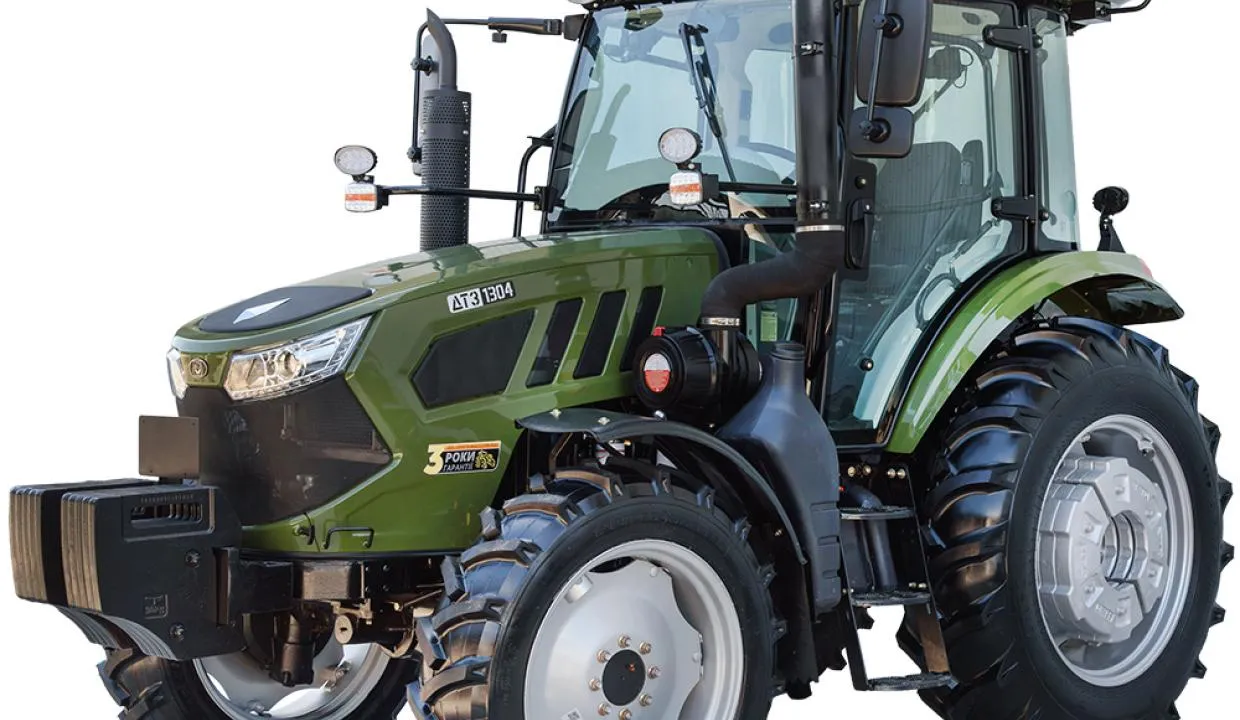

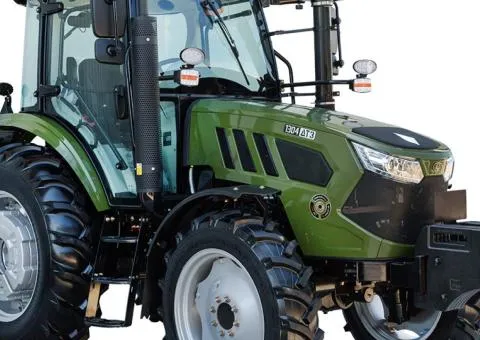

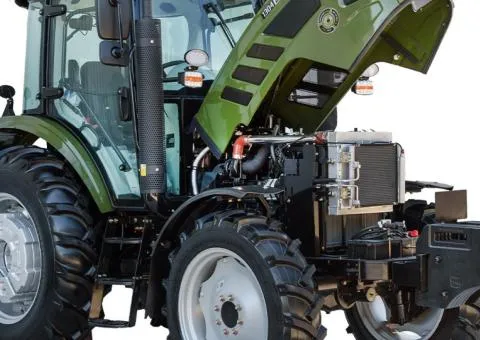

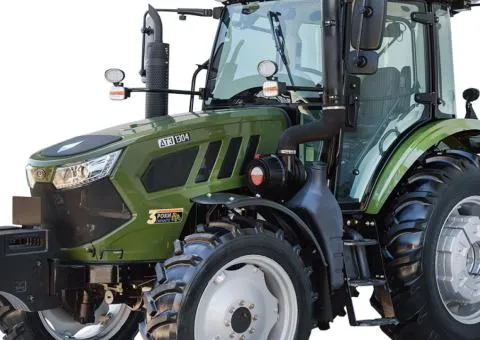

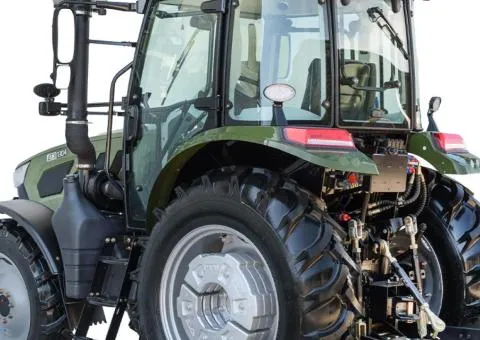

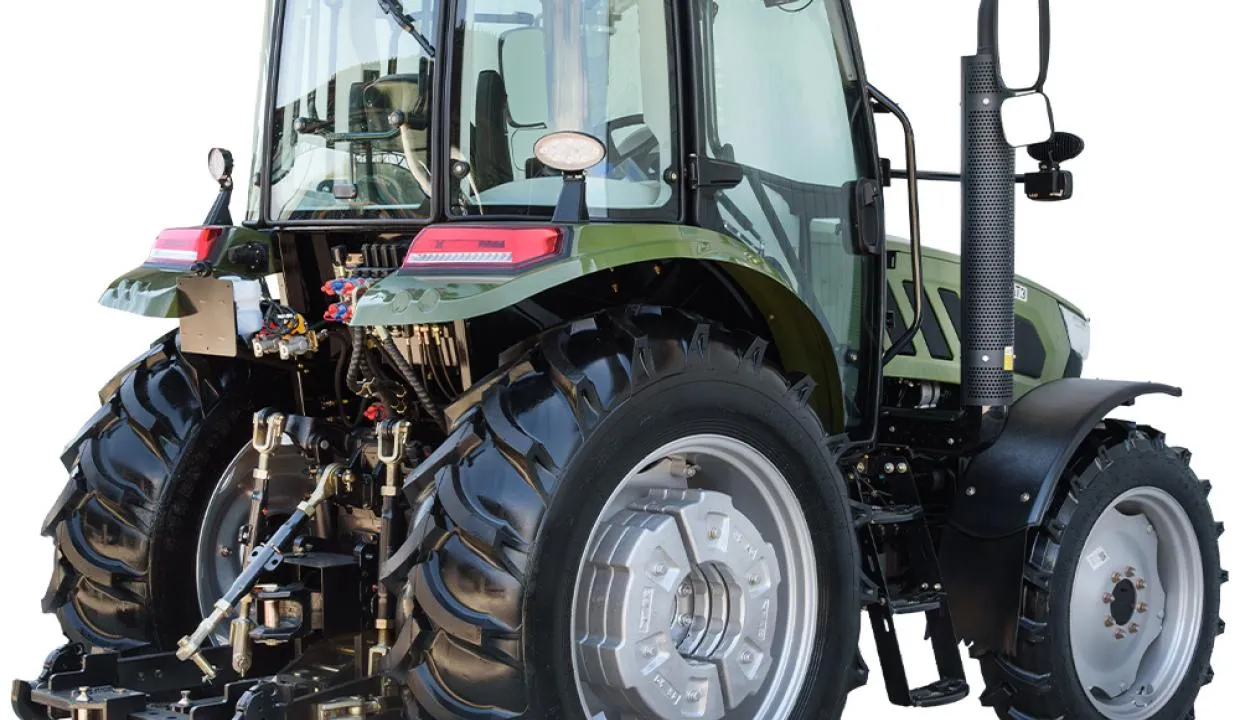

Tractor DTZ 1304

1,568,440 ₴
Tractors
1 month
Україна
Дніпро Get directions →
вул. Надії Алексєєнко, 70
82 views
Published 1 month ago by ДТЗ
1,568,440 ₴
In Tractors category
вул. Надії Алексєєнко, 70, Дніпро, Україна
Get directions →
82 item views

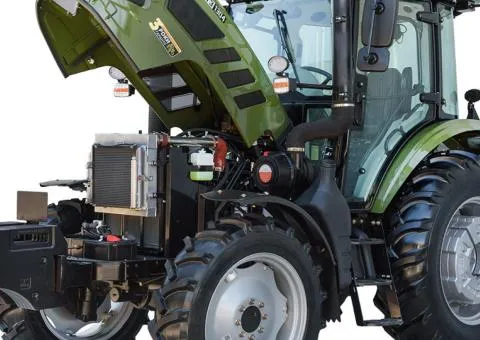

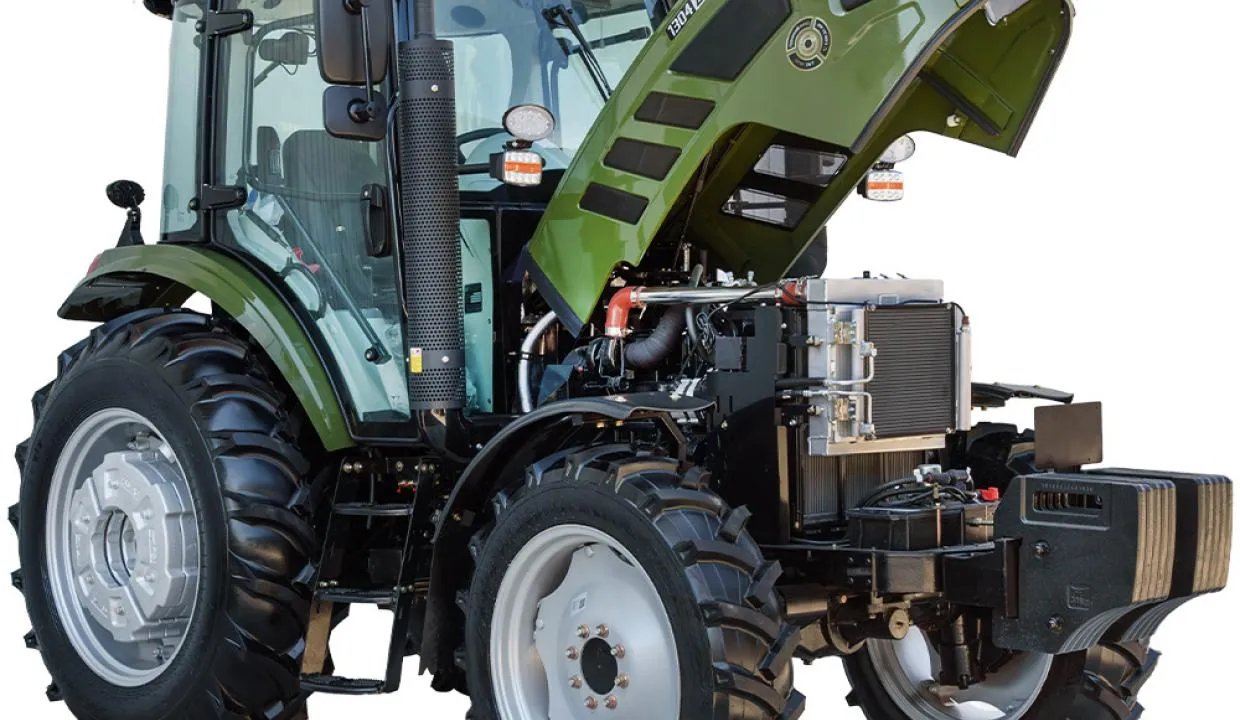

TRACTOR DTZ 1304: A NEW ERA OF COMFORTABLE POWER Do you think expanding your business without going crazy is a fantasy? Especially when new hectares appear in your assets, and 100+ hp class machinery is associated only with a sore back, eternal life under the hood, and a taste of diesel instead of morning coffee. The DTZ 1304 burst onto the scene specifically to completely shatter that outdated myth. ENGINE A 130 hp turbo diesel with 480 N·m torque provides pull from low revs. An intercooler cools the air while an actuator regulates pressure. The Bosch Common Rail system precisely meters fuel. Power can be adjusted to the task by choosing transport, light, or heavy mode. A convenient removable key adds ease, and engine start is completely safe — possible only with the clutch depressed. TRANSMISSION AND CHASSIS A synchronized gearbox (12+12) with a range reducer offers 24 speeds in both directions. Reverse and differential lock allow rapid mode changes while saving fuel. A clutch power assist relieves operator load, and hydraulic brake actuation guarantees precise stopping. At a weight of 4860 kg the tractor develops a drawbar pull of 23 kN, and a reinforced portal axle provides high ground clearance for inter-row work. THREE-POINT HITCH Rear hitch capacity 2390 kg with double-acting hydraulic cylinders and lift, neutral, lower and "float" positions. Quick implement hookup is provided by three pairs of couplings and a drain line, with each section having a "float" position. Lower links have interchangeable "ball ends" (28 and 35 mm). Two-speed PTO (640 or 1100 rpm) is controlled from the cab. The pneumatic system is equipped with a compressor and receiver, with the option to disconnect. COMFORT AND ELECTRICAL EQUIPMENT The cab mounted on rubber mounts effectively dampens vibrations, and micro-lift doors open smoothly. Full glazing with wipers is complemented by cameras with image output to the pillar. Comfort features include sound insulation and air conditioning with outside air intake. The ergonomic seat has lateral support, and machine status is shown on an animated digital panel. A diagnostic port is installed for reading faults. So, how do you like that upgrade? The DTZ 1304 received not just a fresh team of "horses" under the hood, but real features that radically ease daily field work. This giant clearly proves: pure power can now be maximally comfortable and well thought-out!

Engine model: CF5F-130T
Engine type: Diesel, 4-stroke, direct injection with turbocharger
Number and arrangement of cylinders: 4, vertical
Engine displacement, cm³: 4765
Turbocharging: Yes
Rated engine power, hp (kW): 130 (96.0)
Intake air heater: Electric glow coil
Fuel tank capacity, L: 165
Transmission type: Mechanical gear synchronized
Gear shift formula: 24+24
Main gearbox: 4 gears, neutral
Additional reduction gearboxes: First: 3 gears, neutral. Second: 2 gears, neutral
Separate reversing gearbox: Forward-neutral-backward
Clutch: Two-stage, two-disc, dry, cam type, hydraulically actuated from the travel pedal and by lever for the PTO
Steering: Hydrostatic with separate pump and separate oil tank
Wheel formula: 4×4
Brakes: Rear, oil-immersed disc, hydraulic actuation, split pedals for right and left wheel
Theoretical forward speed, km/h: 0.27-37.0
Theoretical reverse speed, km/h: 0.24-33.2
Rear axle differential lock: Mechanical
Minimum turning radius without brakes, m: 4.8
Minimum turning radius with brakes, m: 4.3
Rated drawbar pull, kN: 23
Overall dimensions (L×W×H), mm: 4500×2000×2850
Operating weight, kg: 4850
Front tyre size: 11.2-28
Rear tyre size: 16.90-34
Wheelbase, mm: 2200
Front track, mm: 1590/1712/1812
Rear track, mm: 1530/1830/1930
Agrotechnical clearance, mm: 560
Ground clearance, mm: 470
Additional front/rear weights, (units × kg): 10×30/(6×45)×2

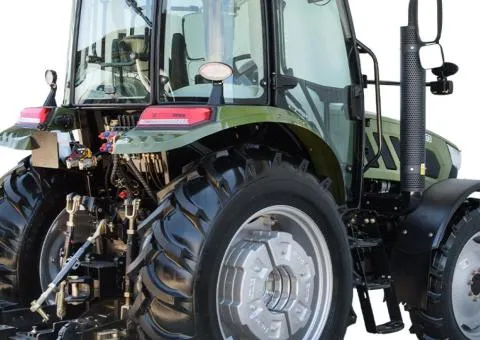

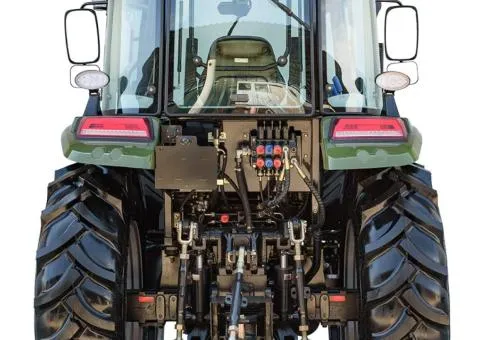

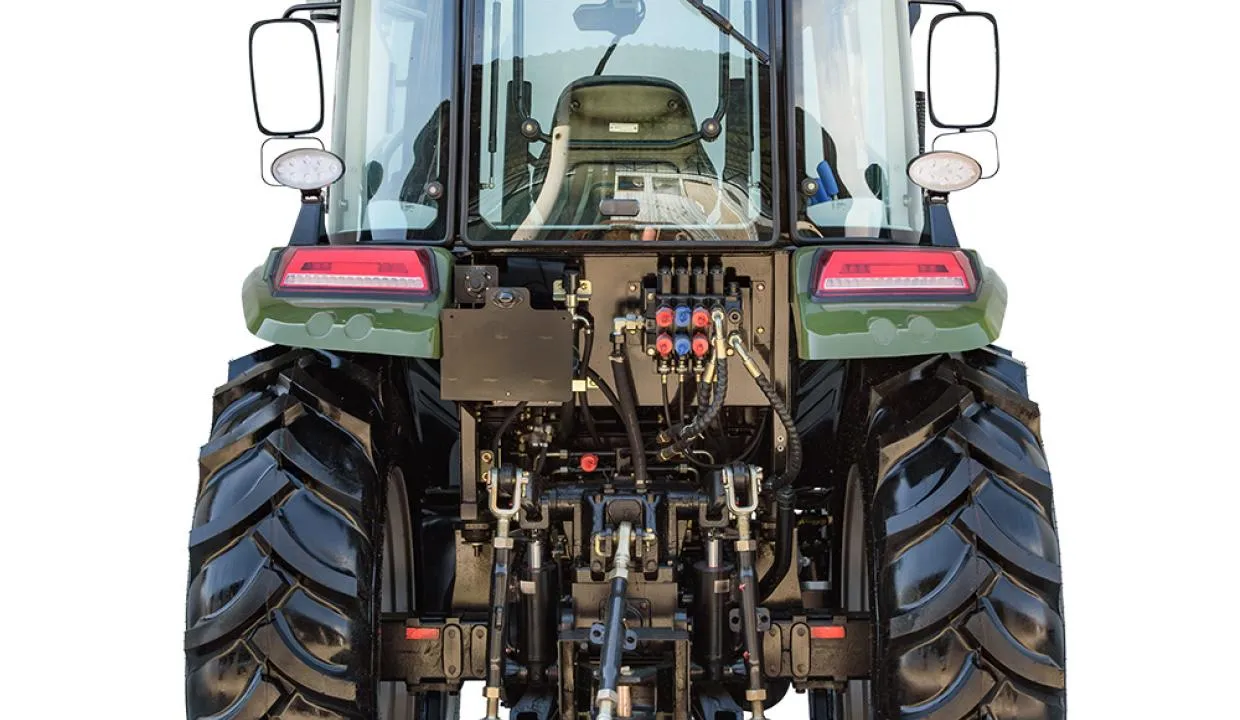

Rear hitch: Universal, 3-point
Hydraulic lift drive: External double-acting hydraulic cylinders
Maximum hitch lifting capacity, kg: 3000
Towing device: Lower swing (15 kN), upper non-swing (25 kN), crossbar device (20 kN)
PTO speeds, rpm: 540/1000
Hydraulic oil tank capacity, L: 14
Hydraulic outlets for implement connection: 3 pairs inlet/outlet (3-position control valve) and 1 drain to tank

Read more

Published on 2026/10/11. Modified on 2026/10/20.

Description

TRACTOR DTZ 1304: A NEW ERA OF COMFORTABLE POWER Do you think expanding your business without going crazy is a fantasy? Especially when new hectares appear in your assets, and 100+ hp class machinery is associated only with a sore back, eternal life under the hood, and a taste of diesel instead of morning coffee. The DTZ 1304 burst onto the scene specifically to completely shatter that outdated myth. ENGINE A 130 hp turbo diesel with 480 N·m torque provides pull from low revs. An intercooler cools the air while an actuator regulates pressure. The Bosch Common Rail system precisely meters fuel. Power can be adjusted to the task by choosing transport, light, or heavy mode. A convenient removable key adds ease, and engine start is completely safe — possible only with the clutch depressed. TRANSMISSION AND CHASSIS A synchronized gearbox (12+12) with a range reducer offers 24 speeds in both directions. Reverse and differential lock allow rapid mode changes while saving fuel. A clutch power assist relieves operator load, and hydraulic brake actuation guarantees precise stopping. At a weight of 4860 kg the tractor develops a drawbar pull of 23 kN, and a reinforced portal axle provides high ground clearance for inter-row work. THREE-POINT HITCH Rear hitch capacity 2390 kg with double-acting hydraulic cylinders and lift, neutral, lower and "float" positions. Quick implement hookup is provided by three pairs of couplings and a drain line, with each section having a "float" position. Lower links have interchangeable "ball ends" (28 and 35 mm). Two-speed PTO (640 or 1100 rpm) is controlled from the cab. The pneumatic system is equipped with a compressor and receiver, with the option to disconnect. COMFORT AND ELECTRICAL EQUIPMENT The cab mounted on rubber mounts effectively dampens vibrations, and micro-lift doors open smoothly. Full glazing with wipers is complemented by cameras with image output to the pillar. Comfort features include sound insulation and air conditioning with outside air intake. The ergonomic seat has lateral support, and machine status is shown on an animated digital panel. A diagnostic port is installed for reading faults. So, how do you like that upgrade? The DTZ 1304 received not just a fresh team of "horses" under the hood, but real features that radically ease daily field work. This giant clearly proves: pure power can now be maximally comfortable and well thought-out!

Engine model: CF5F-130T
Engine type: Diesel, 4-stroke, direct injection with turbocharger
Number and arrangement of cylinders: 4, vertical
Engine displacement, cm³: 4765
Turbocharging: Yes
Rated engine power, hp (kW): 130 (96.0)
Intake air heater: Electric glow coil
Fuel tank capacity, L: 165
Transmission type: Mechanical gear synchronized
Gear shift formula: 24+24
Main gearbox: 4 gears, neutral
Additional reduction gearboxes: First: 3 gears, neutral. Second: 2 gears, neutral
Separate reversing gearbox: Forward-neutral-backward
Clutch: Two-stage, two-disc, dry, cam type, hydraulically actuated from the travel pedal and by lever for the PTO
Steering: Hydrostatic with separate pump and separate oil tank
Wheel formula: 4×4
Brakes: Rear, oil-immersed disc, hydraulic actuation, split pedals for right and left wheel
Theoretical forward speed, km/h: 0.27-37.0
Theoretical reverse speed, km/h: 0.24-33.2
Rear axle differential lock: Mechanical
Minimum turning radius without brakes, m: 4.8
Minimum turning radius with brakes, m: 4.3
Rated drawbar pull, kN: 23
Overall dimensions (L×W×H), mm: 4500×2000×2850
Operating weight, kg: 4850
Front tyre size: 11.2-28
Rear tyre size: 16.90-34
Wheelbase, mm: 2200
Front track, mm: 1590/1712/1812
Rear track, mm: 1530/1830/1930
Agrotechnical clearance, mm: 560
Ground clearance, mm: 470
Additional front/rear weights, (units × kg): 10×30/(6×45)×2
Rear hitch: Universal, 3-point
Hydraulic lift drive: External double-acting hydraulic cylinders
Maximum hitch lifting capacity, kg: 3000
Towing device: Lower swing (15 kN), upper non-swing (25 kN), crossbar device (20 kN)
PTO speeds, rpm: 540/1000
Hydraulic oil tank capacity, L: 14
Hydraulic outlets for implement connection: 3 pairs inlet/outlet (3-position control valve) and 1 drain to tank
